Overview

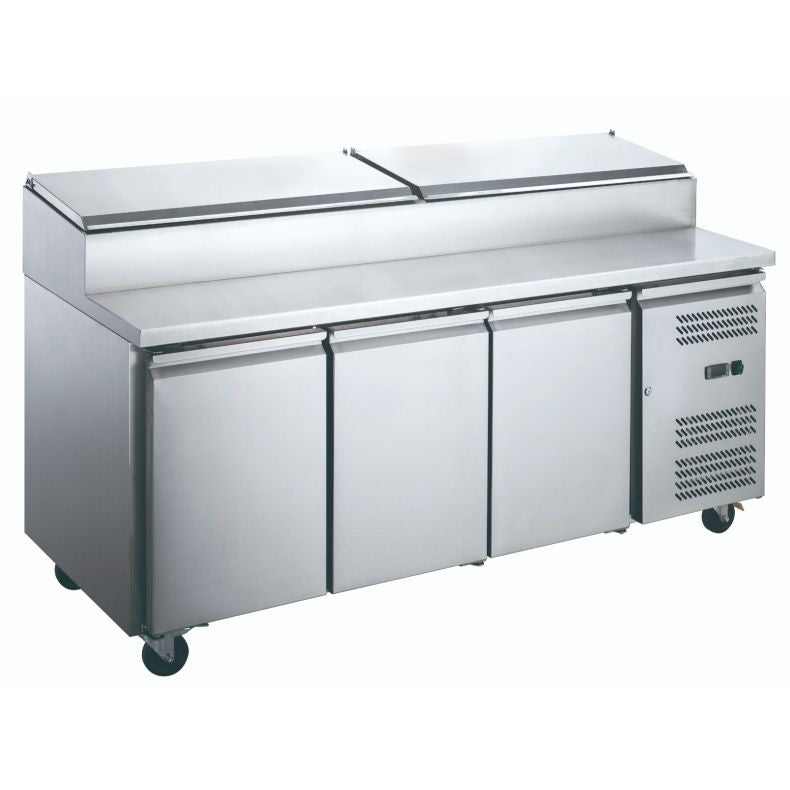

FED-X XSS7C18S3V Commercial Stainless Steel Three-Door Sandwich Preparation Counter

The FED-X XSS7C18S3V is a purpose-built commercial sandwich preparation counter designed to meet the demands of high-volume sandwich shops, salad bars, pizza bars, cafes and busy foodservice kitchens. Offering a 417L gross capacity (400L net) and a working temperature range of +2 to +8°C, the unit delivers fan-forced cooling with a rapid recovery rate that keeps ingredients consistently chilled and within arm's reach throughout service. The cabinet is tropicalised for Australian conditions, rated to a maximum ambient temperature of 43°C at 60% relative humidity, and uses environmentally responsible R290 refrigerant alongside HFC and CFC free foam insulation.

Constructed entirely from stainless steel inside and out, the counter features rounded corners that simplify cleaning and a solid stainless steel work surface on top. The refrigerated well accepts up to 8 x 1/3 GN pans to a depth of 150mm, and each of the three door sections houses a GN1/1 compatible shelf with a 40kg load rating. The display top is capable of retaining its chilled temperature for a period of four hours after pre-chilling, while optional 2 or 3 drawer configurations can replace the door sections to better suit specific prep workflows. Reliable performance is delivered by a Cubigel compressor, Dixell digital controller and EBM-PAPST evaporator and condenser fan assemblies, all backed by a comprehensive warranty.

Key Benefits

• Keeps prep ingredients chilled and immediately accessible at the work surface, reducing unnecessary movement and accelerating service during peak periods.
• Fan-forced cooling with a rapid recovery rate sustains consistent temperatures even when door sections are opened repeatedly during busy service.
• Tropicalised design supports reliable operation in Australian kitchen environments with ambient temperatures reaching 43°C, without any degradation in cooling performance.
• The refrigerated display top maintains its pre-chilled temperature for a full four-hour window, offering practical flexibility during power interruptions or short-distance transport.
• R290 refrigerant combined with HFC and CFC free foam insulation reduces environmental impact while satisfying contemporary commercial refrigeration standards.
• Hinged doors equipped with heavy-duty magnetic seals close automatically, minimising accidental temperature loss and lowering energy consumption during busy service.
• Heavy-duty castors fitted with front wheel brakes allow straightforward repositioning and provide easy access beneath the unit for thorough cleaning.
• Optional two or three drawer configurations in place of door sections let operators customise the unit to match their specific preparation workflow.
• A 40kg per shelf weight rating and GN1/1 pan compatibility deliver versatile, robust storage suited to a wide range of commercial ingredients and containers.

Key Features

• Gross volume 417L; net volume 400L
• Fan-forced cooling system with rapid temperature recovery
• Temperature range: +2 to +8°C
• Maximum ambient operating temperature: 43°C at 60% relative humidity; tropicalised for Australian conditions
• Cubigel compressor
• Dixell digital controller with user-friendly digital display
• R290 refrigerant; 60mm HFC and CFC free foam body insulation
• Stainless steel interior and exterior construction with rounded corners for easy cleaning
• Solid stainless steel work surface
• Refrigerated well compatible with 8 x 1/3 GN pans up to 150mm deep
• One shelf per door section; each shelf GN1/1 pan compatible and rated to 40kg
• Display top retains pre-chilled temperature for a four-hour period
• Three hinged self-closing doors fitted with heavy-duty magnetic seals
• Optional 2 or 3 drawer units available as an alternative to doors
• EBM-PAPST evaporator fan and condenser fan assemblies
• Heavy-duty castors with front wheel brakes for mobility and stability
• Internal dimensions: width 1234mm, depth 580mm, height 564mm
• Power: 240V, 50Hz, 10A, 320W
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 1406
• Weight (kg): 387.5
• Packed Width (mm): 1830
• Packed Depth (mm): 730
• Packed Height (mm): 1160
• Shipping Weight: 130
• No. of Doors: 3
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 320W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
