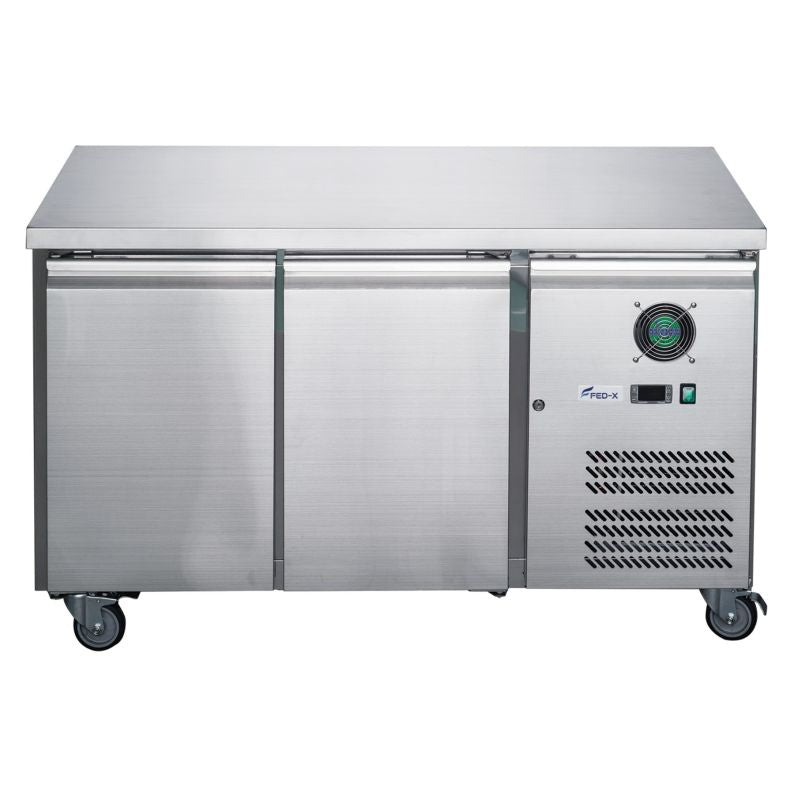

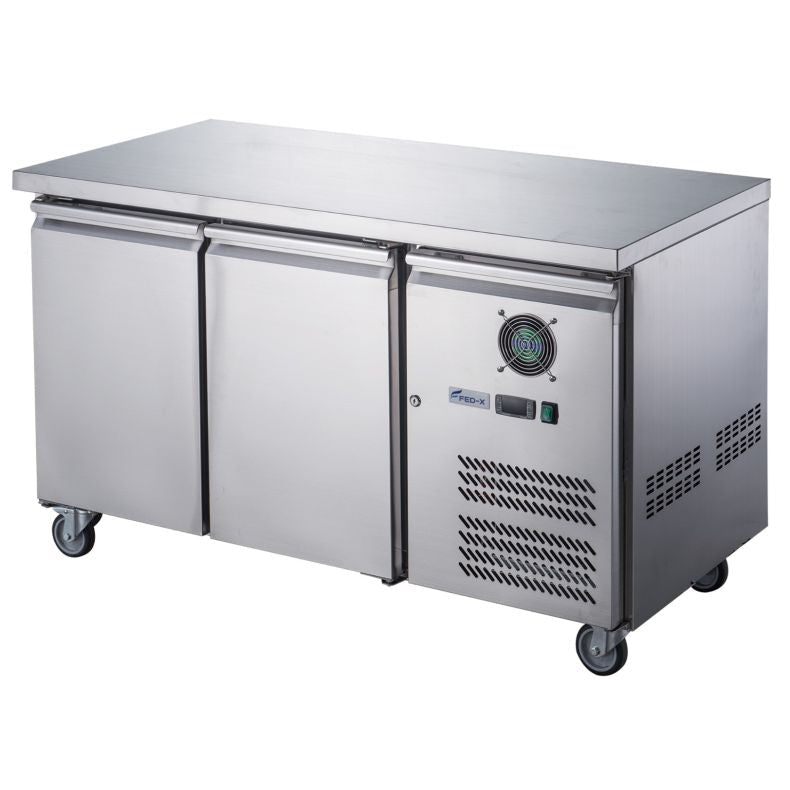

FED-X XUB6F13S2V Stainless Steel Two Door Bench Freezer

The FED-X XUB6F13S2V is a commercial two-door bench freezer finished in stainless steel inside and out, purpose-built for the demands of busy restaurant kitchens, cafes, pubs and catering operations. With a 228-litre gross capacity and a compact 600mm depth, it slots neatly under preparation benches to keep frozen ingredients within arm's reach during service, while its flat stainless-steel top provides a practical additional workspace for cutting, plating and general prep tasks.

Engineered specifically for Australian conditions, this unit is tropicalised to perform reliably in ambient temperatures up to 38°C and features a Cubigel compressor, Dixell digital controller, fan-forced cooling and eco-friendly R290 refrigerant. The 60mm HFC- and CFC-free foam insulation, rapid temperature recovery and heavy-duty evaporator and condenser fans combine to maintain a consistent -18°C to -22°C storage environment throughout even the most demanding service periods.

Key Benefits

• Underbench footprint maximises usable floor space while keeping frozen stock immediately accessible at the prep line
• Stainless-steel top surface doubles as a versatile kitchen workspace for cutting, chopping, mixing and meal assembly
• Fan-forced cooling with a rapid recovery rate restores target temperature quickly after door openings during busy service
• Tropicalised design ensures dependable performance in warm Australian kitchen environments without loss of efficiency
• Self-closing doors with magnetic seals reduce cold-air loss and the risk of doors being accidentally left open
• R290 refrigerant has a low environmental impact, supporting sustainable kitchen operations
• Auto defrost and self-evaporating drainage minimise maintenance downtime and keep the unit operating at peak efficiency
• Heavy-duty castors with front-wheel brakes allow easy repositioning for cleaning while keeping the unit stable during use
• Rear-wall installation is possible with only 100mm clearance required, making the most of tight kitchen layouts

Key Features

• Gross volume: 228 litres; net volume: 170 litres
• Temperature range: -18°C to -22°C
• Maximum ambient operating temperature: 38°C at 60% RH
• Cubigel compressor for reliable, commercial-grade refrigeration performance

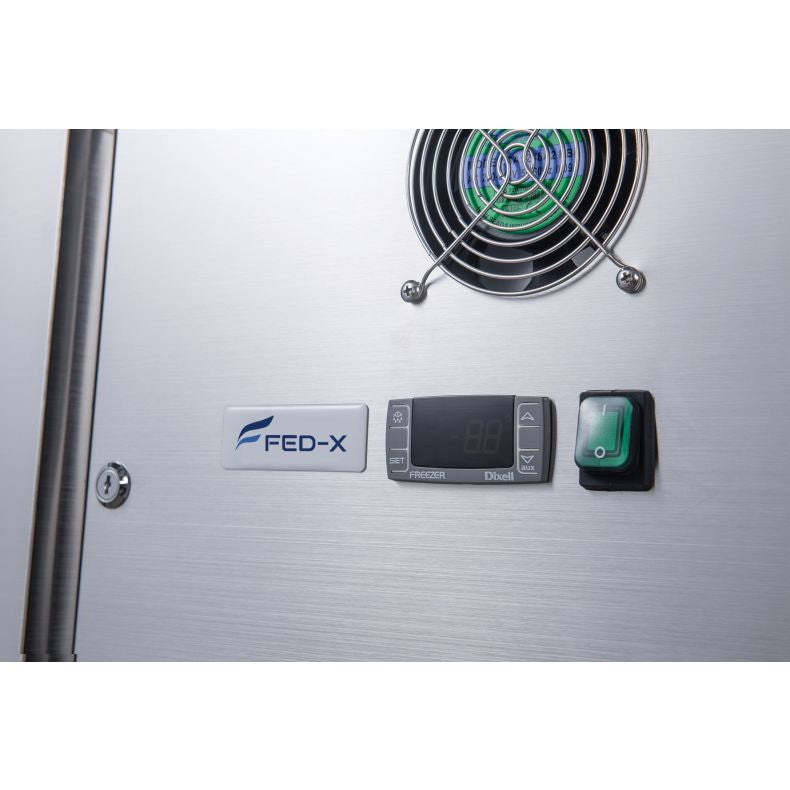

• Dixell digital controller for precise, user-friendly temperature management
• Fan-forced evaporator cooling with heavy-duty evaporator and condenser fans
• Rapid temperature recovery rate after door openings
• R290 refrigerant with low global warming potential
• Stainless-steel interior and exterior construction throughout
• Rounded internal corners for fast, thorough cleaning
• 60mm body insulation foam that is HFC- and CFC-free
• Auto defrost with self-evaporating drainage

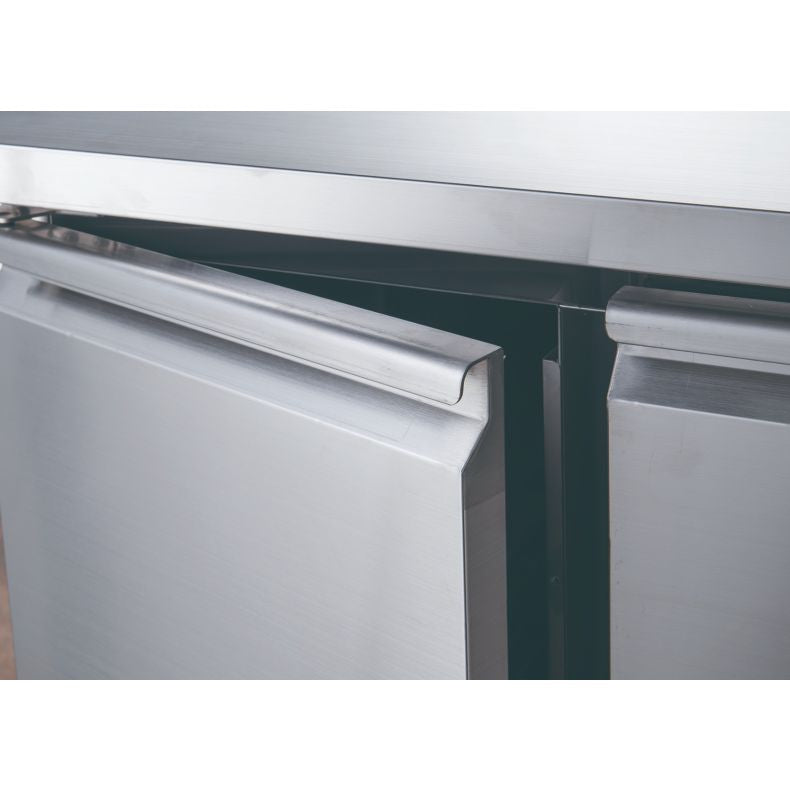

• Two self-closing doors fitted with heavy-duty magnetic door seals
• One adjustable shelf per door compartment; additional shelf sets available separately
• Weight loading capacity of 40kg per shelf
• Internal dimensions: 799mm W x 480mm D x 564mm H
• Heavy-duty castors with front-wheel brakes for mobility and stability
• Unit can be positioned directly against a wall (minimum 100mm rear clearance required for ventilation)
• Tropicalised for Australian conditions
• Power supply: 240V, 50Hz, 10A
• 2-year parts and labour warranty plus an additional 2-year parts-only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1360
• Depth (mm): 600
• Height (mm): 850
• Weight (kg): 92
• Packed Width (mm): 1390
• Packed Depth (mm): 630
• Packed Height (mm): 910
• Shipping Weight: 107
• Shipping Cubic: 0.882000000m3
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5712
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 520W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 228
