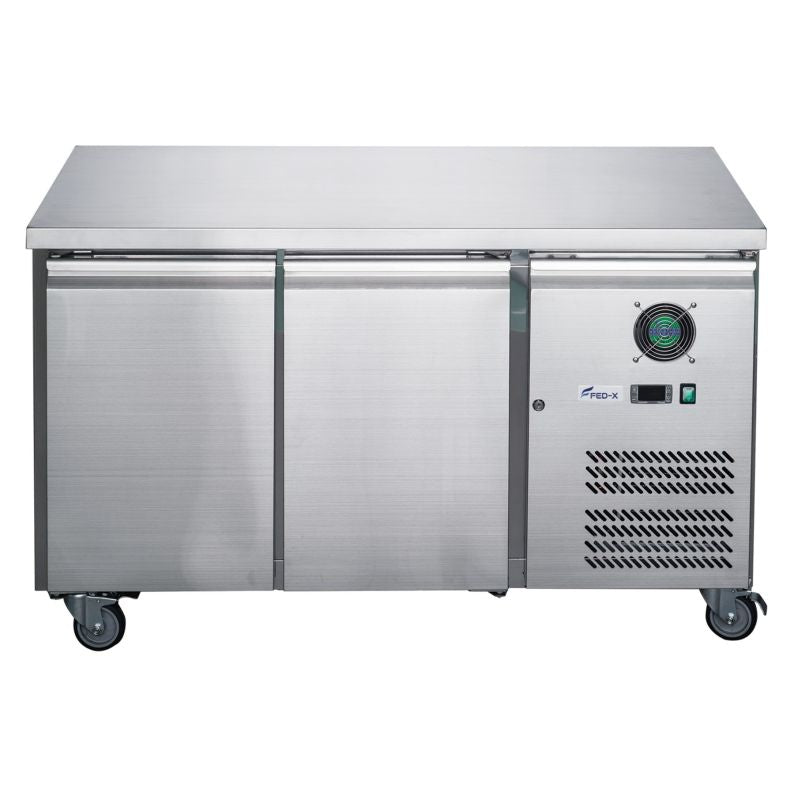

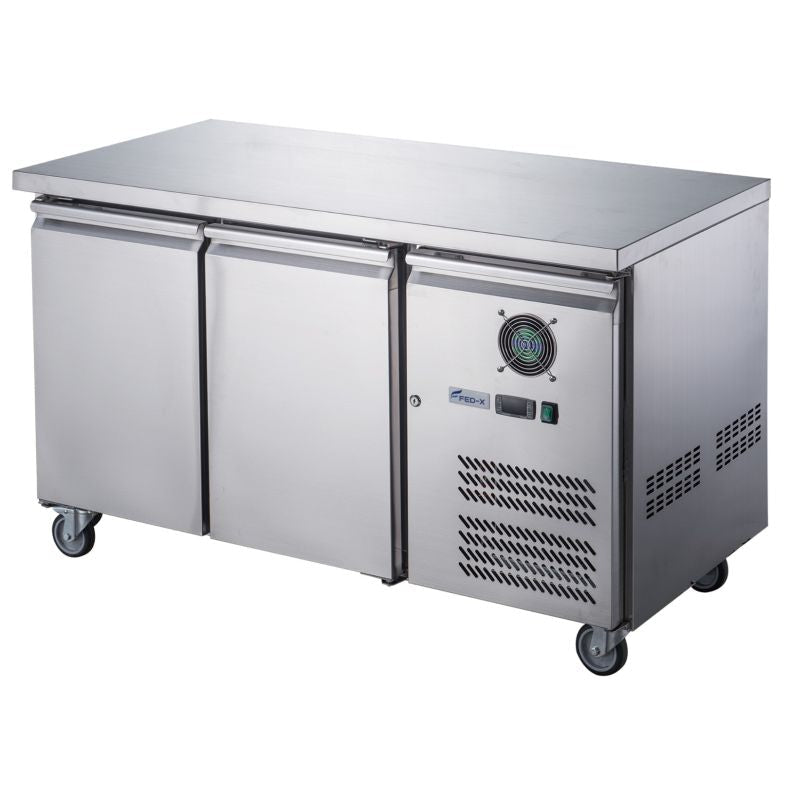

FED-X XUB7F13S2V Stainless Steel Two Door Bench Freezer

The FED-X XUB7F13S2V is a commercial two door bench freezer engineered for the demands of busy cafés, restaurants, and catering operations. Constructed from stainless steel inside and out, it delivers 282L gross capacity across two sections while its flat top surface doubles as a practical food preparation bench, making it an efficient use of floor space in tight commercial kitchen layouts.

Tropicalised for Australian conditions with a maximum ambient rating of 38°C at 60% relative humidity, this unit maintains a consistent temperature range of -18°C to -22°C using a fan-forced cooling system driven by EBM-PAPST evaporator and condenser fans. Powered by an Embraco/Secop compressor and controlled via a Dixell digital controller, it combines proven European components with eco-friendly R290 refrigerant and CFC/HCFC-free foam insulation for reliable, environmentally responsible freezing.

Key Benefits

• Stainless steel bench top provides a ready-to-use food preparation surface directly above the frozen storage, streamlining kitchen workflow.
• Fan-forced cooling with a rapid temperature recovery rate keeps frozen stock consistently at safe temperatures even during frequent door openings on a busy service.
• GN1/1 pan compatible shelving (one shelf per door section) simplifies ingredient organisation and integrates with standard commercial kitchen storage systems.
• Self-closing doors with heavy-duty magnetic seals minimise cold air loss, reducing energy consumption and helping maintain target temperatures passively.
• Heavy-duty castors with front-wheel brakes allow the unit to be repositioned easily for cleaning while staying securely in place during daily operation.
• Wall-flush installation capability, requiring only 100mm ventilation clearance, helps maximise usable floor space in compact kitchen environments.
• Optional 2 or 3-drawer configurations are available as an alternative to hinged doors, offering greater flexibility for different service and storage needs.
• 60mm foam body insulation rated HFC and CFC free supports both energy efficiency and compliance with environmental standards.
• Tropicalised design ensures dependable performance through Australian summer conditions without performance degradation.

Key Features

• Gross volume: 282L; net volume: 186L
• Temperature range: -18°C to -22°C
• Maximum ambient operating temperature: 38°C at 60% relative humidity, tropicalised for Australian conditions

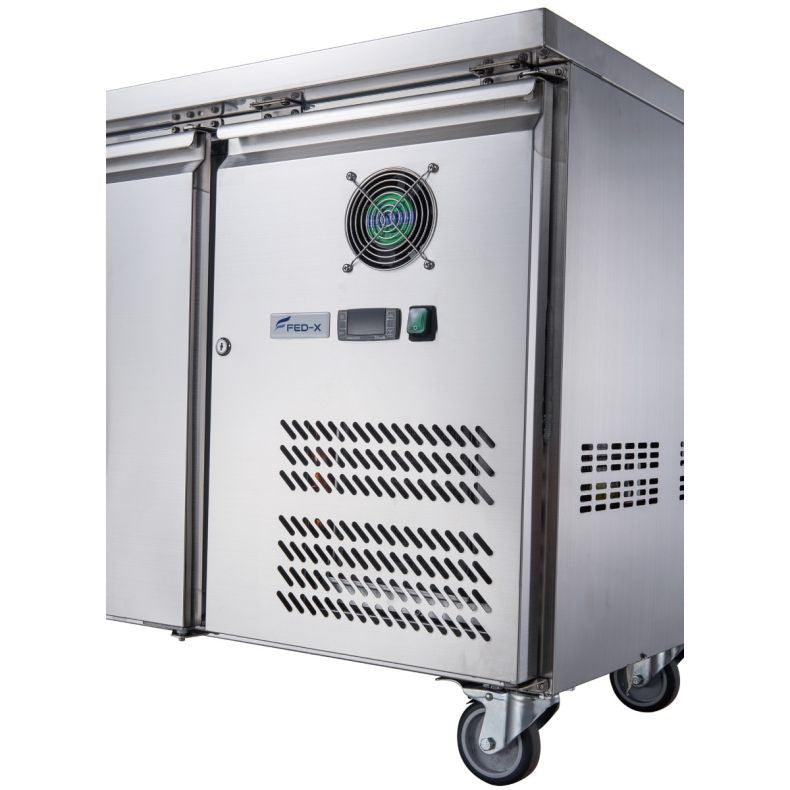

• Fan-forced cooling system with EBM-PAPST evaporator and condenser fans
• Embraco/Secop compressor for proven reliability

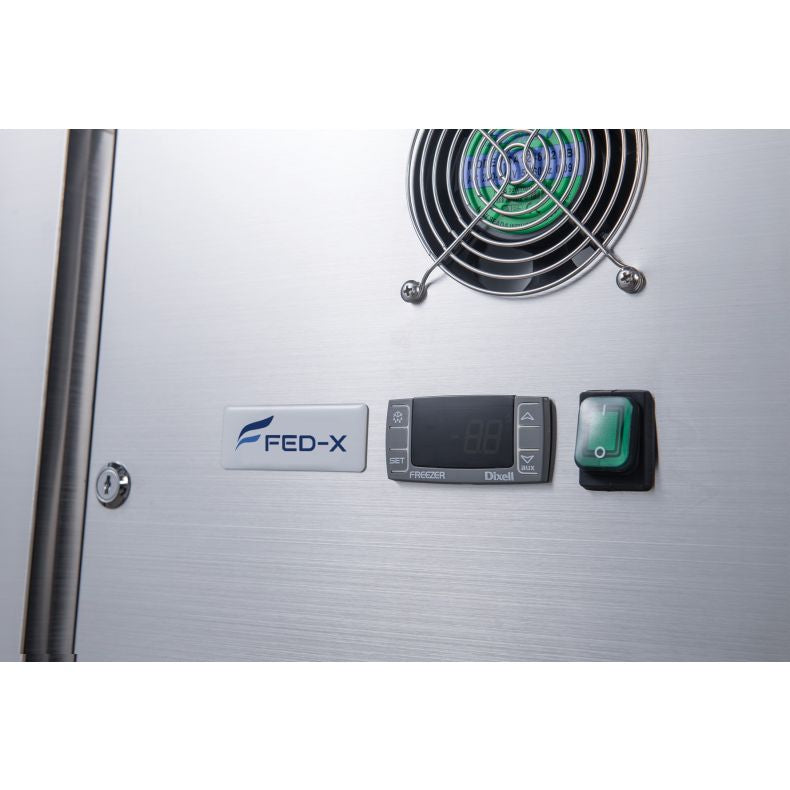

• Dixell digital controller with user-friendly interface for precise temperature management
• Refrigerant: R290 (eco-friendly, low global warming potential)
• 60mm HFC and CFC/HCFC-free foam body insulation
• Stainless steel interior and exterior construction with rounded internal corners for easy cleaning and hygiene compliance
• Flat stainless steel top surface suitable for use as a food preparation bench

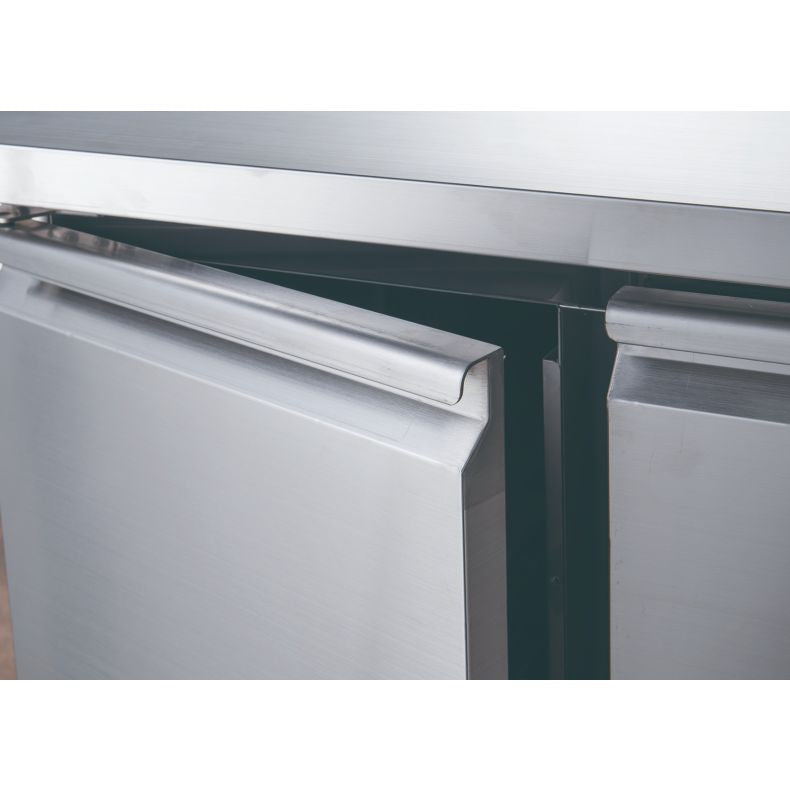

• Two hinged solid doors with self-closing mechanism and heavy-duty magnetic door seals
• One shelf per door section; each shelf rated to 40kg weight loading
• GN1/1 pan compatible shelving configuration
• Internal dimensions: 799mm W x 580mm D x 564mm H
• Heavy-duty castors with front-wheel brakes for controlled mobility
• Unit can be positioned directly against the wall (100mm ventilation clearance required)
• Optional 2-drawer or 3-drawer units available as an alternative to hinged doors
• Power supply: 240V, 520W/3.2A, requires 10A outlet
• Warranty: 2 years parts and labour plus 2 years parts only, for products registered within 14 days of invoice

Specifications

• Width (mm): 1360
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 124
• Packed Width (mm): 1390
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 107
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5712
• Cooling Type: Fan Forced
• Temperature Range: -18°C to -22°C
• Power Delivery: 240V; 520W/3.2A
• Power (kW): 240
• Power Supply: 240V, 240W, requires 10A outlet
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 282
