Overview

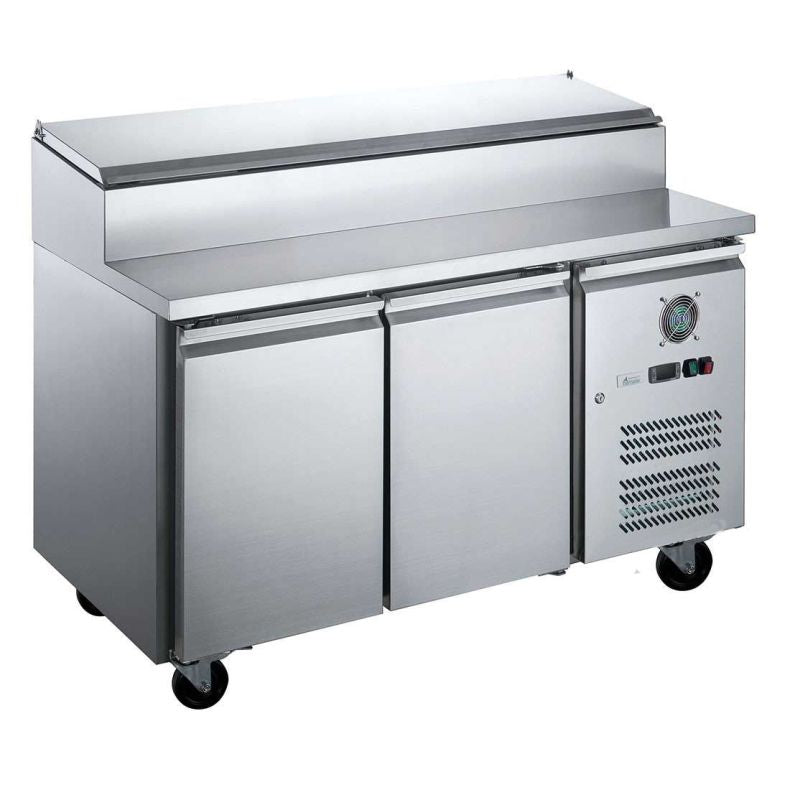

FED-X XSS8C15S2V Stainless Steel Two Door Sandwich Counter

The FED-X XSS8C15S2V is a commercial two-door refrigerated sandwich counter purpose-built for high-volume food preparation environments including cafés, sandwich bars, salad bars, pizzerias, and takeaway operations. With a 390-litre gross capacity, fan-forced cooling, and a GN-compatible chilled prep top, it delivers fast ingredient access and consistent temperature control throughout busy service periods. The unit is tropicalised for Australian conditions, rated to a maximum ambient temperature of 43°C at 60% relative humidity, making it well suited to demanding commercial kitchen environments.

Constructed from full stainless steel inside and out with rounded internal corners, the XSS8C15S2V is designed for ease of cleaning and long-term durability. The Dixell digital controller and EBM-PAPST evaporator and condenser fans maintain a precise temperature range of +2°C to +8°C, while 60mm HFC and CFC-free foam insulation supports energy efficiency. The display top retains temperature for up to four hours from a pre-chilled environment, providing added food safety assurance during power interruptions or transport. Heavy-duty castors with front wheel brakes allow easy repositioning and secure placement during service.

Key Benefits

• Tropicalised fan-forced cooling maintains a stable +2°C to +8°C temperature range even in ambient conditions up to 43°C, protecting ingredient quality during peak service.
• The chilled display top holds temperature for up to four hours from a pre-chilled state, supporting food safety compliance during brief outages or when moving the unit.
• GN-compatible prep well accepts 1/3 GN pans up to 150mm deep, enabling efficient ingredient organisation and faster assembly during high-volume service.
• Self-closing doors with heavy-duty magnetic seals minimise cold air loss, reducing compressor workload and improving overall energy efficiency.
• Each door includes one GN 1/1-compatible shelf rated to 40kg, providing structured internal storage with the flexibility to accommodate full gastronorm pans.
• EBM-PAPST evaporator and condenser fans deliver a rapid temperature recovery rate after door openings, keeping contents safely chilled throughout continuous use.
• Full stainless steel interior and exterior with rounded corners simplifies cleaning and meets commercial hygiene standards across food service environments.
• R290 refrigerant and HFC/CFC-free foam insulation reflect an environmentally responsible design with low global warming potential.
• Heavy-duty castors with front wheel brakes allow easy repositioning for cleaning or reconfiguration while keeping the unit firmly in place during operation.

Key Features

• Gross capacity: 390 litres
• Internal dimensions: 949mm W x 680mm D x 564mm H
• Temperature range: +2°C to +8°C
• Maximum ambient operating temperature: 43°C at 60% relative humidity, tropicalised for Australian conditions

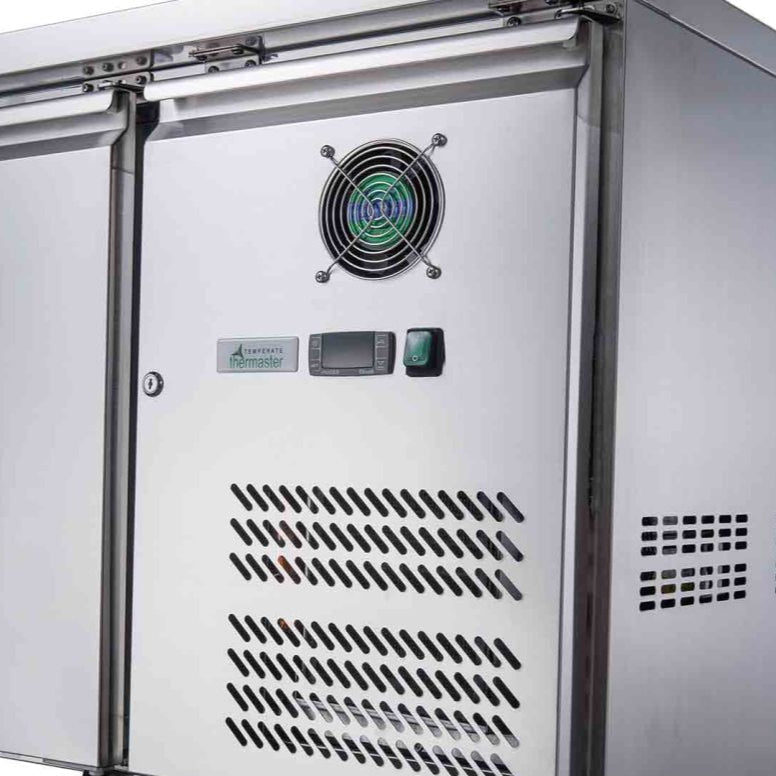

• Cooling system: fan-forced with rapid recovery rate
• Compressor: Cubigel

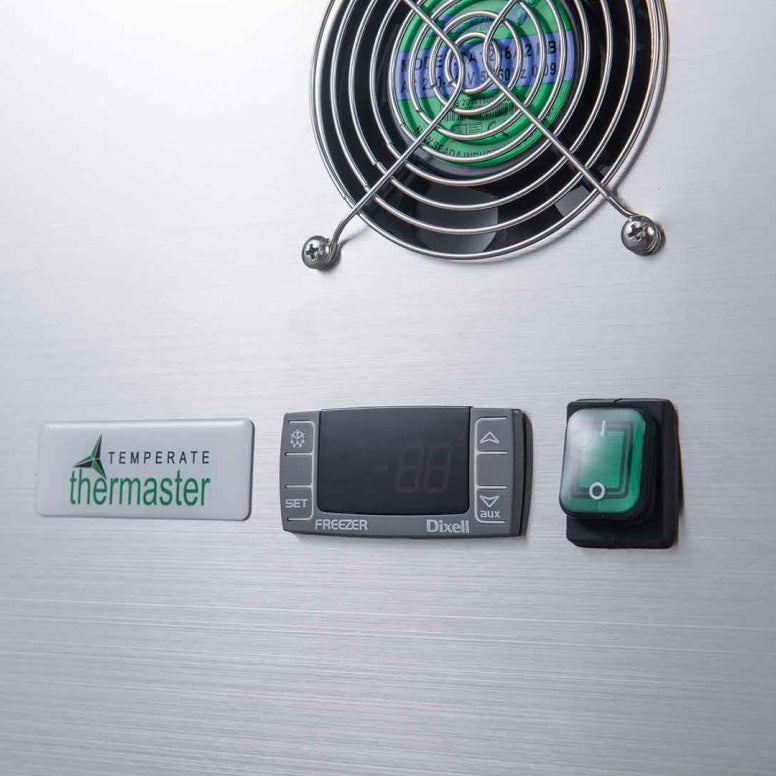

• Controller: Dixell digital with user-friendly controls and LED temperature display
• Refrigerant: R290 (low global warming potential)
• EBM-PAPST evaporator and condenser fans
• 60mm HFC and CFC-free foam body insulation
• Full stainless steel interior and exterior construction
• Rounded internal corners for easy cleaning

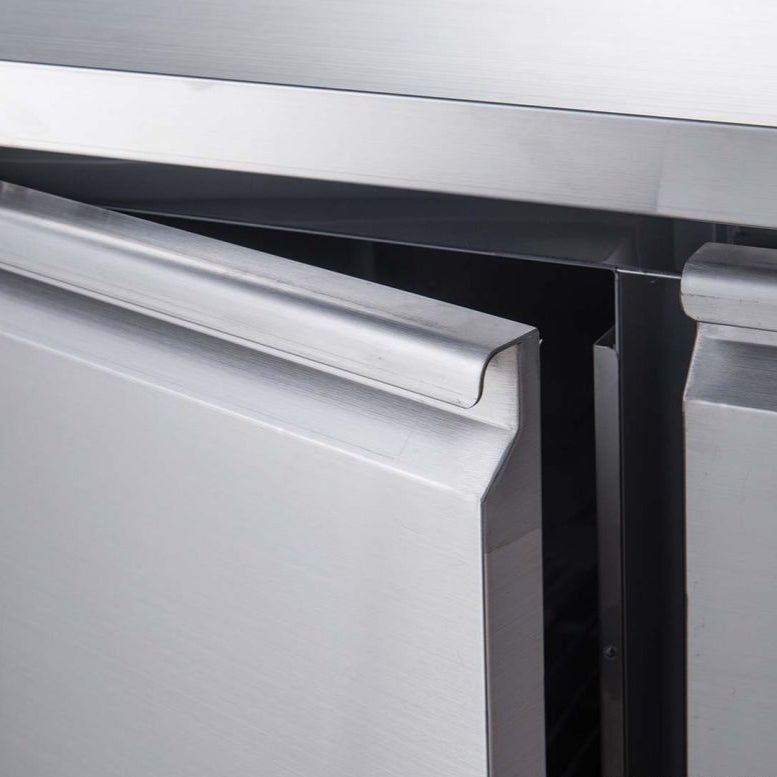

• Two hinged self-closing doors with heavy-duty magnetic door seals

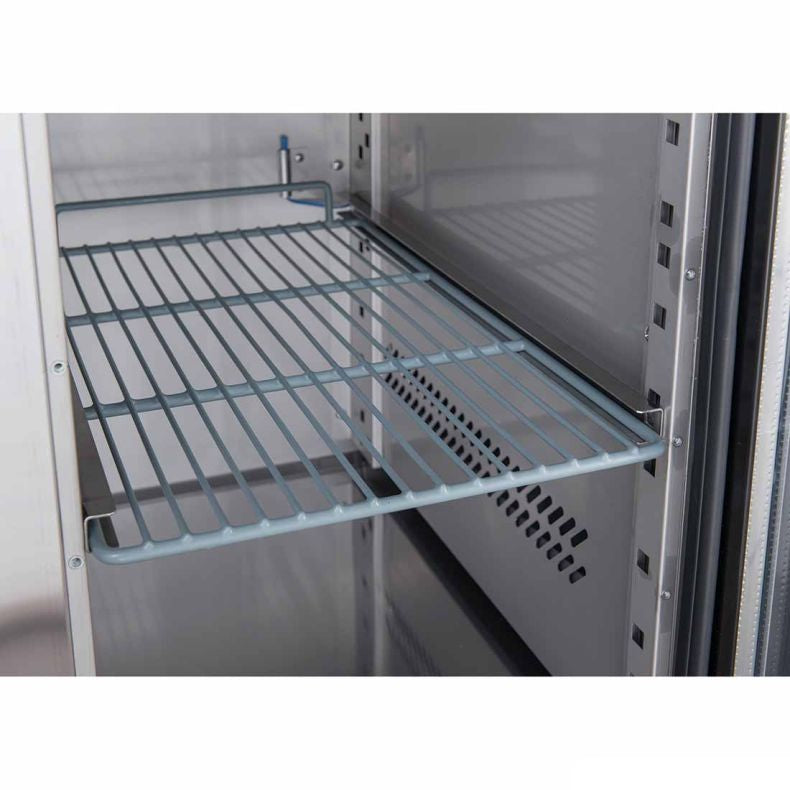

• One shelf per door, GN 1/1 pan compatible
• Weight loading per shelf: 40kg
• Chilled prep top compatible with 1/3 GN pans up to 150mm deep
• Display top retains temperature for up to four hours from a pre-chilled environment

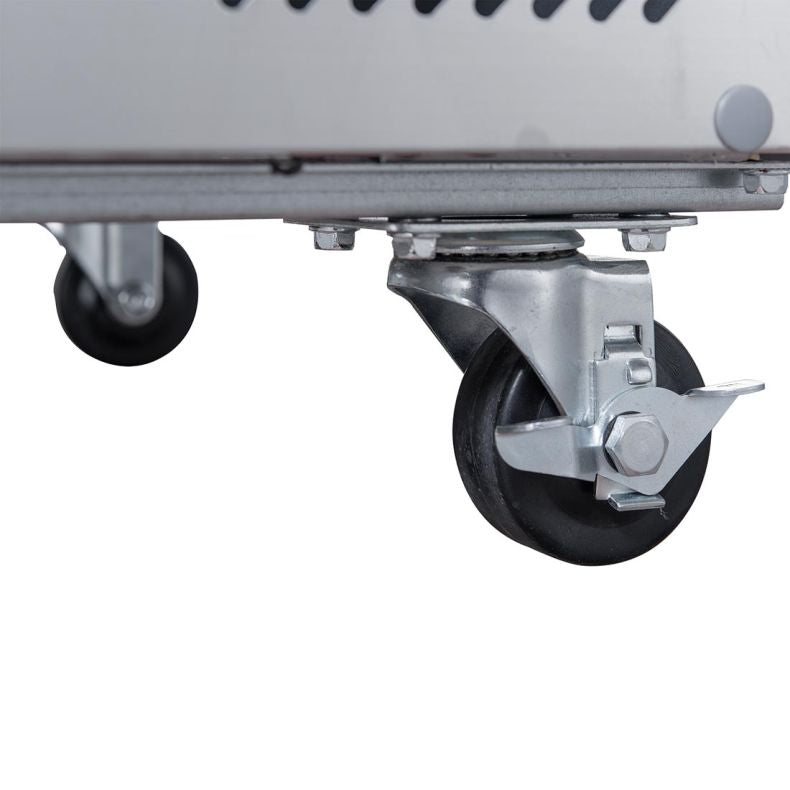

• Heavy-duty castors with front wheel brakes for mobility and secure positioning
• Power supply: 240V, 50Hz, 10A, 320W
• External dimensions: 1510mm W x 800mm D x 1406mm H
• 2 Years Parts and Labour plus 2 Years Parts Only warranty with product registration within 14 days of invoice

Specifications

• Width (mm): 1510
• Depth (mm): 800
• Height (mm): 1406
• Weight (kg): 370.75
• Packed Width (mm): 1540
• Packed Depth (mm): 830
• Packed Height (mm): 1160
• Shipping Weight: 120
• Shipping Cubic: 1.680000000m3
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 50V; 10A; 320W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
