Overview

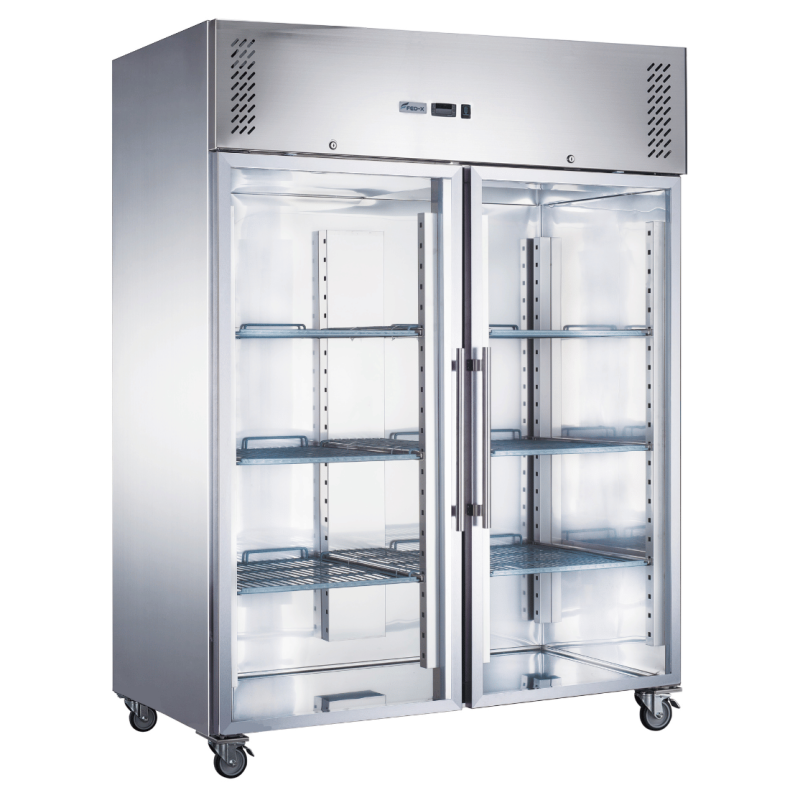

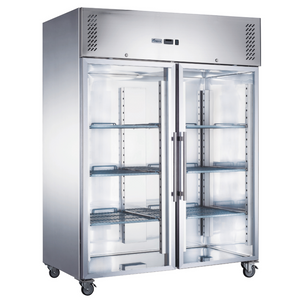

FED-X XURF1200G2V Stainless Steel Two Full Glass Door Upright Display Freezer 1200L

The FED-X XURF1200G2V is a large-capacity commercial upright display freezer featuring two full glass doors that let customers and staff view frozen stock without opening the cabinet. With a gross volume of 1236L and net volume of 791L, it suits high-volume commercial kitchens, restaurants, cafes, and retail environments where both product presentation and reliable freezing performance are priorities.

Built entirely from stainless steel inside and out, with rounded interior corners for fast and thorough cleaning, this unit combines robust construction with practical daily operation. Fan-forced cooling, a Dixell digital controller, R290 refrigerant, auto defrost, internal LED lighting, and a heated door frame work together to keep frozen product safe and visually appealing around the clock.

Key Benefits

• Full glass doors allow instant stock visibility, reducing door-open time and supporting impulse purchase decisions without sacrificing temperature integrity.
• Fan-forced cooling distributes cold air evenly throughout the entire cabinet, eliminating warm spots and keeping all stored product consistently within the required temperature range.
• R290 refrigerant and HFC/CFC-free foam body insulation make the unit more environmentally responsible and contribute to lower long-term operating costs.
• The Dixell digital controller provides precise temperature management, making it straightforward for staff to monitor and adjust settings quickly.
• Self-closing lockable doors with heavy-duty magnetic seals minimise energy loss and provide security for high-value frozen stock.
• Automatic defrost and a self-evaporating drainage system reduce maintenance demands and operator downtime, keeping the unit running with minimal intervention.
• Shelving sized to hold 2 x 1/1 GN pans per level, with three adjustable shelf levels plus the base, allows flexible organisation suited to standard commercial kitchen containers.
• Heavy-duty castors with front wheel brakes make repositioning straightforward during kitchen reconfiguration or cleaning, while the front brakes hold the unit firmly in place during service.
• A four-year warranty package (two years parts and labour plus two years parts only, with registration within 14 days of invoice) provides strong after-purchase protection for a commercial investment.

Key Features

• Gross volume 1236L; net volume 791L; net capacity 1200L
• Stainless steel interior and exterior construction throughout
• Rounded internal corners for fast, thorough cleaning and improved hygiene compliance
• Two full glass doors with double-glazed panels for clear product display and thermal efficiency
• Self-closing lockable doors with heavy-duty magnetic door seals
• Heated door frame to prevent condensation and ice build-up around the door seal
• Fan-forced cooling system with heavy-duty evaporator and condenser fans for uniform temperature distribution
• Temperature range: -15°C to -18°C, digitally controlled
• Maximum ambient operating temperature: 38°C at 60% relative humidity

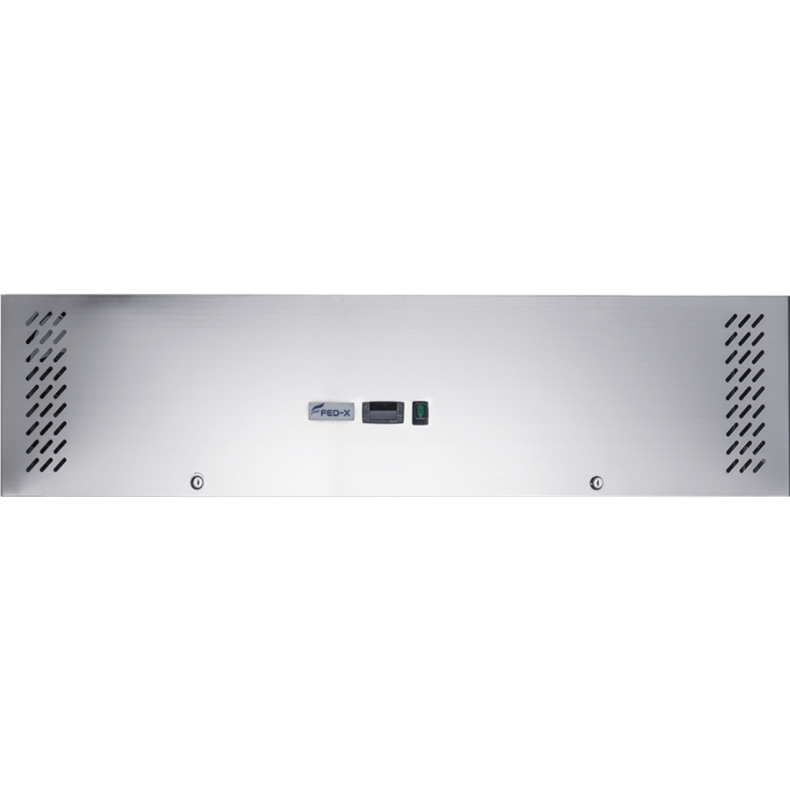

• Dixell digital temperature controller with user-friendly interface
• Cubigel compressor
• R290 refrigerant (HFC and CFC free)
• HFC and CFC-free foam body insulation for improved environmental performance
• Internal LED lighting for attractive product presentation and low energy consumption
• Automatic defrost system to prevent ice build-up and maintain efficiency
• Self-evaporating drainage system reduces manual maintenance

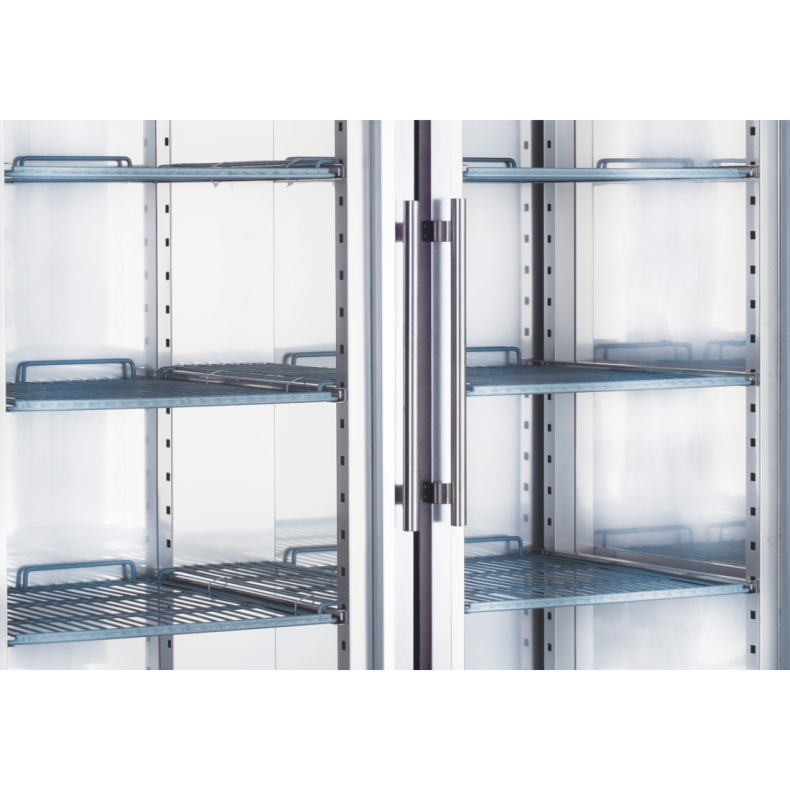

• Three levels of shelving plus the base, providing four usable storage tiers
• Each shelf and shelf support accommodates 2 x 1/1 GN pans
• Weight loading capacity per shelf: 40kg
• Internal dimensions: 1224mm W x 682mm D x 1394mm H

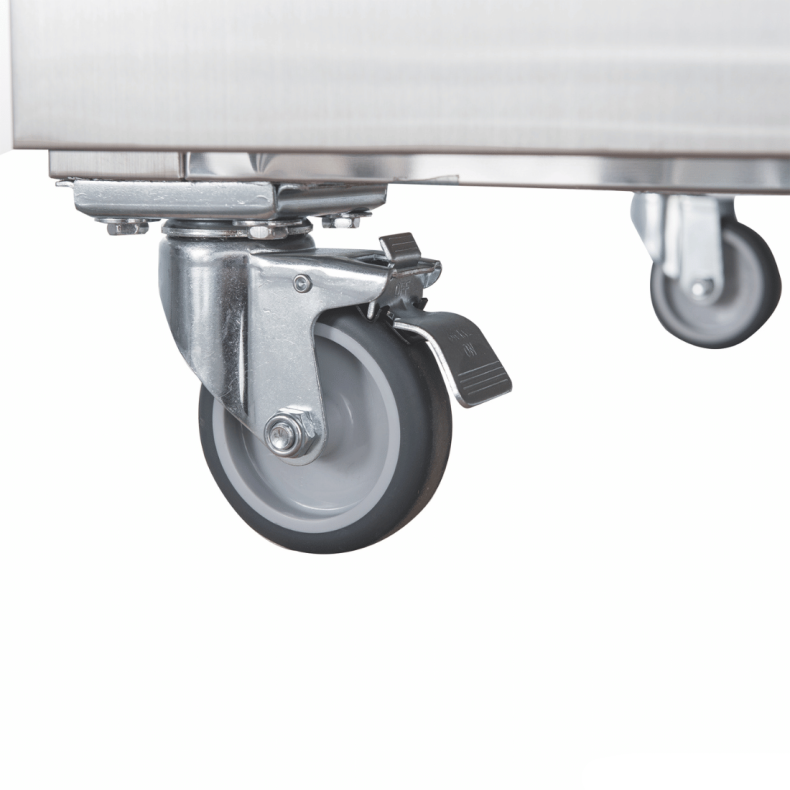

• Heavy-duty castors with front wheel brakes for safe mobility and stable positioning
• Power supply: 240V, 50Hz, 10A, 700W
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1340
• Depth (mm): 840
• Height (mm): 2000
• Weight (kg): 604
• Packed Width (mm): 1365
• Packed Depth (mm): 855
• Packed Height (mm): 2070
• Shipping Weight: 167
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5712
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Temperature Range: -18°C to -22°C (digitally controlled)
• Power Delivery: 240V; 50V; 10A; 700W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 1200
