Overview

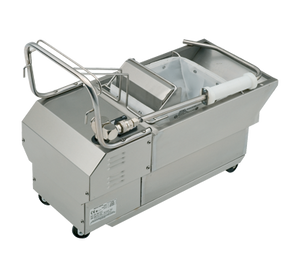

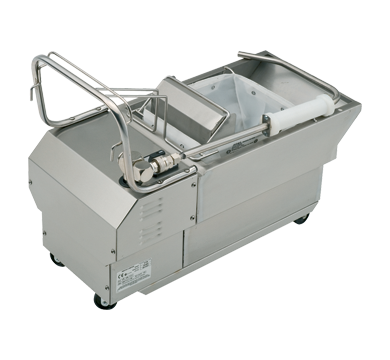

Waldorf FF8130E 800 Series Filtamax Fryer Filter

The Waldorf FF8130E Filtamax Fryer Filter is a purpose-built oil filtration unit from the Waldorf 800 Series, designed to extend the life of frying oil and maintain consistent food quality in high-volume commercial kitchens. Constructed entirely from stainless steel, it combines a powerful reversible pump with a reusable filter bag system and a compact footprint that fits beneath compatible Waldorf fryer models.

Engineered for ease of use and minimal downtime, the FF8130E features a four-castor base for straightforward positioning, a rigid oil delivery tube with a heavy-duty heat-resistant handle for safe oil transfer, and a simple Off/Forward/Reverse pump control. An upgrade kit for carbon pad filtering is also available, providing operators with additional oil-polishing capability when required.

Key Benefits

• Extends frying oil life by efficiently removing food particles and contaminants, reducing oil replacement costs over time.
• Reversible pump allows both extraction and return of filtered oil to the fryer tank in a single unit, streamlining the filtration process.
• Reusable filter bag reduces consumable costs compared to disposable filter systems, with a carbon pad upgrade kit available for deeper filtration.
• Four-castor base with two fixed and two swivel castors makes it easy to manoeuvre between fryers or into storage, saving space during off-peak periods.
• Rigid return delivery tube and insulated handle allow safe, controlled transfer of hot oil with reduced risk of spills or burns.
• Full stainless steel construction withstands the harsh, high-temperature environment of a commercial kitchen and simplifies cleaning.
• Compact cord storage keeps the workspace tidy and reduces trip hazards during busy service.
• Compatible with Waldorf FN8120G/GE and FN8226G/GE fryer models, making it a natural pairing for existing Waldorf kitchen setups.

Key Features

• 20-litre oil capacity suitable for commercial fryer filtration workflows
• 1/3 HP motor with heavy-duty reversible pump for both oil extraction and return
• Full stainless steel construction throughout
• Reusable 'easy clean' filter bags included
• Optional upgrade kit available for carbon pad filtering
• Mounted on two fixed and two swivel castors for easy repositioning
• Rigid return delivery tube for safe and efficient transfer of oil back to the fryer tank
• Heavy-duty heat-resistant insulated handle fitted to the oil delivery tube
• Heavy-duty stainless steel handle
• Heavy-duty motor switch
• Off/Forward/Reverse pump control for simple one-handed operation
• Cord set fitted with integrated cord storage
• Electrical requirements: 0.77 kW, 220-240 V AC, 50 Hz, 1P+N+E, 3.2 A, 3-pin 10 A plug
• Compatible with Waldorf FN8120G/GE and FN8226G/GE fryer models
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 324
• Depth (mm): 683
• Height (mm): 562
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 51
• Packed Width (mm): 700.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 400.0
• Shipping Cubic: 0.168000000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 20
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Display Type: Analog
