Overview

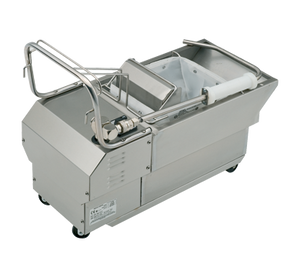

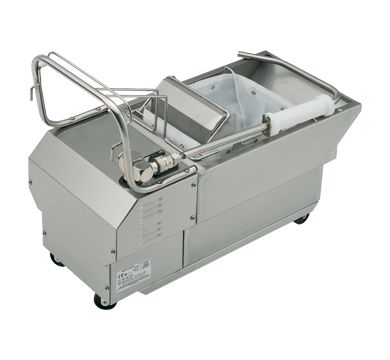

Waldorf FF8135E 800 Series Filtamax Fryer Filter 30L

The Waldorf FF8135E Filtamax Fryer Filter is a purpose-built oil filtration unit from the 800 Series range, designed to extend the life of frying oil and maintain consistent food quality in busy commercial kitchens. With a 30-litre capacity and a powerful reversible 1/3 HP heavy-duty pump, it efficiently transfers, filters, and returns oil or shortening to fryer tanks with minimal effort and maximum safety.

Constructed entirely from stainless steel and mounted on two fixed and two swivel castors for easy manoeuvrability, this unit is engineered for straightforward cleaning, servicing, and day-to-day operation. Reusable filter bags are standard, with an optional upgrade kit available for carbon pad filtering, giving kitchens flexibility in their oil management approach.

Key Benefits

• Extending oil life through regular filtration reduces cooking oil costs and helps maintain consistent fried food quality.
• The reversible pump allows oil to be drawn from and returned to the fryer tank, streamlining the entire filtration process from a single unit.
• Four-castor mobility (two fixed, two swivel) makes it easy to move between fryer stations without awkward lifting or repositioning.
• Reusable filter bags lower ongoing consumable costs compared to single-use alternatives, and an upgrade kit enables carbon pad filtering for finer oil purification.
• The rigid return delivery tube with a heavy-duty heat-resistant handle allows safe, controlled transfer of hot oil back into the fryer, reducing burn risk for operators.
• An Off/Forward/Reverse pump control switch gives operators precise, simple command over oil flow direction at all times.
• Cord storage keeps the workspace tidy and reduces trip hazards during and after use.
• Full stainless steel construction withstands the harsh, high-temperature environment of commercial frying operations and simplifies routine cleaning.

Key Features

• 30-litre oil capacity suitable for use with commercial fryer banks
• 1/3 HP motor with reversible, heavy-duty pump for drawing and returning oil
• Off/Forward/Reverse pump control switch for simple, precise operation
• Heavy-duty motor switch for reliable on/off control
• Rigid return delivery tube for safe and efficient transfer of hot oil and shortening back to the fryer tank
• Heavy-duty heat-resistant handle fitted to the oil delivery tube
• Reusable easy-clean filter bags included as standard
• Optional upgrade kit available for carbon pad filtering
• Full stainless steel construction throughout
• Heavy-duty stainless steel handle
• Mounted on two fixed and two swivel castors for manoeuvrable, space-saving use
• Cord set fitted with integrated cord storage
• Electrical requirements: 0.77 kW, 220-240 V AC, 50 Hz, 1P+N+E, 3.2 A, 3-pin 10 A plug
• Compatible with Waldorf FN8130G and FN8130G HPO Series fryers
• Country of origin: New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 324
• Depth (mm): 735
• Height (mm): 562
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 53
• Packed Width (mm): 800.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 400.0
• Shipping Cubic: 0.192000000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 30
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Display Type: Analog
