Overview

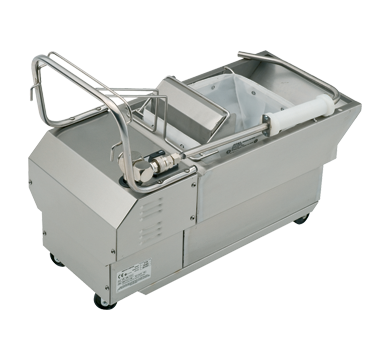

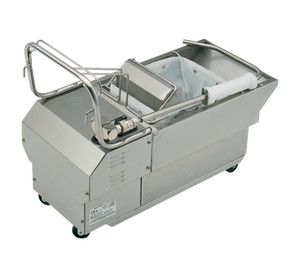

Waldorf FF8140E 800 Series Filtamax Fryer Filter

The Waldorf FF8140E is a 40-litre capacity fryer filter unit from the 800 Series, purpose-built to extend oil life and maintain frying quality in busy commercial kitchens. Constructed entirely from stainless steel, this mobile filtration unit connects directly to commercial fryers, drawing used oil through a reusable filter bag and returning clean oil via a rigid delivery tube — keeping fryer tanks productive and reducing oil costs.

Powered by a 1/3 HP reversible heavy-duty pump, the FF8140E offers forward and reverse operation for thorough oil recovery and easy clearing. The unit rolls conveniently on two fixed and two swivel castors for manoeuvring between fryer stations, while practical details such as cord storage, a heavy-duty heat-resistant handle on the delivery tube, and a heavy-duty motor switch make it straightforward to operate and maintain. An upgrade kit for carbon pad filtering is also available for enhanced oil polishing.

Key Benefits

• Extends frying oil life by removing food particles and contaminants, reducing oil replacement costs over time.
• Reversible pump action allows efficient oil recovery and helps clear blockages without tools or disassembly.
• Mobile castor-mounted design lets staff move the filter between multiple fryer stations quickly, improving workflow in busy kitchens.
• Reusable filter bags lower ongoing consumable costs compared to single-use paper filter systems.
• Heavy-duty heat-resistant handle on the delivery tube protects operators when returning hot oil to the fryer tank.
• Rigid return delivery tube ensures safe, controlled transfer of oil back into the fryer, minimising spill risk.
• Cord storage keeps the work area tidy and reduces trip hazards during service.
• Optional upgrade to carbon pad filtering provides a higher level of oil purification when required.
• Full stainless steel construction resists corrosion from hot oils and harsh cleaning agents, supporting long service life.

Key Features

• 40-litre oil capacity suitable for use with large commercial fryer tanks
• 1/3 HP heavy-duty reversible pump motor for powerful oil draw and return
• Off/Forward/Reverse pump control switch for flexible operation
• Rigid return delivery tube for safe and efficient return of filtered oil to the fryer tank
• Heavy-duty heat-resistant insulated handle fitted to the oil delivery tube
• Reusable 'easy clean' filter bags included as standard
• Upgrade kit available for carbon pad filtering for enhanced oil polishing
• Full stainless steel construction throughout
• Mounted on two fixed and two swivel castors for easy repositioning
• Heavy-duty stainless steel handle for unit mobility
• Heavy-duty motor switch for reliable operation under frequent use
• Cord set fitted with integrated cord storage to keep the work area clear
• Compatible with Waldorf 800 Series fryers including the FN8130G HPO Series
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 474
• Depth (mm): 683
• Height (mm): 562
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 55
• Packed Width (mm): 700.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 500.0
• Shipping Cubic: 0.210000000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Fuel Type: Electric
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Display Type: Analog
