Overview

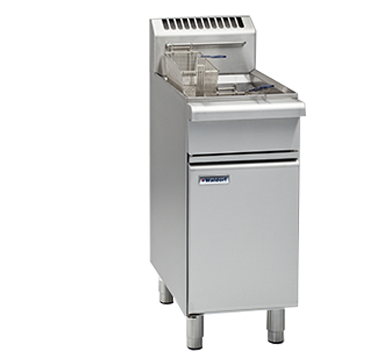

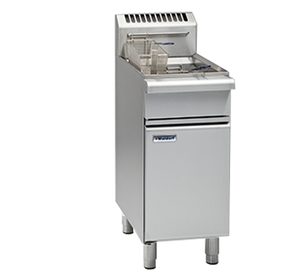

Waldorf FN8118G 800 Series 400mm Single Pan Gas Fryer

The Waldorf FN8118G is a 400mm wide single pan gas fryer from the renowned 800 Series, engineered for demanding commercial kitchen environments. Built in New Zealand from heavy-duty 1.2mm 304 stainless steel, it features an 18-litre oil capacity V-tank with cool zone, a 90MJ multi-jet target burner, and a mechanical thermostat with a temperature range of 145–195°C, delivering a production rate of 25kg per hour to keep up with high-volume service.

Designed with ease of use and food safety in mind, the FN8118G includes an over-temperature safety cut-out, a stainless steel open pan for straightforward cleaning, and adjustable feet on 150mm legs for stable levelling on any kitchen floor. Compatible with both natural gas and LPG, it ships with two standard frying baskets and is backed by a 24-month warranty, making it a reliable and cost-effective choice for restaurants, canteens, and catering operations.

Key Benefits

• High 25kg/hr production rate sustains continuous output during busy service periods without compromising food quality.
• 90MJ multi-jet target burner with fast heat recovery minimises downtime between batches and keeps throughput consistent.
• V-tank design with cool zone reduces oil degradation by keeping sediment away from active heat zones, extending oil life and lowering operating costs.
• Mechanical thermostat with 145–195°C range provides simple, reliable temperature control without complex electronics.
• Over-temperature safety cut-out protects both equipment and staff from dangerous overheating situations.
• Open-pan stainless steel construction makes routine cleaning quick and thorough, reducing labour time between shifts.
• Adjustable feet on heavy-duty 150mm legs allow precise levelling on uneven or tiled kitchen floors.
• Dual gas compatibility with natural gas and LPG gives flexibility for different site configurations.
• Includes two standard baskets out of the box so the unit is ready for immediate service upon installation.

Key Features

• 400mm wide single pan configuration suited to modular 800 Series line-ups
• 18-litre oil capacity V-tank with integrated cool zone to protect oil quality
• 90MJ multi-jet target burner for powerful, even heat distribution
• 25kg/hr production rate for high-volume commercial frying
• Mechanical thermostat with analogue display and 145–195°C operating range
• Over-temperature safety cut-out for added operational safety
• Easy-clean stainless steel open pan design for fast, thorough maintenance
• Constructed from heavy-duty 1.2mm 304 stainless steel throughout
• 150mm legs in 63mm diameter with adjustable feet for stable, level installation
• Supplied with 2 standard frying baskets
• Compatible with both natural gas and LPG connections (R 3/4 BSP male)
• Splashback included; no undershelf
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 400
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 97
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 18
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
