Overview

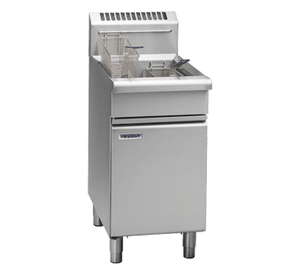

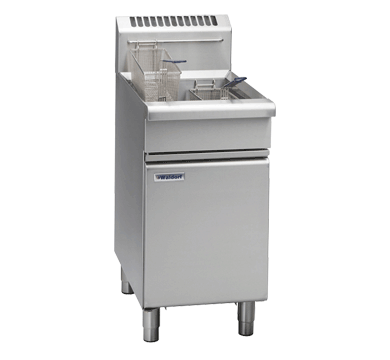

Waldorf FN8120G 800 Series 450mm Single Pan Gas Fryer

The Waldorf FN8120G is a 450mm single pan gas fryer from the renowned 800 Series, engineered for high-volume commercial kitchens that demand consistent output and reliable performance. Constructed from 304 stainless steel and manufactured in New Zealand, it features Waldorf's patented infrared burner system, which delivers exceptional frying efficiency and rapid heat recovery to keep production moving during peak service periods.

With a 20-litre oil capacity and a production rate of 31 kg/hr, this unit is well suited to restaurants, fish and chip shops, pubs, and catering operations. Mechanical thermostatic controls keep operation straightforward for all staff, while the design prioritises easy cleaning, installation, and servicing. The fryer ships with two baskets and a stainless steel lid included as standard, making it ready to use from day one.

Key Benefits

• Patented infrared burner technology delivers fast heat recovery, maintaining frying temperatures even during continuous high-volume service.
• A 31 kg/hr production rate supports busy service periods without bottlenecks, helping kitchens meet demand consistently.
• Mechanical thermostatic controls with a 145-195°C temperature range are simple and intuitive, reducing training time and operator error.
• Large capacity cool zone beneath the frying area minimises food particle burn-off, extending oil life and protecting food quality.
• Easy-clean design reduces downtime between services, supporting hygiene compliance and faster turnaround.
• Supplied with two baskets and a stainless steel lid as standard, providing immediate operational readiness without additional accessory purchases.
• Compatible with both natural gas and LPG supplies, giving flexibility across different site configurations.
• 304 stainless steel construction provides durability and corrosion resistance in demanding commercial environments.
• 24-month warranty and New Zealand manufacture back a proven product with an established industry reputation.

Key Features

• 450mm wide single pan configuration suitable for modular suite or standalone installation
• 20-litre oil capacity pan sized at W365 x L380 x D95 mm
• 31 kg/hr production rate
• 2 x 45 MJ/hr patented infrared burners totalling 90 MJ/hr (25.0 kW)
• Mechanical thermostatic temperature control with analogue display
• Temperature range of 145-195°C
• Large capacity cool zone to reduce food particle combustion and extend oil life
• Splashback included; no undershelf
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Constructed from 304 stainless steel
• Supplied as standard with 2 frying baskets and a stainless steel lid
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 122
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 20
• Pan Size: W365 x L380 x D95 mm
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
