Overview

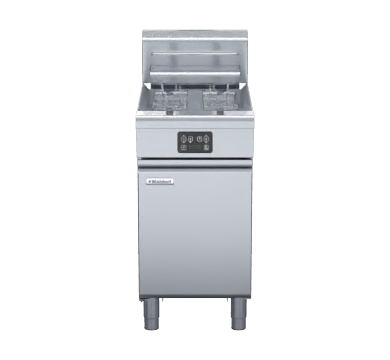

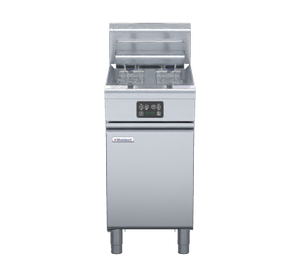

Waldorf FN8127EE 800 Series 450mm Single Pan Electric Fryer

The Waldorf FN8127EE is a 450mm single pan electric fryer from the renowned 800 Series, engineered for the demands of high-volume commercial kitchens. With a 27-litre oil capacity, a 31kg/hr production rate, and three 5.66kW stainless steel heating elements delivering a combined 17kW of power, it offers rapid heat recovery and consistent frying performance across a temperature range of 145–195°C. Digital display electronic controls provide precise temperature regulation and basket timers, keeping output steady during peak service periods.

Constructed from 304 stainless steel throughout, the FN8127EE is built for durability, easy cleaning, and straightforward servicing. The open pan design simplifies maintenance, while hinge-out counterbalanced heating elements and a 32mm drain valve make daily upkeep quick and practical. The unit arrives with two standard baskets and a stainless steel lid, and its fully modular design ensures it integrates neatly into any 800 Series configuration. A low-back model variant is also available for kitchens with different installation requirements.

Key Benefits

• High 31kg/hr production rate sustains output during peak service without compromising food quality.
• Rapid heat recovery from three independent 5.66kW elements minimises downtime between batches.
• Digital display with basket timers gives operators precise, repeatable control over frying times and temperatures.
• Easy-clean open pan design with a 32mm drain valve reduces oil change and cleaning time between shifts.
• Hinge-out counterbalanced heating elements allow quick access for servicing and thorough cleaning without specialist tools.
• Fully modular 800 Series construction makes it straightforward to expand or reconfigure the cooking line as needs change.
• Over-temperature safety cut-out protects the unit and kitchen staff during unattended operation.
• Heavy-duty 304 stainless steel construction across all surfaces resists corrosion and withstands the rigours of a busy commercial environment.
• Supplied ready to use with two standard baskets and a stainless steel lid, reducing additional equipment costs.

Key Features

• 450mm wide single pan electric fryer, part of the Waldorf 800 Series modular range.
• 27-litre oil capacity with a 31kg/hr production rate.
• Three 5.66kW stainless steel heating elements; total power 17kW.
• Electrical supply: 400–415Vac, 50/60Hz, 3P+N+E, 24A.
• Digital display electronic controls with precise temperature regulation across 145–195°C.
• Basket timers integrated into the digital control interface.
• Over-temperature safety cut-out for added operational safety.
• Easy-clean stainless steel open pan design.
• Hinge-out counterbalanced heating elements for simplified cleaning and servicing.
• 32mm (1¼") drain valve for fast, controlled oil removal.
• Bull-nose welded 1.5mm 304 stainless steel pan construction.
• 1.5mm 304 stainless steel splashback.
• 1.2mm 304 stainless steel side panels.
• Double skin door with 0.9mm 304 stainless steel exterior.
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet.
• Fully modular design compatible with the 800 Series lineup.
• Low-back model (FNL) available as an alternative configuration.
• Supplied as standard with two baskets and a stainless steel lid.
• Manufactured in New Zealand.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 116
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
