Overview

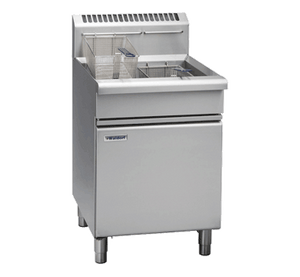

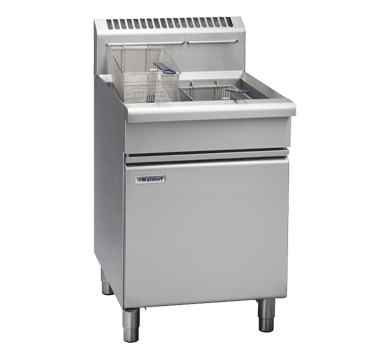

Waldorf FN8130G 800 Series 600mm Single Pan Gas Fryer

The Waldorf FN8130G is a 600mm single pan gas fryer from the renowned 800 Series, engineered for high-volume commercial kitchens that demand consistent output and reliability. Built from 304 stainless steel in New Zealand, it features Waldorf's patented infrared burner system across two 45MJ/hr burners, delivering a combined 90MJ/hr output and a production rate of 31kg/hr to keep pace with the busiest service periods.

With a 31-litre oil capacity, a large cool zone to extend oil life, and a temperature range of 145–195°C controlled by a mechanical thermostat, the FN8130G balances simplicity with frying performance. The unit is supplied ready to work, including baskets, and is available in both natural gas and LPG configurations, making it a versatile fit for a wide range of kitchen setups.

Key Benefits

• High 31kg/hr production rate sustains output during peak service without slowing down the kitchen
• Patented infrared burner technology delivers fast heat recovery so oil returns to target temperature quickly between fry cycles
• Large cool zone at the base of the pan slows oil degradation, reducing consumption costs and extending oil life
• Mechanical controls are straightforward to operate, minimising training time for kitchen staff
• Available in both natural gas and LPG configurations for flexible installation across different venues
• Stainless steel construction throughout supports easy cleaning and long-term durability in demanding environments
• Supplied with baskets (accommodates 2 large or 3 standard baskets) so the unit is operational straight out of the box
• Modular 800 Series format allows integration into a suite of Waldorf equipment for a cohesive, space-efficient kitchen line

Key Features

• 600mm wide single pan gas fryer from the Waldorf 800 Series modular range
• 31-litre oil capacity pan
• 2 x 45MJ/hr patented infrared burners, totalling 90MJ/hr (25kW) output
• Production rate of 31kg/hr
• Temperature range of 145–195°C with mechanical thermostatic control and analogue display
• Large capacity cool zone to minimise oil breakdown and extend oil service life
• Supplied with baskets to suit 2 large or 3 standard configurations
• Compatible with both natural gas and LPG; R 3/4 (BSP) male gas connection
• 304 stainless steel construction
• Integrated splashback included
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 143
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 645.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
