Overview

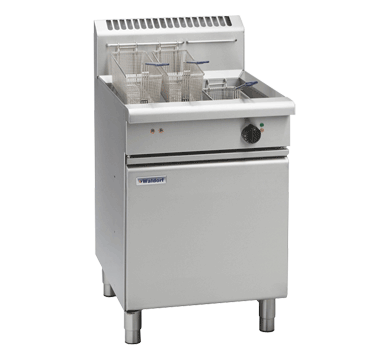

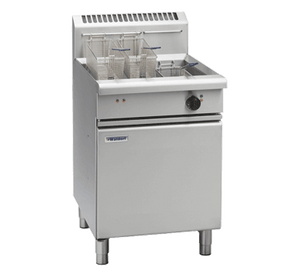

Waldorf FN8130G-HPO 800 Series 600mm Single Pan High Performance Gas Fryer

The Waldorf FN8130G-HPO is a 600mm wide single pan gas fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent output and low operating costs. At the heart of this fryer is a patented High Performance Output (HPO) infrared burner system comprising two 70MJ/hr ceramic fibre burners driven by an innovative blower that forces increased volumes of air and gas through the burners. This technology maximises heat absorption into the cooking oil, resulting in a production rate of up to 50kg/hr while simultaneously reducing flue exhaust temperatures and lowering the cost per kilogram of food fried.

Constructed from 304 stainless steel and manufactured in New Zealand, the FN8130G-HPO features a 31-litre open V-tank pan with a large capacity cool zone to protect oil quality and extend its usable life. Mechanical thermostatic controls keep operation straightforward for busy kitchen staff, and the open pan design simplifies daily cleaning, routine maintenance and servicing. The fryer is supplied ready for use with either two large baskets or three standard baskets, and is compatible with both natural gas and LPG supplies via a 3/4" BSP male gas connection.

Key Benefits

• Achieves up to 50kg/hr production rate, sustaining high throughput during peak service periods without bottlenecks.
• Patented HPO infrared burner technology increases heat transfer to oil, reducing exhaust temperatures and lowering the cost per kilogram of food fried.
• Large capacity cool zone protects oil from degradation, extending oil life and reducing replacement costs.
• Mechanical thermostatic controls within a 145-195°C range are intuitive and reliable, minimising training time and operator error.
• Open V-tank pan design makes cleaning, inspection and servicing faster and easier, reducing kitchen downtime.
• Compatible with both natural gas and LPG, providing flexibility across different site installations.
• Supplied with a choice of two large or three standard baskets, offering versatility for different menu items straight out of the box.
• Over-temperature safety cut-out provides an added layer of protection for both staff and equipment.
• 24-month warranty backed by Waldorf's reputation for durable, commercial-grade construction.

Key Features

• 800 Series 600mm wide single pan configuration, suitable for modular line-up with other 800 Series equipment.
• 31-litre oil capacity open V-tank pan with a large capacity cool zone.
• Two x 70MJ/hr patented infrared ceramic fibre burners; 140MJ/hr total continuous production output.
• High Performance Output (HPO) blower system forces increased air and gas volumes through burners for enhanced heat absorption and efficiency.
• Production rate of up to 50kg/hr.
• Mechanical thermostatic temperature controls, 145-195°C operating range.
• Analogue display.
• Over-temperature safety cut-out.
• Stainless steel splashback included.
• 304 stainless steel construction throughout.
• 150mm adjustable legs.
• Compatible with natural gas and LPG; 3/4" BSP male gas connection.
• 230-240V AC, 50Hz, 0.5A electrical supply for controls; 3-pin 10A cordset fitted (1P+N+E).
• Supplied with 2 large baskets or 3 standard baskets.
• Designed for easy cleaning, installation and servicing.
• Manufactured in New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 127
• Shipping Weight: 148
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 645.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Thermostatic
• Display Type: Analog
