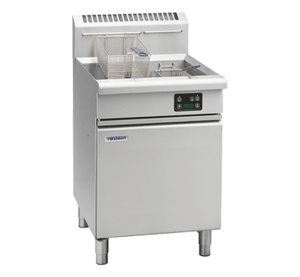

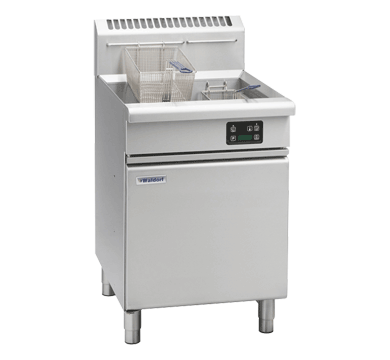

Waldorf FN8130GE 800 Series 600mm Single Pan Gas Fryer

The Waldorf FN8130GE is a 600mm single pan gas fryer from the respected 800 Series, purpose-built for high-volume commercial kitchens that demand consistent, reliable frying performance. At the heart of this unit are two patented infrared burners rated at 45MJ/hr each, delivering a combined 90MJ/hr of frying power, a 31-litre oil capacity, and a production rate of 31kg per hour to keep pace with demanding service periods.

Precision is ensured through digital display electronic controls with three individual product timers, allowing operators to manage multiple menu items simultaneously. The open pan V-tank design features a large-capacity cool zone to protect oil quality and extend its usable life, while an over-temperature safety cut-out adds an important layer of protection. The unit ships with baskets included, is straightforward to install and service, and is constructed from 304 stainless steel in New Zealand.

Key Benefits

• Patented infrared burner technology delivers industry-leading heat transfer and rapid recovery times, maintaining output even during busy service rushes.
• A 31kg/hr production rate and 31-litre oil capacity make it well-suited to high-throughput environments such as fish and chip shops, pubs, and institutional kitchens.
• Three individual product timers on the digital display allow simultaneous cooking of different menu items with precise, independent timing.
• The large-capacity cool zone in the V-tank slows oil degradation by keeping food debris away from the hottest zones, reducing oil consumption costs over time.
• An over-temperature safety cut-out protects both the oil and the equipment from overheating, supporting a safer kitchen environment.
• Digital electronic temperature control keeps frying conditions consistent, reducing the risk of undercooked product or oil smoking.
• Open pan construction with an easy-clean design simplifies daily maintenance and end-of-service cleaning routines.
• Supplied ready to use with either 2 large or 3 standard fry baskets, eliminating the need for additional accessory purchases at installation.
• Available for both natural gas and LPG connections via a 3/4 inch BSP male fitting, giving flexibility for different site configurations.

Key Features

• 600mm wide single pan configuration, part of the Waldorf 800 Series modular range
• 31-litre oil capacity with a 31kg/hr production rate
• 2 x 45MJ/hr patented infrared burners, combined output of 90MJ/hr
• Digital display electronic controls with three individual product timers
• Time and temperature digital display for at-a-glance monitoring
• Open pan V-tank design with large-capacity cool zone to preserve oil quality
• Over-temperature safety cut-out for operator and equipment protection
• Temperature range of 145-195°C
• Supplied with 2 large or 3 standard fry baskets
• 150mm adjustable legs
• Splashback included
• Constructed from 304 stainless steel
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• Electrical supply: 230-240V, 50Hz, 10A plug (0.5A draw), 3-pin cordset fitted
• Modular design for easy installation, cleaning, and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 143
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 645.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Digital Electronic
• Display Type: Digital
