Overview

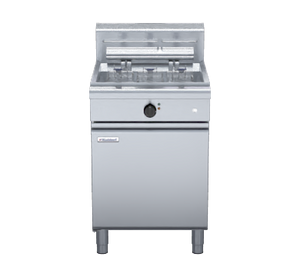

Waldorf FN8135E 800 Series 600mm Single Pan Electric Fryer

The Waldorf FN8135E is a heavy-duty 600mm single pan electric deep fryer from the 800 Series, purpose-built for high-volume commercial kitchen environments. With a 35-litre oil capacity and a production rate of 40kg per hour, it delivers consistent, high-output frying performance to keep pace with demanding service periods.

Constructed entirely from stainless steel and powered by two 11kW flat bar heating elements, this floor-standing fryer offers fast heat recovery and precise temperature management via an electronic thermostat adjustable between 90°C and 190°C. Its fully modular design simplifies cleaning, installation and servicing, while the included baskets, lid and robust leg assembly make it ready for immediate integration into any professional kitchen.

Key Benefits

• A 40kg per hour production rate sustains high-volume output during busy service periods without bottlenecks.
• Dual 11kW flat bar heating elements deliver rapid heat recovery, minimising downtime between batches.
• Electronic thermostat with a 90–190°C range gives operators precise, repeatable temperature control for consistent frying results.
• The 35-litre oil capacity reduces the frequency of oil top-ups, supporting uninterrupted service.
• Full stainless steel construction resists corrosion and withstands the rigours of daily commercial use.
• A 32mm (1¼") drain valve makes oil changes and cleaning straightforward, reducing labour time.
• Fully modular design simplifies routine maintenance and servicing, lowering long-term operating costs.
• Heavy-duty 150mm stainless steel legs with two adjustable feet allow stable, level installation on uneven floors.
• Supplied standard with three baskets and a stainless steel lid, providing everything needed for immediate operation.

Key Features

• 600mm single pan electric deep fryer, part of the Waldorf 800 Series
• 35-litre oil capacity
• 40kg per hour production rate
• Two 11kW flat bar stainless steel heating elements
• Full stainless steel construction throughout
• Electronic thermostat with adjustable range of 90–190°C
• 32mm (1¼") drain valve for efficient oil removal and cleaning
• Three standard frying baskets and a stainless steel lid included as standard
• 150mm legs in 63mm diameter heavy-duty stainless steel with two adjustable feet
• Fully modular design for easy cleaning, installation and servicing
• Floor-standing unit with dimensions 600mm (W) x 805mm (D) x 1130mm (H)

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Shipping Weight: 90
• Packed Width (mm): 600.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.576000000m3
