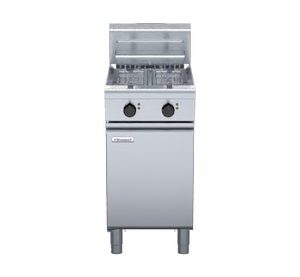

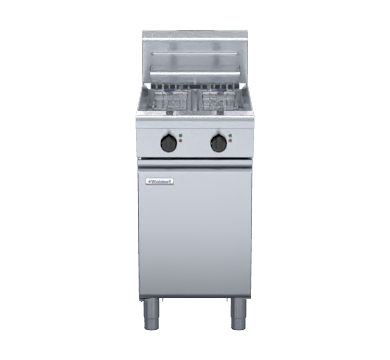

Waldorf FN8224E 800 Series 450mm Twin Pan Electric Fryer

The Waldorf FN8224E is a 450mm twin pan electric fryer from the Waldorf 800 Series, delivering 17kW of high-performance frying capacity across two independent 12-litre pans. Manufactured in New Zealand from 304 stainless steel throughout, it is built to withstand the demands of busy commercial kitchens, producing up to 31kg per hour across both pans with fast heat recovery and consistent results.

Designed for ease of use and serviceability, the FN8224E features mechanical thermostatic controls, hinge-out counterbalanced heating elements for straightforward cleaning and maintenance, and easy-clean open stainless steel pans. The fully modular format integrates seamlessly into an 800 Series suite, and a low-back model (FNL) is also available for installations with height constraints.

Key Benefits

• Twin independent pans allow different products to be fried simultaneously at separate temperatures, improving kitchen flexibility and throughput
• High 31kg/hr production rate supports high-volume service periods without bottlenecks
• Hinge-out counterbalanced heating elements make daily cleaning and periodic servicing quick and straightforward, reducing labour and downtime
• Fail-safe over-temperature safety cut-outs and an element tilt switch that cuts heating on element lift protect staff and equipment
• Mechanical controls with large, easy-read dials and indicator lights for power and heating on each pan give operators clear, at-a-glance status
• Fully modular construction allows the unit to be combined with other 800 Series equipment to build a cohesive cooking line
• 25mm drain valves on each pan simplify oil changes and reduce spillage risk
• 150mm heavy-duty legs with adjustable feet provide stable levelling on uneven floors and allow easy under-unit cleaning

Key Features

• 450mm wide twin pan configuration with 12 litres oil capacity per pan (24 litres total)
• 17kW total power output; 400-415V, 3-phase (3P+N+E), 50/60Hz
• 3 x 2.83kW stainless steel heating elements per unit
• 31kg/hr production rate across both pans
• Mechanical thermostatic controls with thermostat range 90-200°C
• Large easy-use controls with easy-view scale and indicator lights for power and heating on each pan
• Fail-safe over-temperature safety cut-outs on each pan
• Element tilt switch automatically cuts heating when elements are lifted
• Hinge-out counterbalanced heating elements for simplified cleaning and servicing
• Easy-clean stainless steel open pan design
• 25mm (1") drain valves on each pan
• Bull nose welded 1.5mm 304 stainless steel construction
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Supplied with 2 standard baskets and a stainless steel lid
• Fully modular design for integration into the Waldorf 800 Series cooking suite
• Low-back model (FNL) available as an alternative configuration
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 116
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
