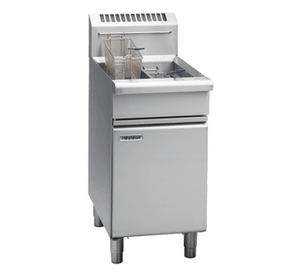

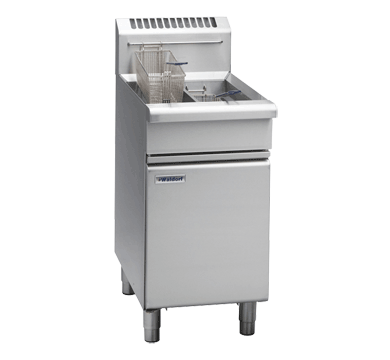

Waldorf FN8226G 800 Series 450mm Twin Pan Gas Fryer

The Waldorf FN8226G is a 450mm twin pan gas fryer from the renowned 800 Series, engineered for high-volume commercial kitchens that demand consistent output and reliable performance. Each of the two independent pans holds 13 litres of oil, delivering a combined 26-litre capacity and a production rate of 31kg per hour, making it well suited to busy service environments such as fish and chip shops, pub kitchens, and fast-food operations.

Powered by Waldorf's patented infrared burner system, the FN8226G uses two 45MJ/hr infrared burners to achieve rapid heat recovery between batches, minimising wait times and keeping throughput high. Mechanical thermostatic controls keep operation straightforward, while the large-capacity cool zones protect oil quality and extend its usable life. Constructed from 304 stainless steel in New Zealand and supplied ready to use with two standard baskets, this fryer is designed for ease of installation, cleaning, and long-term servicing.

Key Benefits

• A 31kg/hr production rate supports continuous high-volume frying throughout busy service periods without bottlenecks.
• Patented infrared burners deliver fast heat recovery between loads, reducing downtime and keeping food quality consistent.
• Two independent 13-litre pans allow different products to be fried simultaneously at separate temperatures, adding menu flexibility.
• Large-capacity cool zones slow oil degradation, helping to extend oil life and reduce operating costs.
• Mechanical thermostatic controls are intuitive for kitchen staff to operate and straightforward to maintain.
• Compatible with both natural gas and LPG, providing installation flexibility across different site configurations.
• 304 stainless steel construction throughout ensures durability and simplifies cleaning in demanding commercial environments.
• Supplied with two standard baskets so the unit is ready for immediate use from the moment of installation.
• Manufactured in New Zealand and backed by a 24-month warranty, offering peace of mind for long-term kitchen investment.

Key Features

• 450mm wide twin pan configuration with 13 litres of oil capacity per pan (26 litres total)
• Production rate of 31kg per hour
• 2 x 45MJ/hr Waldorf patented infrared burners for efficient, fast-recovery frying
• Total burner output of 90MJ/hr (50kW power rating)
• Mechanical thermostatic controls with analogue display
• Temperature range of 145°C to 195°C
• Large-capacity cool zones in each pan to preserve oil quality
• Splashback included; no undershelf
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Supplied with 2 standard frying baskets
• Designed for easy cleaning, installation, and servicing
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 180
• Shipping Weight: 129
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 50.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
