Overview

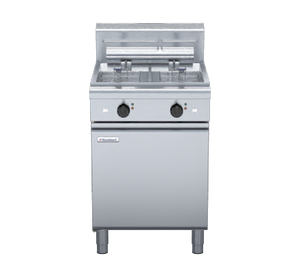

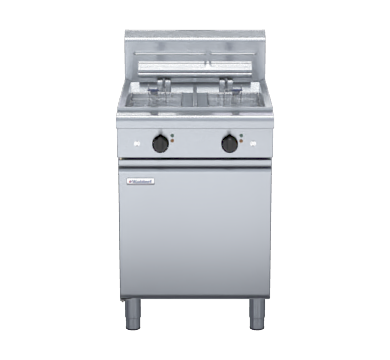

Waldorf FN8235EE 800 Series 600mm Twin Pan Electric Fryer

The Waldorf FN8235EE is a 600mm twin pan electric deep fryer from the renowned 800 Series, purpose-built for high-volume commercial kitchens. Each pan holds 17.5 litres of oil and is powered by an 11kW flat bar stainless steel heating element, delivering a combined production rate of 40kg per hour to keep pace with demanding service periods.

Constructed entirely from stainless steel, the FN8235EE is designed for durability, easy cleaning and straightforward servicing. Its fully modular design supports simple installation and maintenance, while practical inclusions such as digital temperature displays, four basket timers, a 25mm drain valve and supplied baskets and lid make it a complete, ready-to-use frying solution.

Key Benefits

• Twin 17.5L pans allow simultaneous frying of different products, increasing menu flexibility and throughput during peak service.
• A combined output of 40kg per hour ensures the fryer can sustain high-volume production without creating bottlenecks in the kitchen.
• Dual 11kW flat bar heating elements deliver rapid heat recovery, minimising temperature drop between consecutive batches.
• Digital temperature displays and four basket timers give operators precise, repeatable control over cooking results across both pans.
• A thermostat range of 88–190°C accommodates a wide variety of fried foods, from delicate items to high-temperature frying applications.
• The 25mm drain valve makes oil changes fast and clean, reducing downtime and supporting safe kitchen practices.
• Full stainless steel construction resists corrosion and grease build-up, making daily cleaning and long-term maintenance straightforward.
• Heavy-duty 150mm stainless steel legs with two adjustable feet provide stable, level installation on uneven floors.
• Fully modular design simplifies installation, servicing and integration alongside other equipment in the Waldorf 800 Series line-up.

Key Features

• 600mm wide twin pan electric deep fryer, part of the Waldorf 800 Series
• 17.5L oil capacity per pan
• 40kg per hour production rate
• Two 11kW flat bar stainless steel heating elements
• Full stainless steel construction throughout
• Two digital display temperature controllers, one per pan
• Four basket timers for precise cook-time management
• Thermostat range of 88–190°C
• 25mm (1 inch) drain valve per pan for efficient oil drainage
• Two large baskets and a stainless steel lid supplied as standard
• 150mm legs in 63mm diameter heavy-duty stainless steel with two adjustable feet
• Fully modular design for easy installation, cleaning and servicing

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
