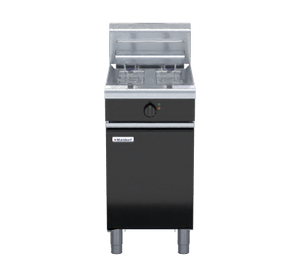

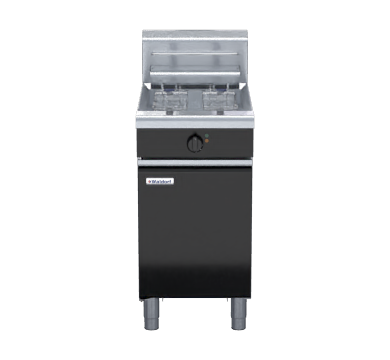

Waldorf FNB8127E Bold 450mm Single Pan Electric Fryer

The Waldorf FNB8127E is a 450mm single pan electric deep fryer from the Waldorf Bold range, engineered for high-volume commercial kitchen environments. With a 27-litre oil capacity, 17kW of power delivered through three stainless steel heating elements, and a production rate of 31kg per hour, this fryer maintains fast heat recovery and consistent output even during peak service periods.

Constructed from 304 stainless steel throughout, the FNB8127E features a fully modular design that simplifies cleaning, servicing, and installation. The unit ships with two standard fry baskets and a stainless steel lid, and arrives in a default black vitreous enamel front panel finish with additional colour options available. It is manufactured in New Zealand and carries a 24-month warranty.

Key Benefits

• 31kg per hour production rate sustains high output during peak service without compromising food quality
• Fast heat recovery between batches keeps waiting times short and throughput consistent
• Three independent 5.66kW stainless steel heating elements distribute heat evenly across the 27-litre oil volume
• Thermostatic mechanical controls provide reliable, repeatable temperature management between 145°C and 195°C
• Fully modular construction allows individual components to be accessed and replaced with minimal downtime
• 32mm drain valve makes oil changes quick and straightforward, reducing labour during clean-down
• Robust 304 stainless steel construction resists corrosion and withstands the demands of continuous commercial use
• Adjustable feet on heavy-duty 150mm legs allow precise levelling on uneven kitchen floors
• Supplied ready to use with two fry baskets and a stainless steel lid, reducing upfront accessory costs

Key Features

• 450mm wide single pan electric deep fryer from the Waldorf Bold range
• 27-litre oil capacity
• 31kg per hour production rate
• 17kW total power via three x 5.66kW stainless steel heating elements
• 3-phase power supply: 400-415Vac, 50/60Hz, 3P+N+E; L1/L2/L3 each 23.6A
• Thermostatic temperature control with analogue display, range 145-195°C
• Mechanical controls for straightforward operation and servicing
• Stainless steel open pan construction for easy cleaning
• 32mm (1¼") drain valve for efficient oil drainage
• Bull nose welded 1.5mm 304 stainless steel pan
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double skin door with 0.9mm 304 stainless steel exterior
• Black vitreous enamel finish to front panels; additional colour options available
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Fully modular design simplifying installation, cleaning, and servicing
• Supplied with 2 standard fry baskets and a stainless steel lid
• Country of origin: New Zealand
• 24-month warranty
• Overall dimensions: 450mm (W) x 805mm (D) x 1130mm (H)
• Packed weight: 105kg

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
