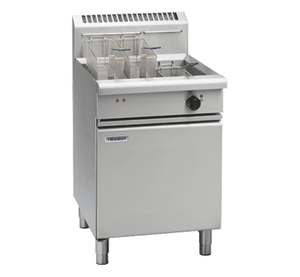

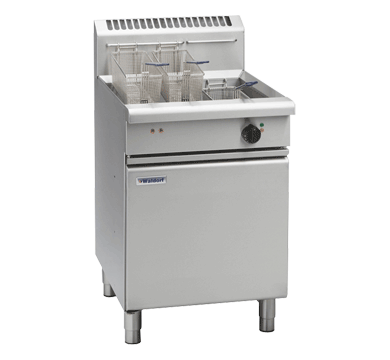

Waldorf FNB8130G-HPO Bold 600mm Single Pan Gas Fryer

The Waldorf FNB8130G-HPO is a 600mm single pan gas deep fryer from the Waldorf Bold range, purpose-built for high-volume commercial kitchens that demand consistent output and reliable performance. Powered by two 70MJ/hr infrared burners delivering a combined 140MJ/hr, the fryer holds 31 litres of oil and achieves a production rate of 50kg per hour, making it well suited to busy fish and chip shops, hotels, pubs, and fast-food operations.

Constructed from 304 stainless steel and finished in the signature Waldorf Bold black as standard, the FNB8130G-HPO is available in custom colour options to suit your fit-out. Mechanical thermostatic controls keep operation straightforward for kitchen staff, while the design prioritises ease of cleaning, installation, and servicing. The unit is supplied ready for use with baskets included and accepts both natural gas and LPG connections.

Key Benefits

• High infrared burner output of 2 x 70MJ/hr drives rapid heat recovery so production keeps pace with peak service demand
• 50kg per hour production rate handles sustained high-volume frying without bottlenecks
• 31-litre oil capacity accommodates large batch sizes, reducing the frequency of oil top-ups during service
• Supplied with baskets included, accepting either 2 large or 3 standard baskets to suit your menu and portion requirements
• Mechanical thermostatic controls with an analogue display are intuitive to operate and straightforward to maintain
• Thermostatic temperature range of 145-195°C allows precise adjustment for different fried products
• Compatible with both natural gas and LPG, providing flexibility across different site gas supplies via a 3/4 inch BSP male connection
• Designed for easy cleaning and servicing, reducing downtime and lowering maintenance costs
• Available in custom colours beyond the default black, making it easy to match existing kitchen equipment or brand aesthetics

Key Features

• 600mm wide single pan gas deep fryer from the Waldorf Bold range
• Two 70MJ/hr infrared burners (combined 140MJ/hr output)
• 31-litre oil capacity
• Production rate of 50kg per hour
• Thermostatic temperature control, range 145-195°C, with analogue display
• Mechanical controls for straightforward operation
• Supplied with baskets: accommodates 2 large or 3 standard baskets
• 304 stainless steel construction
• Vitreous enamelled Bold version (FNB8130G-HPO); non-vitreous enamelled version also available as FN8130G-HPO
• Default finish is black; additional custom colour options available
• Accepts natural gas or LPG; gas connection is R 3/4 (BSP) male
• Electrical supply: 0.5A, 230-240V AC, 50Hz, 1P+N+E, 3-pin 10A cordset fitted
• Splashback included; no undershelf
• Dimensions: 600mm (W) x 805mm (D) x 1130mm (H)
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 127
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Thermostatic
• Display Type: Analog
