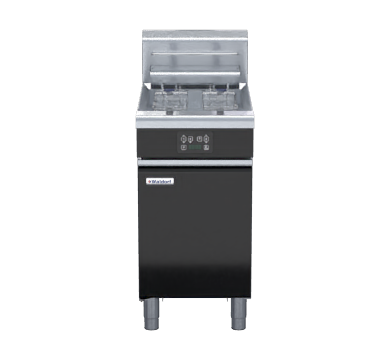

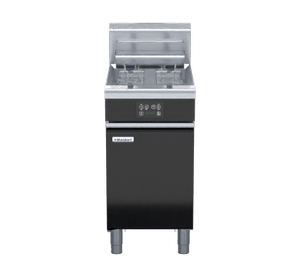

Waldorf FNB8224E Bold 450mm Twin Pan Electric Deep Fryer

The Waldorf FNB8224E is a 450mm wide twin pan electric deep fryer from the Waldorf Bold range, designed to deliver consistent, high-volume frying in demanding commercial kitchen environments. Each pan holds 12 litres of oil and the unit achieves a production rate of 31kg per hour, making it well suited to busy fish and chip shops, pubs, clubs, canteens and catering operations. The fryer is manufactured from bull nose welded 1.5mm 304 stainless steel with a splashback included as standard, and front panels finished in black vitreous enamel. Other colour options are available to suit kitchen fit-outs.

Each fry pan is heated by three 2.83kW stainless steel heating elements that hinge out on a counterbalanced mechanism, providing straightforward access for cleaning and servicing. A mechanical thermostat with a range of 90 to 200 degrees Celsius gives operators precise temperature control, while a fail-safe over-temperature safety cut-out and an element tilt switch add an important layer of protection. The unit ships with two standard baskets and a stainless steel lid, and is built on heavy-duty 150mm legs with adjustable feet. As a fully modular unit it integrates neatly into the Waldorf Bold suite of equipment.

Key Benefits

• Twin pan configuration with 12 litres per pan allows simultaneous frying of different products, maximising throughput without flavour cross-contamination.
• A 31kg per hour production rate sustains high output during peak service periods, reducing customer wait times.
• Hinge-out counterbalanced heating elements simplify daily cleaning and periodic servicing, minimising labour time and downtime.
• Mechanical controls with a large, clearly marked thermostat dial are intuitive for kitchen staff to operate and require no complex programming.
• A fail-safe over-temperature cut-out and element tilt switch automatically cut power if limits are exceeded or elements are lifted, reducing fire and safety risk.
• 25mm drain valves on each pan make oil changes quicker and cleaner, supporting efficient oil management and reducing waste.
• Fully modular design allows the fryer to be installed alongside other Waldorf Bold units to create a cohesive, space-efficient cooking suite.
• Stainless steel pan backed by a 10-year limited warranty reflects the durability of the construction and long-term value for operators.
• Supplied with two standard baskets and a stainless steel lid as standard, so the unit is ready for service without additional accessory purchases.

Key Features

• 450mm wide twin pan electric deep fryer from the Waldorf Bold modular range.
• 12 litre oil capacity per pan; two pans total.
• Production rate of 31kg per hour.
• Six stainless steel heating elements in total: 3 x 2.83kW per pan.
• Hinge-out counterbalanced heating elements for easy access during cleaning and servicing.
• Element tilt switch cuts power to heating elements when they are lifted.
• Fail-safe over-temperature safety cut-out for added protection.
• Mechanical thermostat with a control range of 90 to 200 degrees Celsius.
• Large, easy-to-read analogue control dial with clearly visible scale.
• Indicator lights for power on and heating status.
• 25mm (1 inch) drain valves on each pan for efficient oil drainage.
• Bull nose welded construction using 1.5mm 304 stainless steel.
• Splashback in 1.5mm 304 stainless steel included as standard.
• Side panels in 1.2mm 304 stainless steel.
• Double skin door with 0.9mm 304 stainless steel exterior.
• Front panels finished in black vitreous enamel; alternative colour options available.
• Stainless steel pan with 10-year limited warranty.
• 150mm legs constructed from 63mm diameter, heavy-duty 1.2mm 304 stainless steel tube, with adjustable feet.
• Supplied with two standard fry baskets and a stainless steel lid.
• Fully modular design for integration into a Waldorf Bold cooking suite.
• 415V three-phase power supply (3P+N+E, 400-415Vac, 50/60Hz); total power rating 17kW.
• Overall dimensions: 450mm wide x 805mm deep x 1130mm high.
• Manufactured in New Zealand.
• Note: product images may show the FNLB8224E low back version of the same model.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
