Overview

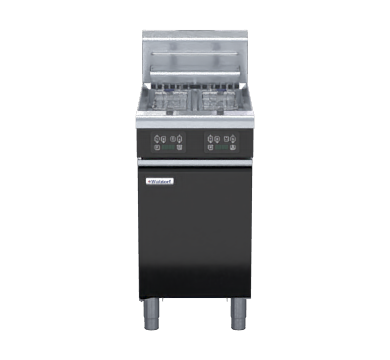

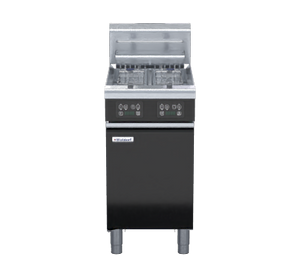

Waldorf FNB8224EE Bold 450mm Twin Pan Electric Fryer

The Waldorf FNB8224EE is a commercial-grade twin pan electric deep fryer from the Waldorf Bold range, designed to deliver consistent, high-volume frying performance in busy professional kitchens. Each of the two pans holds 12 litres of oil, giving a combined 24-litre capacity, while a production rate of 31kg per hour ensures demand is met during peak service periods.

Constructed from 304 stainless steel and powered by a 17kW, 415V three-phase supply, this 450mm wide unit features three 2.83kW stainless steel heating elements per side for rapid heat recovery between batches. Digital electronic controls provide precise temperature management across a 145–195°C range, and the fryer ships with two standard baskets ready for immediate use. The default finish is black, with additional colour options available to suit your kitchen fit-out.

Key Benefits

• Twin 12-litre pans deliver a 31kg/hr production rate, keeping up with high-volume service without compromising on quality.
• Fast heat recovery between batches means less waiting time and consistently crisp results throughout a busy service.
• Digital electronic temperature control across 145–195°C allows precise adjustment for different menu items.
• Three stainless steel heating elements per side provide even heat distribution and long-term durability in a demanding environment.
• Supplied with two standard baskets so the unit is ready to operate straight out of the box.
• Compact 450mm width maximises valuable bench and floor space without sacrificing output capacity.
• Designed for easy cleaning, installation, and servicing, reducing downtime and ongoing maintenance costs.
• Available in multiple colour options to coordinate with your kitchen's aesthetic or branding requirements.
• Backed by a 24-month warranty and manufactured in New Zealand to Waldorf's commercial quality standards.

Key Features

• 450mm wide twin pan configuration with 12 litres of oil capacity per pan (24 litres combined)
• Production rate of 31kg per hour
• Six stainless steel heating elements in total, three per pan at 2.83kW each
• Total power rating of 17kW, 3P+N+E, 400–415Vac, 50/60Hz; per-phase current draw of 23.6A on L1, L2 and L3
• 415V three-phase power supply
• Digital electronic display and controls
• Temperature range of 145–195°C
• Supplied with two standard frying baskets
• Splashback included; no undershelf
• 304 stainless steel construction
• Default colour black; additional colour options available to order
• Part of the Waldorf Bold range
• Dimensions: 450mm (W) x 805mm (D) x 1130mm (H)
• Packed weight: 116kg
• Manufactured in New Zealand
• 24-month warranty
• Note: product images may show the FNLB8224EE low-back variant of the same model

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
