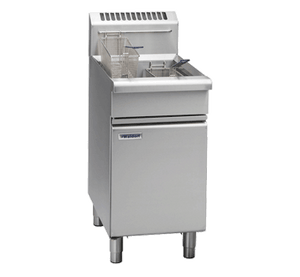

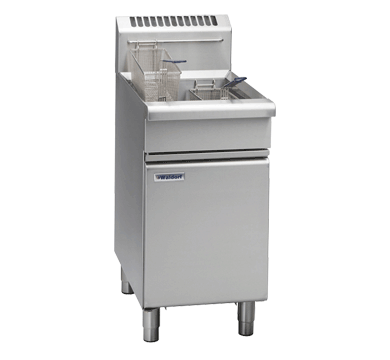

Waldorf FNL8120G 800 Series 450mm Single Pan Gas Fryer Low Back Version

The Waldorf FNL8120G is a 450mm single pan gas fryer from the Waldorf 800 Series, designed for demanding commercial kitchen environments. Built from 304 stainless steel and manufactured in New Zealand, it delivers a 20-litre oil capacity paired with two 45 MJ/hr infrared burners, producing a combined output of 90 MJ/hr and a production rate of 31 kg/hr to keep pace with high-volume frying service.

The low back version suits kitchens where bench height or overhead clearance is a priority. Mechanical thermostatic controls keep operation straightforward, and the unit is designed for easy cleaning, installation and servicing. It arrives ready to use with two frying baskets and a stainless steel lid included as standard, and is compatible with both natural gas and LPG supplies via a 3/4 BSP male connection.

Key Benefits

• Infrared burner technology provides rapid, even heat transfer for consistently crisp frying results across the full 20-litre oil capacity.
• A 31 kg/hr production rate supports continuous high-volume output, reducing bottlenecks during peak service periods.
• Fast heat recovery between loads minimises downtime and keeps throughput high in busy kitchens.
• Mechanical thermostatic controls within a 145-195°C range allow straightforward, reliable temperature management without complex electronics.
• Compatible with both natural gas and LPG, offering flexibility across different kitchen installations.
• Low back profile suits installations with space constraints or where integration with ventilation canopies at bench height is required.
• Supplied with two baskets and a stainless steel lid from the outset, eliminating the need for separate accessory purchases.
• 304 stainless steel construction supports hygiene standards and withstands the demands of a commercial kitchen environment.
• Designed for easy cleaning, installation and servicing, reducing maintenance time and associated labour costs.

Key Features

• 450mm wide single pan gas fryer from the Waldorf 800 Series
• 20-litre oil capacity
• 31 kg/hr production rate
• Two 45 MJ/hr infrared burners, combined output 90 MJ/hr (25.0 kW)
• Thermostatic temperature control, adjustable from 145°C to 195°C
• Mechanical (analogue) controls
• Compatible with natural gas and LPG; 3/4 BSP male gas connection
• Low back version with splashback included
• Two frying baskets and a stainless steel lid supplied as standard
• 304 stainless steel construction
• Designed for easy cleaning, installation and servicing
• No undershelf
• Manufactured in New Zealand
• 24-month warranty
• Note: product images may show the standard back model FN8120G

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 20
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
