Overview

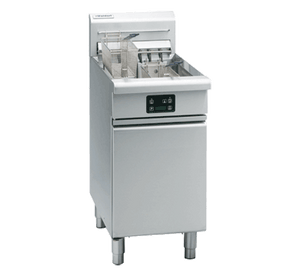

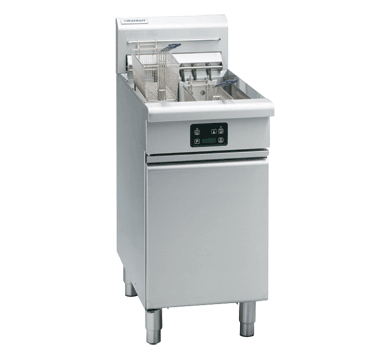

Waldorf FNL8120GE 800 Series 450mm Single Pan Gas Fryer Low Back Version

The Waldorf FNL8120GE is a commercial single pan gas fryer from the 800 Series range, designed for high-volume kitchens that demand consistent output and reliability. Built from 304 stainless steel in New Zealand, this 450mm wide unit features two infrared burners delivering a combined 90MJ/hr, digital electronic controls, and a 20-litre oil capacity that supports a production rate of 31kg per hour.

The low back configuration suits kitchens where overhead clearance or ventilation layout requires a reduced-height splashback profile, without compromising on operational performance. Simple to clean, install and service, the FNL8120GE ships ready to use with two standard baskets included, and is available in both natural gas and LPG configurations.

Key Benefits

• High production rate of 31kg per hour keeps up with peak service demands in busy commercial kitchens
• Dual infrared burners provide rapid, even heat distribution for consistent frying results and fast oil recovery between batches
• Digital electronic controls allow precise, repeatable temperature settings across the 145-195°C range, reducing guesswork for kitchen staff
• 20-litre oil capacity handles large batch volumes, minimising the need for frequent oil top-ups during service
• Low back version suits specific kitchen layouts where a full-height splashback is impractical, adding installation flexibility
• Available in both natural gas and LPG, making it adaptable to different site gas supply configurations
• Two standard baskets included out of the box, so the unit is operational immediately upon installation
• 304 stainless steel construction resists corrosion and is easy to wipe down, supporting food safety and hygiene compliance
• Straightforward servicing and cleaning design reduces downtime and lowers the cost of routine maintenance

Key Features

• 450mm wide single pan gas fryer, part of the Waldorf 800 Series commercial cooking range
• 20-litre oil capacity pan
• Production rate of 31kg per hour
• Two infrared burners, each rated at 45MJ/hr, for a combined output of 90MJ/hr
• Digital display with electronic temperature controls
• Temperature range of 145-195°C
• Compatible with natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Electrical supply: 230-240Vac, 50Hz, 1P+N+E, 0.5A, supplied with 3-pin 10A cordset
• Low back splashback configuration
• Splashback fitted; no undershelf
• Constructed from 304 stainless steel
• Supplied with two standard frying baskets
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month warranty
• Dimensions: 450mm (W) x 805mm (D) x 1085mm (H)
• Packed weight: 122kg

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 20
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Digital Electronic
• Display Type: Digital
