Overview

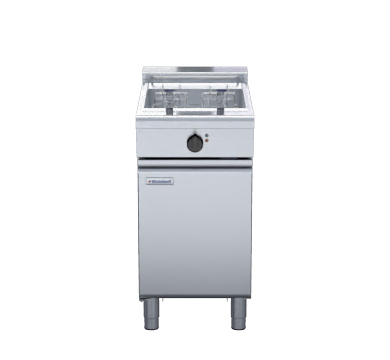

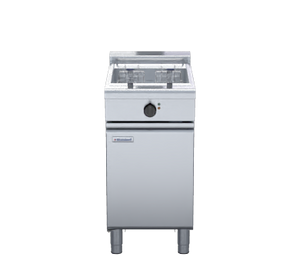

Waldorf FNL8127E 800 Series 450mm Single Pan Electric Fryer Low Back Version

The Waldorf FNL8127E is a 450mm single pan electric fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent output and straightforward operation. Producing at 31 kg per hour with a 27-litre oil capacity and 17 kW of power delivered through three 5.66 kW stainless steel heating elements, this fryer maintains rapid heat recovery to keep production running at full pace during busy service periods.

Built entirely from 304 stainless steel with bull nose welded construction throughout, the FNL8127E is engineered for durability, hygiene and ease of maintenance. The low back configuration suits venues with overhead space constraints, while the fully modular design and hinge-out counterbalanced heating elements simplify routine cleaning and servicing without the need for specialist tools.

Key Benefits

• 31 kg per hour production rate sustains high-volume output during peak service without compromising food quality.
• Three hinge-out counterbalanced heating elements allow fast, unobstructed access to the pan for thorough cleaning and straightforward element replacement.
• A 32 mm (1¼ inch) drain valve speeds up oil changes and pan cleaning, reducing downtime between service periods.
• Mechanical thermostatic controls provide simple, reliable temperature management across the 145–195°C range without complex electronics to maintain.
• Fully modular construction means individual components can be replaced independently, extending the working life of the unit and reducing repair costs.
• Low back design accommodates kitchens with overhead canopy or shelf restrictions while retaining full fryer performance.
• Supplied with two standard baskets and a stainless steel lid, ready for immediate service without additional accessory purchases.
• Heavy-duty 150 mm legs with adjustable feet allow precise levelling on uneven kitchen floors, improving stability and safety.

Key Features

• 450mm wide single pan electric fryer, 800 Series low back version (FNL)
• 27-litre oil capacity
• 31 kg per hour production rate
• Total power output: 17 kW
• Three individual 5.66 kW stainless steel heating elements
• Hinge-out counterbalanced heating elements for unobstructed pan access
• Mechanical thermostatic controls, 145–195°C temperature range
• Analog temperature display
• 32 mm (1¼ inch) drain valve
• Stainless steel open pan construction
• Bull nose welded 1.5 mm 304 stainless steel body
• 1.5 mm 304 stainless steel splashback
• 1.2 mm 304 stainless steel side panels
• Double skin door with 0.9 mm 304 stainless steel exterior
• 150 mm legs in 63 mm diameter heavy-duty 1.2 mm 304 stainless steel with adjustable feet
• Fully modular design for easy installation, cleaning and servicing
• Supplied with 2 standard baskets and a stainless steel lid
• Power supply: 17 kW | 3P+N+E | 400–415 V AC | 50/60 Hz
• Country of origin: New Zealand
• Dimensions: 450 mm (W) x 805 mm (D) x 1085 mm (H)
• Packed weight: 105 kg

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
