Overview

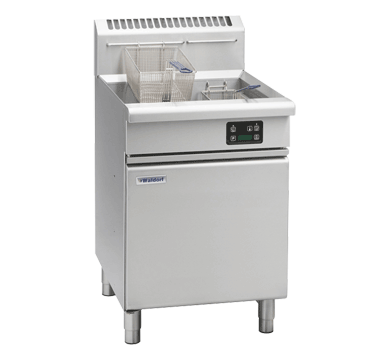

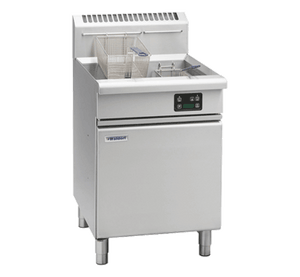

Waldorf FNL8130GE 800 Series 600mm Single Pan Gas Fryer Low Back Version

The Waldorf FNL8130GE is a commercial-grade single pan gas fryer from the 800 Series, designed for high-volume kitchens requiring consistent, efficient frying performance. Built in New Zealand from 304 stainless steel, this 600mm-wide unit delivers a combined burner output of 90MJ/hr across two 45MJ/hr infrared burners, providing rapid heat recovery and a production rate of 31kg per hour.

With a 31-litre oil capacity, digital electronic controls with a digital display, and a temperature range of 145 to 195°C, the FNL8130GE is engineered for straightforward operation and easy maintenance. The low back version suits kitchen configurations where a reduced splashback height is preferred, and the unit comes supplied with baskets to suit either two large or three standard load configurations.

Key Benefits

• High production rate of 31kg/hr keeps up with peak service demand without bottlenecks
• Two 45MJ/hr infrared burners deliver fast, even heat recovery between batches for consistent frying results
• Digital electronic controls with a digital display allow precise, repeatable temperature settings across the 145-195°C range
• 31-litre oil capacity reduces the frequency of oil changes during service, improving workflow efficiency
• Low back version provides installation flexibility for kitchens with specific overhead clearance or layout requirements
• Supplied with basket capacity for 2 large or 3 standard baskets, offering versatility for different menu items and portion sizes
• Constructed from 304 stainless steel for durability, hygiene compliance and long-term resistance to the demands of a commercial kitchen
• Compatible with both natural gas and LPG, giving operators flexibility across different sites and gas supply arrangements
• Designed for easy cleaning, installation and servicing, minimising downtime and reducing total cost of ownership

Key Features

• 800 Series 600mm single pan gas fryer in low back configuration
• 31-litre oil capacity
• Production rate of 31kg/hr
• Two 45MJ/hr infrared burners with a combined output of 90MJ/hr
• Temperature range: 145-195°C
• Digital electronic controls with digital display
• Compatible with natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Supplied with baskets: 2 large or 3 standard capacity
• Constructed from 304 stainless steel
• Integrated splashback included
• No undershelf included
• Electrical supply: 230-240Vac, 50Hz, 0.5A, 3-pin 10A cordset fitted (1P+N+E)
• Dimensions: 600mm (W) x 805mm (D) x 1085mm (H)
• Country of origin: New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Digital Electronic
• Display Type: Digital
