Overview

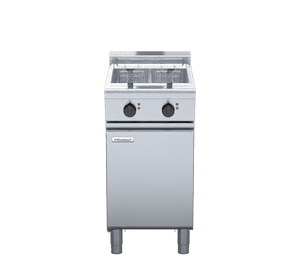

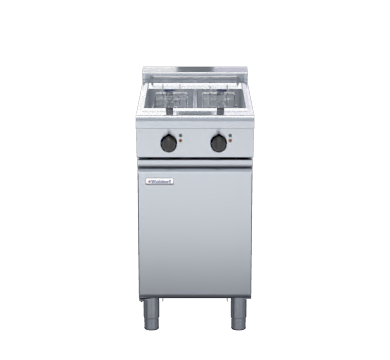

Waldorf FNL8224E 800 Series 450mm Twin Pan Electric Fryer Low Back Version

The Waldorf FNL8224E is a heavy-duty 450mm twin pan electric fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent output and straightforward operation. Each pan holds 12 litres of oil and the unit delivers a combined 17kW of power through six stainless steel heating elements, achieving a production rate of 31kg per hour to keep up with even the busiest service periods.

Built to a fully modular design for easy installation, servicing and cleaning, the FNL8224E features bull nose welded 304 stainless steel construction throughout, mechanical thermostatic controls and a low back configuration suited to ventilated canopy setups. Hinge-out counterbalanced heating elements, 25mm drain valves and fail-safe safety cut-outs make daily maintenance and safe operation straightforward for kitchen staff.

Key Benefits

• Twin pan configuration with 12 litres per pan allows two different products to be fried simultaneously, maximising throughput and menu flexibility.
• A 31kg per hour production rate ensures the fryer can sustain high-volume output during peak service without compromising food quality.
• Hinge-out counterbalanced heating elements make cleaning the oil pan quick and thorough, reducing downtime between services.
• Fail-safe over-temperature safety cut-outs and an element tilt switch that cuts power when elements are lifted protect both staff and equipment.
• Mechanical thermostats with a wide 90–200°C range and clearly marked controls give operators precise, reliable temperature management without complex electronics.
• Fully modular construction simplifies installation alongside other 800 Series equipment and allows straightforward access for servicing.
• 25mm drain valves speed up oil changes and pan cleaning, reducing labour time during kitchen changeovers.
• Low back (FNL) design integrates cleanly beneath canopy extraction systems, making it suitable for kitchens with specific ventilation layouts.
• Supplied with two standard baskets and a stainless steel lid as standard, so the unit is ready for immediate use upon installation.

Key Features

• 450mm wide twin pan electric fryer, 800 Series low back (FNL) model
• 12 litre oil capacity per pan, 24 litres total
• 17kW total power output; 3 x 2.83kW stainless steel heating elements per pan
• 3-phase power supply: 400–415Vac, 50/60Hz, 3P+N+E; L1/L2/L3 each 23.6A
• Production rate of 31kg per hour
• Thermostat range 90–200°C with mechanical thermostatic controls
• Large, easy-to-use control knobs with clearly visible temperature scale
• Indicator lights for power and heating status on each pan
• Fail-safe over-temperature safety cut-outs on each pan
• Element tilt switch automatically cuts heating when elements are lifted
• Hinge-out counterbalanced heating elements for easy pan access and cleaning
• 25mm (1 inch) drain valve per pan for efficient oil drainage
• Bull nose welded pan construction in 1.5mm 304 stainless steel
• Splashback in 1.5mm 304 stainless steel
• Side panels in 1.2mm 304 stainless steel
• Double skin door with 0.9mm 304 stainless steel exterior
• Heavy-duty 150mm legs in 63mm diameter 1.2mm 304 stainless steel tube with adjustable feet
• Fully modular design for simplified installation alongside other 800 Series equipment
• Supplied with 2 standard fry baskets and a stainless steel lid
• Overall dimensions: 450mm W x 805mm D x 1085mm H
• Packed weight: 116kg
• Manufactured in New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
