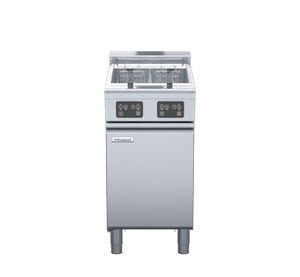

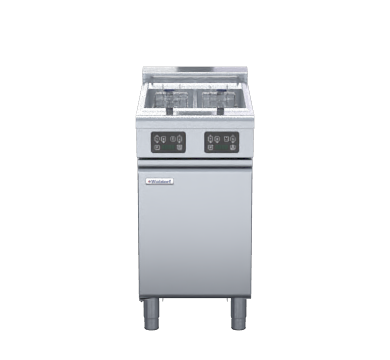

Waldorf FNL8224EE 800 Series 450mm Twin Pan Electric Fryer Low Back Version

The Waldorf FNL8224EE is a 450mm twin pan electric fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent, reliable frying output. With a combined 17kW power rating, 12 litres of oil capacity per pan, and a production rate of 31kg per hour, this unit handles continuous service with ease. The low back (FNL) configuration suits installations where overhead clearance or ventilation layout requires a reduced splashback height.

Construction throughout uses 304 stainless steel, including a bull nose welded 1.5mm pan, 1.5mm splashback, 1.2mm side panels, and a double-skin door with 0.9mm stainless exterior. Hinge-out counterbalanced heating elements and 25mm drain valves simplify daily cleaning and routine servicing, while fully modular design supports straightforward installation. The unit ships with two standard fry baskets and a stainless steel lid as standard inclusions.

Key Benefits

• 31kg per hour production rate sustains high-demand service periods without bottlenecks
• 12 litres of oil per pan allows generous batch sizes while keeping oil consumption manageable
• Hinge-out counterbalanced heating elements make cleaning the pan interior quick and thorough
• Two programmable basket timers per pan with countdown display and audible alarms reduce the risk of over- or under-cooked product
• Programmable melt cycles protect the heating elements when starting with solid-state oil or fat
• Fail-safe over-temperature safety cut-outs and an element tilt switch add an extra layer of operational safety
• Fully modular construction simplifies both installation alongside other 800 Series equipment and future servicing
• 25mm drain valves allow fast, controlled oil changes to minimise downtime between services
• Digital electronic thermostats with a wide range give operators precise control over diverse frying applications

Key Features

• 450mm wide twin pan electric fryer, 800 Series low back (FNL) model
• 17kW total power rating; 3 x 2.83kW stainless steel heating elements per pan
• Three-phase power supply: 3P+N+E, 400-415Vac, 50/60Hz; L1/L2/L3 each 23.6A
• 12 litre oil capacity per pan (24 litres total)
• 31kg per hour production rate
• Thermostat range 88-195°C with digital display electronic controls
• Two programmable basket timers per pan with countdown display and audible alarms
• Heating and basket drop indicator displays
• Programmable melt cycles for solid fat or oil start-up
• Fail-safe over-temperature safety cut-outs
• Element tilt switch automatically cuts heating when elements are raised
• Hinge-out counterbalanced heating elements for easy pan access and cleaning
• 25mm (1 inch) drain valves on each pan
• Bull nose welded 1.5mm 304 stainless steel pan construction
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter 1.2mm 304 stainless steel with adjustable feet
• Supplied standard with 2 fry baskets and a stainless steel lid
• Fully modular design compatible with the Waldorf 800 Series suite
• Low back version available for installations requiring reduced splashback height
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
