Overview

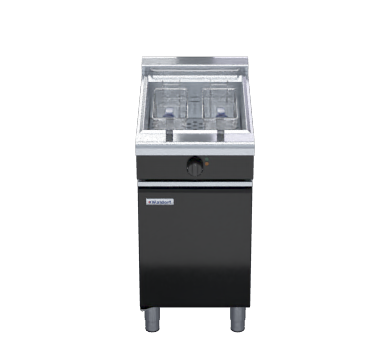

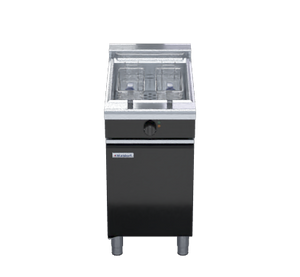

Waldorf FNLB8127E Bold 450mm Single Pan Electric Fryer Low Back Version

The Waldorf FNLB8127E is a 450mm wide single pan electric deep fryer from the Waldorf Bold range, purpose-built for high-volume commercial kitchens. Powered by three 5.66kW stainless steel heating elements delivering a combined 17kW output, it achieves a production rate of 31kg per hour with a 27-litre oil capacity, making it well suited to busy fish and chip shops, restaurants, and catering operations.

Constructed from 304 stainless steel throughout, the FNLB8127E features a bull nose welded pan, 1.5mm splashback, heavy-duty 150mm legs with adjustable feet, and a double skin door with stainless steel exterior. The unit ships with two standard baskets and a stainless steel lid, and its fully modular design supports easy cleaning, installation, and servicing. Default front panel finish is black vitreous enamel, with additional colour options available to suit your kitchen specification.

Key Benefits

• A 17kW heating capacity with a 31kg per hour production rate keeps pace with peak service demands and minimises customer wait times.
• Fast heat recovery between frying loads maintains consistent oil temperature, protecting food quality and reducing cooking time variability.
• Mechanical thermostatic controls with an analogue display allow straightforward temperature adjustment across a 145–195°C range without complicated programming.
• The 27-litre oil capacity and 32mm (1¼") drain valve simplify oil changes and daily cleaning, reducing labour during end-of-service routines.
• Fully modular construction means the unit can be installed as a standalone fryer or integrated into a Waldorf Bold suite, offering flexibility for kitchen layouts.
• Heavy-duty 304 stainless steel construction throughout resists corrosion and stands up to the rigours of continuous commercial use.
• Supplied standard with two fry baskets and a stainless steel lid, the unit is operational from day one without additional accessory purchases.
• Adjustable feet on the 150mm heavy-duty legs allow for levelling on uneven floors, ensuring stable operation and correct oil distribution in the pan.

Key Features

• 450mm wide single pan electric deep fryer from the Waldorf Bold range
• 27-litre oil capacity
• 31kg per hour production rate
• Three 5.66kW stainless steel heating elements totalling 17kW
• Power supply: 400–415V AC, 3 Phase + Neutral + Earth, 50/60Hz; L1/L2/L3 each 23.6A
• Thermostatic temperature control, 145–195°C range, analogue display
• Mechanical controls for simple day-to-day operation
• 32mm (1¼") drain valve for efficient oil drainage and cleaning
• Bull nose welded 1.5mm 304 stainless steel pan
• 1.5mm 304 stainless steel splashback (low back version)
• 1.2mm 304 stainless steel side panels
• Double skin door with 0.9mm 304 stainless steel exterior
• Black vitreous enamel finish to front panels; alternative colour options available
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Supplied with 2 standard fry baskets and a stainless steel lid
• Fully modular design for easy integration into a Waldorf Bold suite
• Designed for easy cleaning, installation, and field servicing
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
