Overview

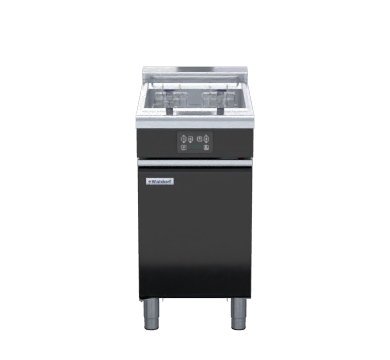

Waldorf FNLB8127EE Bold 450mm Single Pan Electric Fryer Low Back Version

The Waldorf FNLB8127EE is a 450mm single pan electric deep fryer from the Waldorf Bold range, purpose-built for high-volume commercial kitchens. With a 27-litre oil capacity, 17kW of heating power delivered through three 5.66kW stainless steel elements, and a production rate of 31kg per hour, this fryer is engineered to maintain consistent output during sustained service periods.

Constructed from 304 stainless steel throughout, the FNLB8127EE features digital electronic temperature control with two basket timers, a 32mm drain valve for fast and clean oil changes, and a fully modular low back configuration that simplifies installation and servicing. Supplied standard with two baskets and a stainless steel lid, and available in black vitreous enamel front panels with other colour options on request.

Key Benefits

• 31kg per hour production rate sustains high-volume frying output even during peak service
• Three independent 5.66kW heating elements deliver rapid heat recovery between batches, minimising wait times
• Digital display with two basket timers enables precise, consistent cooking results across multiple batches
• 32mm drain valve allows fast, mess-free oil changes to reduce downtime between service periods
• Fully modular design simplifies integration into existing kitchen suites and makes future servicing straightforward
• Generous 27-litre oil capacity reduces the frequency of oil top-ups during extended service
• Heavy-duty 304 stainless steel construction throughout ensures durability and easy cleaning in demanding kitchen environments
• 150mm adjustable legs provide stable, level installation on uneven floors
• Supplied with two standard baskets and a stainless steel lid, ready for immediate use out of the box

Key Features

• 450mm wide single pan electric deep fryer, low back version
• 27-litre oil capacity
• 17kW total power output via three 5.66kW stainless steel heating elements
• Production rate of 31kg per hour
• Digital display electronic temperature control with two basket timers
• Temperature range: 145°C to 195°C
• Power supply: 415V three phase (3P+N+E), 400-415Vac, 50/60Hz; L1/L2/L3 each 23.6A
• 32mm (1¼ inch) drain valve for efficient oil drainage and cleaning
• Stainless steel open pan construction for easy cleaning and servicing
• Bull nose welded 1.5mm 304 stainless steel body
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Black vitreous enamel finish to front panels; other colour options available
• Supplied standard with two baskets and a stainless steel lid
• Waldorf Bold range; fully modular configuration
• Country of origin: New Zealand
• Dimensions: 450mm (W) x 805mm (D) x 1085mm (H)
• Packed weight: 105kg

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
