Overview

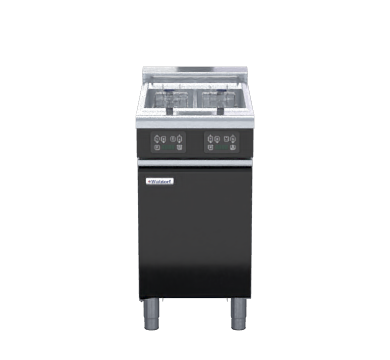

Waldorf FNLB8224EE Bold 450mm Twin Pan Electric Fryer Low Back Version

The Waldorf FNLB8224EE is a 450mm twin pan electric deep fryer from the Waldorf Bold range, engineered for high-volume commercial kitchen operations. Each pan holds 12 litres of oil and the unit delivers a production rate of 31kg per hour, making it well suited to busy fish and chip shops, hotels, pubs and institutional catering environments.

Constructed from heavy-duty 304 stainless steel throughout, this low back version features digital display electronic controls, hinge-out counterbalanced heating elements for straightforward cleaning and servicing, and a fully modular design that simplifies installation and future maintenance. The default colour is black with vitreous enamel finish to the front panels, and other colour options are available to suit your kitchen fit-out.

Key Benefits

• High 31kg per hour production rate sustains output during peak service periods without slowing down the kitchen.
• Two independent 12-litre pans allow different products to be fried simultaneously at separate temperatures, improving menu flexibility.
• Programmable basket timers with countdown display and audible alarms per pan reduce the risk of over-cooking and free up operator attention.
• Hinge-out counterbalanced heating elements make cleaning, inspection and servicing quick and safe, reducing downtime between services.
• Fail-safe over-temperature safety cut-outs and an element tilt switch that cuts power on element lift protect both staff and equipment.
• Programmable melt cycles allow solid-fat users to bring oil up to temperature safely without manual monitoring.
• 25mm drain valves on each pan speed up oil changes and simplify end-of-day cleaning routines.
• Fully modular construction means the unit can be paired with other Waldorf Bold equipment to build a cohesive, matched cooking suite.
• Supplied with two standard baskets and a stainless steel lid, so the unit is ready to operate straight from delivery.

Key Features

• 450mm wide twin pan electric deep fryer, low back version, from the Waldorf Bold range
• 12 litre oil capacity per pan (24 litres total)
• Production rate: 31kg per hour
• Three 2.83kW stainless steel heating elements per pan
• Total power rating: 17kW, 3P+N+E, 400-415Vac, 50/60Hz (L1/L2/L3 each 23.6A)
• 415V three-phase power supply
• Digital display electronic thermostats with a range of 88-195°C
• Two programmable basket timers per pan, each with countdown display and audible alarm
• Heating and basket drop indicator displays
• Programmable melt cycles for solid-fat applications
• Fail-safe over-temperature safety cut-outs
• Element tilt switch automatically cuts heating when elements are lifted
• Hinge-out counterbalanced heating elements for easy access during cleaning and servicing
• 25mm (1 inch) drain valves on each pan
• Stainless steel pan construction with 10-year limited warranty
• Bull nose welded 1.5mm 304 stainless steel body
• Splashback in 1.5mm 304 stainless steel
• Side panels in 1.2mm 304 stainless steel
• Double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Black vitreous enamel finish to front panels; additional colour options available
• Supplied with two standard baskets and a stainless steel lid
• Fully modular design for integration into a Waldorf Bold suite
• Manufactured in New Zealand
• Dimensions: 450mm W x 805mm D x 1085mm H
• Packed weight: 116kg
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
