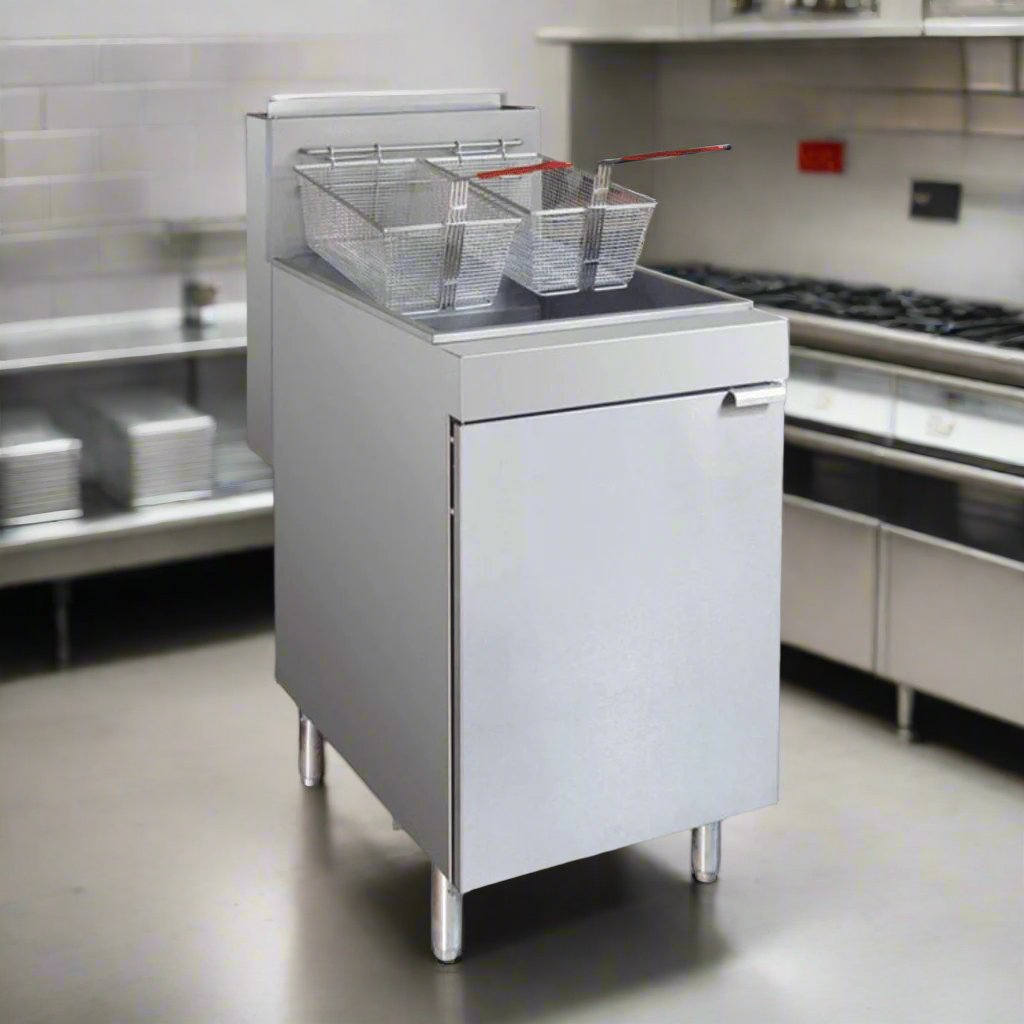

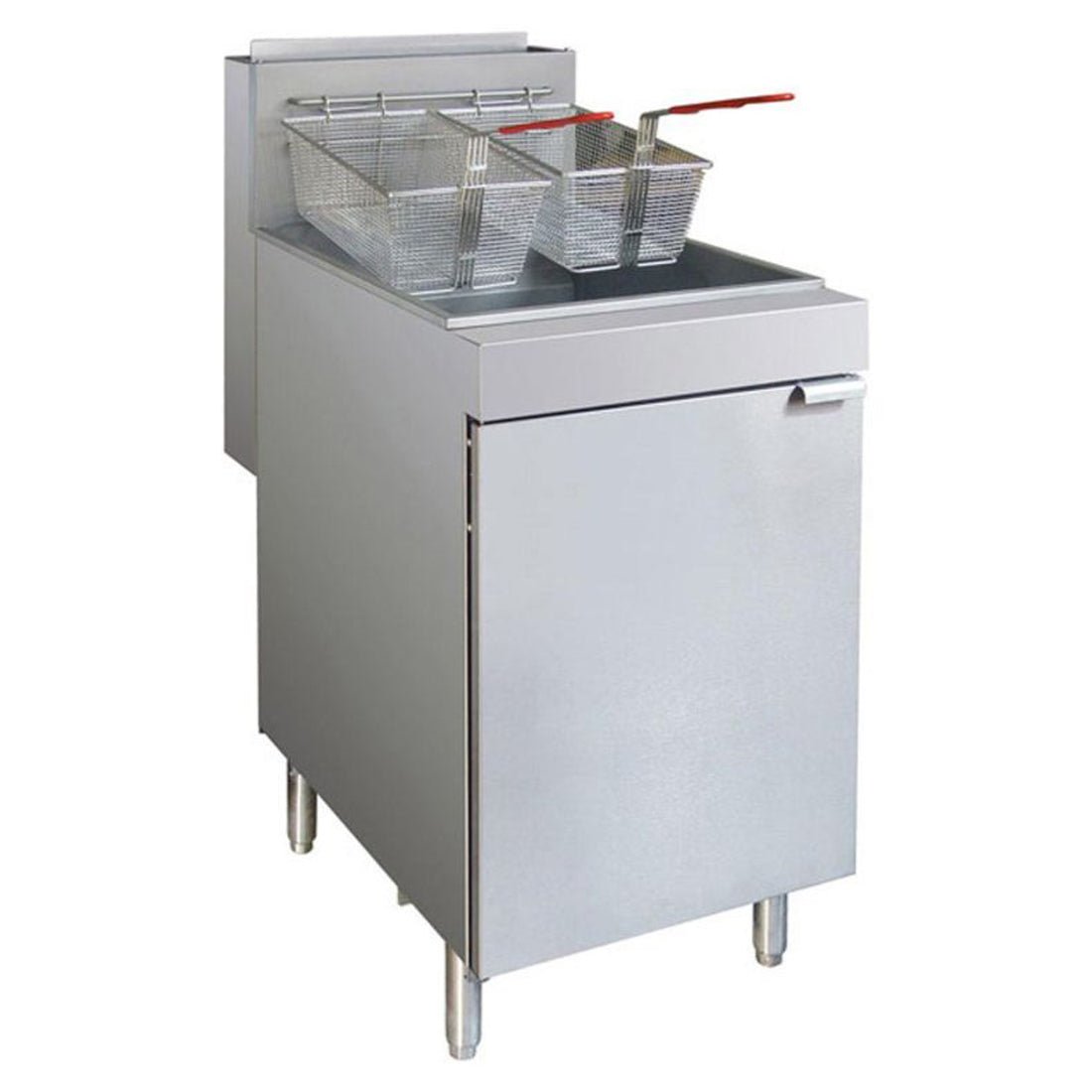

Gasmax RC400ELPG Superfast LPG Gas Tube Fryer

The Gasmax RC400ELPG is a heavy-duty single-tank LPG gas tube fryer engineered for high-volume commercial frying across restaurants, takeaways, and similar food service environments. Its 120MJ multi-jet burner system achieves a production rate of 35 kg/hr with a gas consumption of 110 MJ/h, delivering rapid heat recovery and consistent output when preparing large quantities of fried fish, chips, and other menu items.

Built entirely from stainless steel — covering the front, door, tank, and trim — the RC400ELPG is designed for straightforward daily cleaning and lasting durability. A cold zone sits below the burner tubes to trap food particles away from the cooking oil, extending oil life and reducing ongoing running costs. The unit operates without any electrical connection, relying on reliable millivolt mechanical controls, and carries IAPMO approval number GMK10174.

Key Benefits

• A production rate of 35 kg/hr sustains output during peak service periods in busy commercial kitchens
• The cold zone positioned beneath the burner tubes collects food debris before it can degrade the cooking oil, keeping oil costs down
• Every serviceable component faces the front of the unit, so maintenance and parts replacement can be completed quickly without repositioning the fryer
• Millivolt mechanical controls require no electrical supply and deliver dependable temperature management across a range of 120°C to 200°C
• Flame failure protection and an IAPMO-approved Robshaw valve (approval number GMK10174) provide essential built-in safety throughout operation
• A 32mm full-bore ball valve on the drain port enables fast, blockage-free oil changes and end-of-service clean-down
• The stainless steel basket hanger detaches completely from the unit, making it simple to clean thoroughly around the tank area
• Adjustable legs let the fryer be set level accurately on uneven kitchen floors
• Backed by a 2-year parts and labour warranty, with an additional 2-year parts-only warranty available upon registration within 14 days of invoice

Key Features

• Single-tank LPG gas tube fryer configuration
• 22-litre oil capacity with a 26-litre tank capacity
• 120MJ multi-jet burner system with 110 MJ/h gas consumption
• 35 kg/hr production rate
• Temperature range: 120°C to 200°C
• Millivolt mechanical controls — no electrical connection required for operation
• Full stainless steel construction: front, door, tank, and trim
• Stainless steel lid supplied as standard

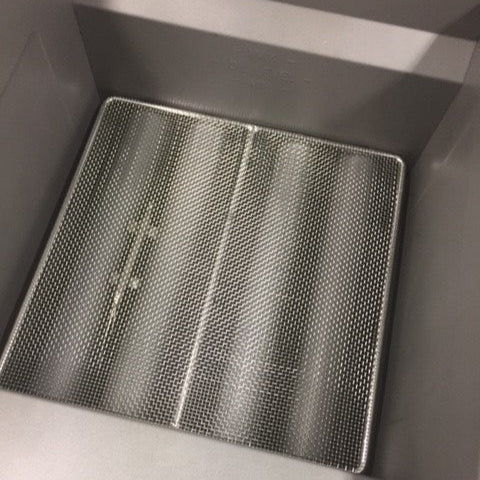

• Supplied with 2 frying baskets
• Removable stainless steel basket hanger for unobstructed access when cleaning around the tank

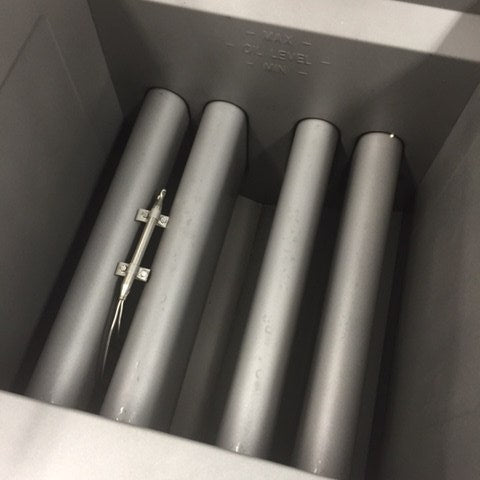

• Cold zone below the burner tubes to trap food particles and extend oil life
• 32mm full-bore ball valve drain port designed to prevent blockages during oil drainage
• ½-inch gas inlet
• IAPMO approved, approval number GMK10174
• Robshaw valve
• Integrated flue deflector
• Flame failure protection fitted as standard
• Adjustable legs for levelling on uneven surfaces
• All components positioned for straightforward front-of-unit access and replacement
• Net weight: 50 kg
• Dimensions: 1195mm (H) x 395mm (W) x 759mm (D)
• 2-year parts and labour warranty, plus a further 2-year parts-only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 394
• Depth (mm): 759
• Height (mm): 1195
• Weight (kg): 78
• Packed Width (mm): 800
• Packed Depth (mm): 600
• Packed Height (mm): 1200
• Shipping Weight: 67
• Power Delivery: 110 MJ/h
• Power (kW): 110
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
