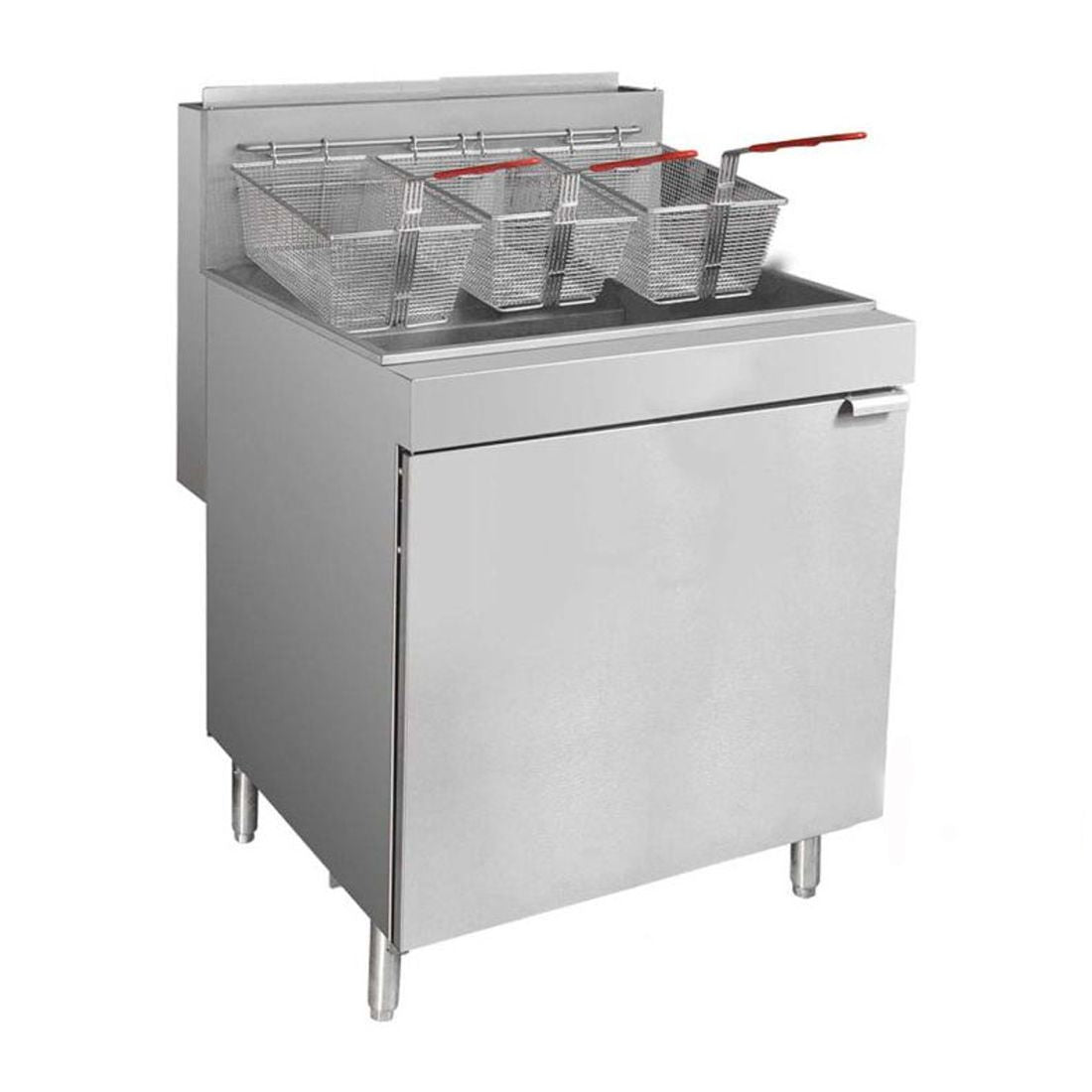

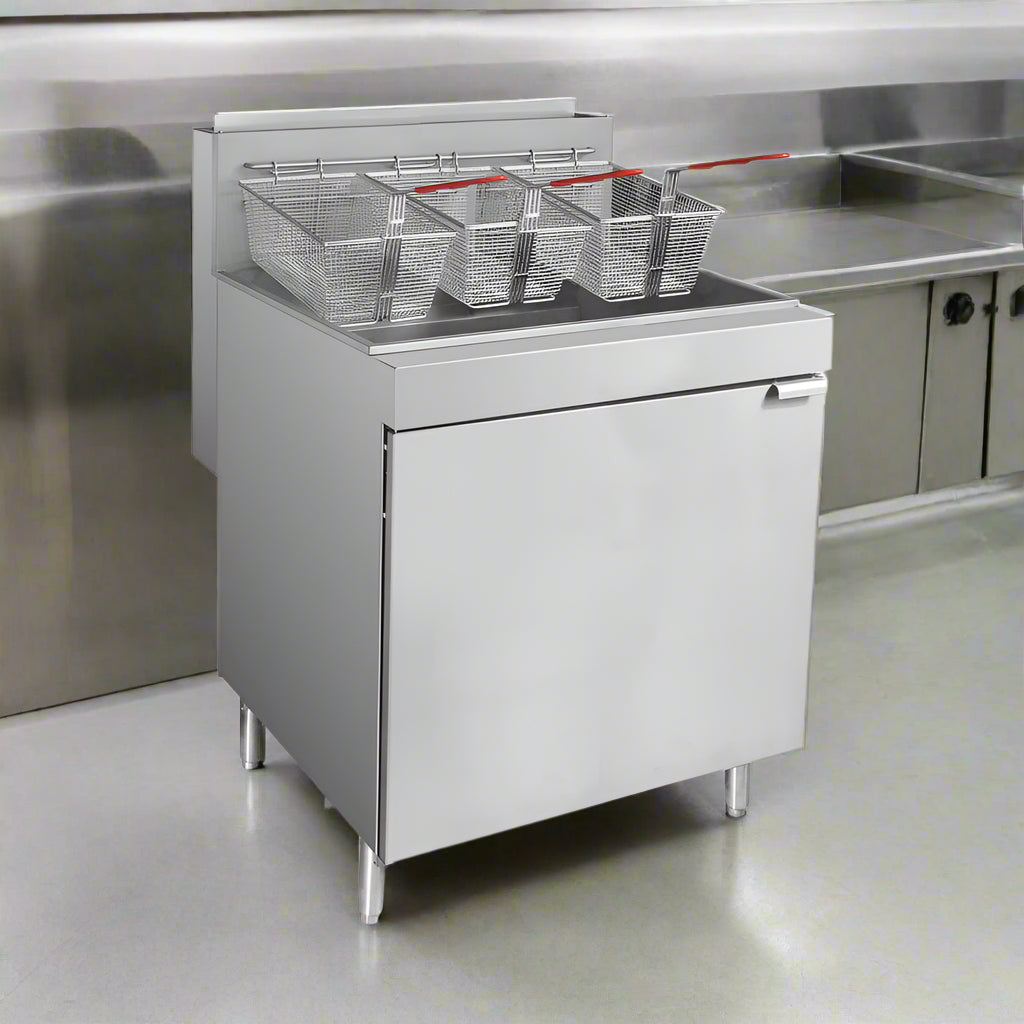

Gasmax RC500ELPG Superfast LPG Gas Tube Fryer

The Gasmax RC500ELPG is a heavy-duty single-tank LPG gas tube fryer built for high-volume commercial kitchens, restaurants, and takeaway operations. Powered by a 150MJ multi-jet burner system with a 43kg/hr production rate, it delivers rapid heat recovery and consistent frying results across a temperature range of 120°C to 200°C, making it equally suited to fish and chips, snacks, and a wide variety of fried foods.

Constructed entirely from stainless steel across the front, door, tank, and trim, the RC500ELPG is designed for durability and straightforward end-of-service cleaning. A 37-litre oil capacity and 44-litre tank, combined with a cold zone beneath the burner tubes, a 32mm full-port drain valve, and a removable stainless steel basket hanger, make oil management and daily maintenance as efficient as possible. The fryer ships with three baskets and a stainless steel lid as standard, and carries IAPMO certification for peace of mind in commercial installations.

Key Benefits

• High 43kg/hr production rate sustains output during peak service periods without compromising food quality
• 150MJ multi-jet burner system delivers fast heat recovery so frying can continue with minimal downtime between batches
• Cold zone beneath the burner tubes traps food particles away from the cooking area, extending oil life and reducing oil costs
• 32mm ball-type full-port drain valve allows fast, clog-free oil drainage for quicker end-of-service cleaning
• All components are accessible and replaceable from the front, minimising service time and reducing maintenance disruption
• Millivolt mechanical controls and a standby pilot provide simple, reliable ignition and consistent temperature management without reliance on electrical power
• Flame failure protection and a Robshaw valve deliver built-in safety as standard, supporting compliance in commercial kitchen environments
• Adjustable legs allow the unit to be levelled on uneven floors, ensuring stable operation across a variety of kitchen layouts
• Stainless steel construction throughout simplifies cleaning and stands up to the rigours of a busy commercial kitchen

Key Features

• 37-litre oil capacity with a 44-litre tank
• 150MJ multi-jet burner system
• Gas consumption: 137.5MJ/h
• Production rate: 43kg/hr
• Temperature range: 120°C to 200°C
• Millivolt mechanical controls for reliable, electricity-independent operation
• Standby pilot for easy start-up
• Flame failure protection as standard
• Robshaw valve included
• IAPMO approved, certification #GMK10174
• Built-in flue deflector
• Cold zone below burner tubes collects food particles and extends oil life
• 32mm ball-type full-port drain valve prevents clogging during oil changes
• Stainless steel construction across front, door, tank, and trim
• Stainless steel lid supplied as standard
• Three fry baskets included
• Stainless steel basket hanger lifts off for easy cleaning
• All components accessible and replaceable from the front
• ½-inch gas inlet
• Adjustable legs for levelling on uneven surfaces
• Net weight: 55kg
• Dimensions: 533mm (W) x 759mm (D) x 1195mm (H)
• Warranty: 2 years parts and labour plus 2 years parts only for products registered within 14 days of invoice

Specifications

• Width (mm): 534
• Depth (mm): 759
• Height (mm): 1195
• Weight (kg): 85
• Packed Width (mm): 800
• Packed Depth (mm): 600
• Packed Height (mm): 1200
• Shipping Weight: 78
• Power Delivery: 137.5 MJ/h
• Power (kW): 137.5
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
