Overview

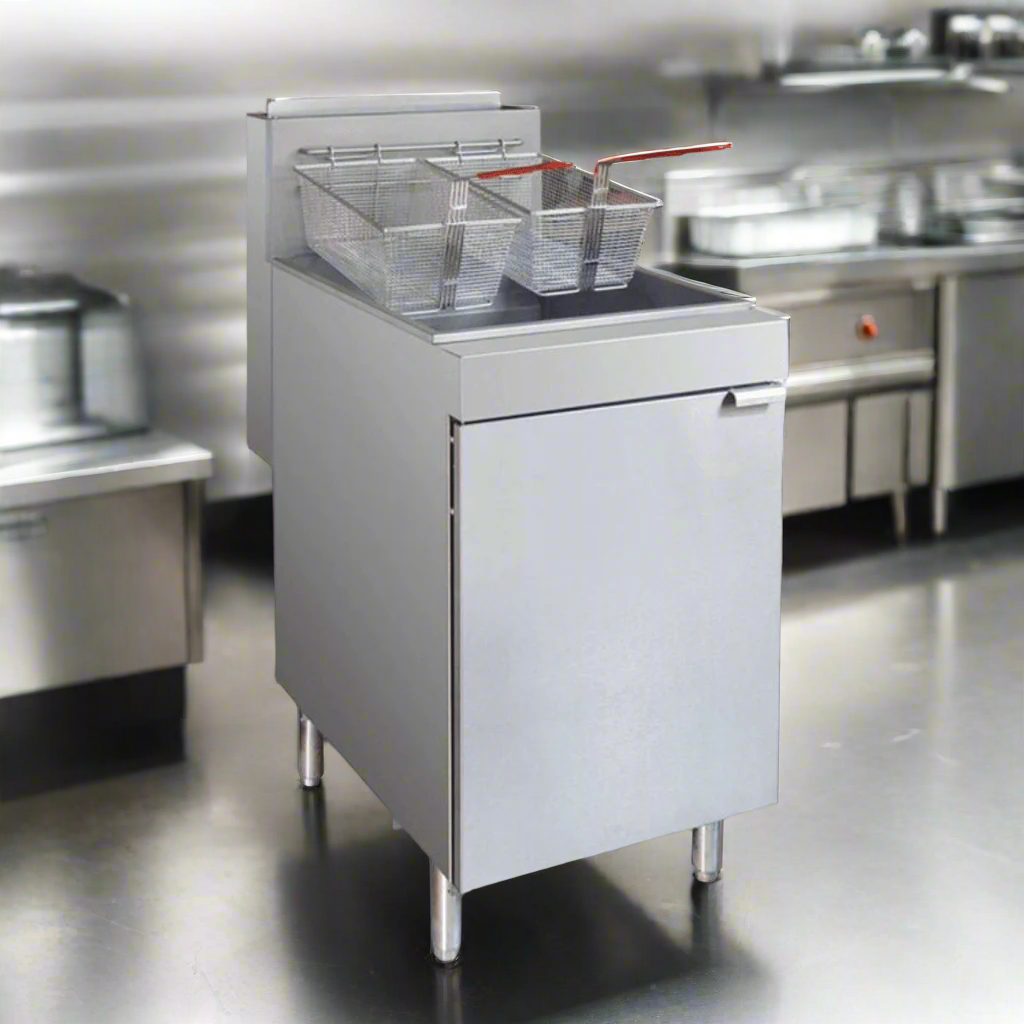

Gasmax RC400E Superfast Natural Gas Tube Fryer

The Gasmax RC400E is a high-output single-tank natural gas tube fryer built for demanding commercial kitchens, takeaways, and restaurants that need to produce large volumes of perfectly fried fish, chips, and other fried foods consistently throughout service. Its 120MJ multi-jet burner system delivers superfast heat recovery at a production rate of 35 kg per hour, ensuring minimal waiting time between batches and keeping pace with even the busiest service periods.

Constructed throughout in stainless steel — including the front, door, tank, and trim — the RC400E is designed for longevity, easy cleaning, and straightforward servicing. Millivolt mechanical controls provide reliable, no-fuss temperature regulation from 120°C to 200°C, while safety-focused features including flame failure protection, a built-in flue deflector, and a cold zone below the burner tubes make this fryer a practical, operator-friendly investment for any commercial kitchen.

Key Benefits

• High 35 kg/hr production rate keeps output moving during peak service without compromising food quality.
• Superfast heat recovery between batches reduces downtime and maintains consistent frying temperatures.
• Cold zone below the burner tubes catches food particles away from the oil, significantly extending oil life and reducing ingredient costs.
• A 32mm full-bore ball valve on the drain outlet is engineered to resist blockages, making post-service oil changes quick and clean.
• Every serviceable part sits within reach from the front of the unit, so technicians can carry out maintenance with minimal disruption to kitchen operations.
• Millivolt mechanical controls are simple to operate and maintain, requiring no electrical connection for ignition.
• Stainless steel basket hanger lifts off completely for thorough, hassle-free cleaning after service.
• Adjustable legs allow the unit to be levelled on uneven kitchen floors for safe, stable operation.
• Supplied ready to use with two baskets and a stainless steel lid, so there is no need for additional purchases before first use.

Key Features

• Oil capacity: 22 litres; tank capacity: 26 litres
• Production rate: 35 kg/hr
• Temperature range: 120°C to 200°C

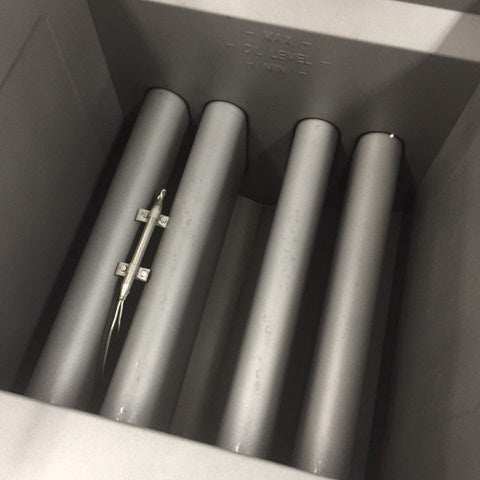

• 120MJ multi-jet burner system with 4-tube / 4-burner configuration
• Reliable Millivolt mechanical controls — no electrical supply required for operation
• Flame failure protection included as standard
• Built-in flue deflector
• Cold zone below burner tubes captures food particles to protect oil quality and extend oil life
• Drain fitted with a 32mm full-bore ball valve designed to prevent clogging for fast, clean oil drainage
• All stainless steel construction — front, door, tank, and trim
• Stainless steel lid supplied as standard

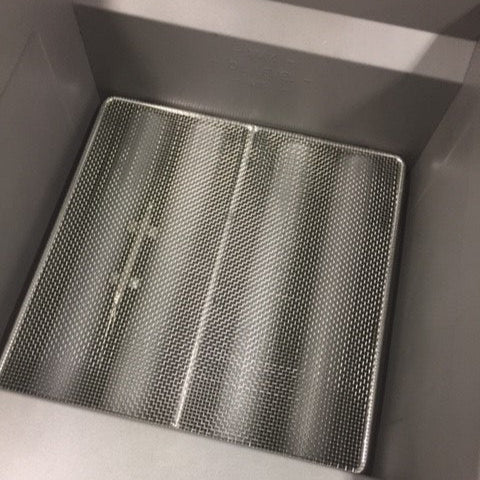

• Supplied with 2 stainless steel frying baskets
• Stainless steel basket hanger lifts off completely for easy cleaning
• All serviceable components are within easy reach and individually replaceable via the front panel
• ½ inch gas inlet
• Adjustable legs for levelling on uneven surfaces
• IAPMO approved #GMK10174
• AGA approval #7863
• Robshaw valve
• Net weight: 50 kg
• Warranty: 2 Years Parts and Labour plus 2 Years Parts Only for products registered within 14 days of invoice

Specifications

• Width (mm): 394
• Depth (mm): 759
• Height (mm): 1195
• Weight (kg): 78
• Packed Width (mm): 800
• Packed Depth (mm): 600
• Packed Height (mm): 1200
• Shipping Weight: 67
• Power Delivery: 120MJ/h
• Power (kW): 120
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Fuel Type: Gas
