Overview

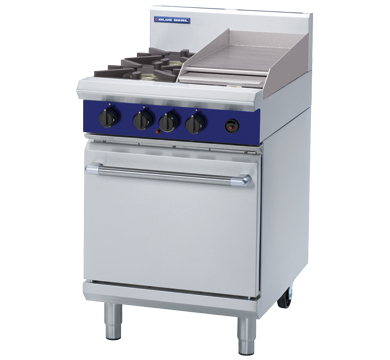

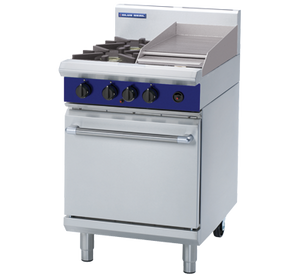

Blue Seal G504C Evolution Series 600mm Gas Range Static Oven

The Blue Seal G504C Evolution Series is a 600mm commercial gas range combining a two-burner open cooktop, a 300mm griddle, and a 1/1 GN gas static oven into a single robust unit suited to high-demand commercial kitchen environments. With a thermostatic oven control range of 100–270°C and flame failure protection across all burners, the G504C delivers consistent, safe performance for baking, roasting, and general cooking throughout the service day.

Constructed with a heavy-duty stainless steel finish and a fully welded, vitreous enamelled oven liner, the G504C is built to withstand the rigours of daily commercial use while remaining straightforward to clean and maintain. The unit is available in both Natural Gas and LPG configurations, with the 300mm griddle positioned on the right-hand side as standard, and ships with adjustable feet and two additional rollers for flexible installation and repositioning.

Key Benefits

• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, keeping kitchen staff safe during busy service periods.
• The 1/1 GN-compatible static oven accepts standard Gastronorm containers, simplifying batch cooking, baking, and roasting workflows.
• Precise thermostatic control between 100°C and 270°C allows consistent oven temperatures for a wide variety of menu items without constant monitoring.
• Two 28MJ/hr open burners deliver high heat output for rapid boiling, sautéing, and wok cooking, while the dedicated 20MJ/hr griddle burner provides even heat across the 300mm cooking surface.
• Removable cast iron burners and vitreous enamel pot stands are easy to lift out for thorough cleaning, reducing downtime between services.
• The fully welded vitreous enamelled oven interior resists staining and grease build-up, making end-of-day cleaning faster and more effective.
• Adjustable feet and two additional rollers make levelling and repositioning straightforward, easing both initial installation and future kitchen reconfiguration.
• Available in Natural Gas or LPG, the G504C can be matched to existing gas infrastructure without requiring additional conversion kits.

Key Features

• 600mm wide modular gas range combining cooktop and static oven in one unit
• Two 28MJ/hr open burners on the cooktop
• One 20MJ/hr dedicated griddle burner with 300mm griddle, positioned right-hand side as standard
• 1/1 GN gas static oven accommodating standard Gastronorm containers
• Thermostatic oven control with a temperature range of 100–270°C
• Flame failure protection fitted to all burners
• Heavy-duty stainless steel exterior finish
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands for durability and ease of cleaning
• Fully welded oven cavity with vitreous enamel lining for hygienic, low-maintenance interior
• Drop-down oven door with welded frame for structural rigidity
• Cool-touch stainless steel oven door handle for operator safety
• Heavy-duty reinforced control knobs designed for repeated heavy use
• Adjustable feet and two additional rollers for levelling and mobility
• Available in Natural Gas or LPG configurations — gas type must be specified at time of ordering
• Dimensions: 600mm wide x 812mm deep x 1085mm high (including splashback)

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Shipping Weight: 210
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
