Overview

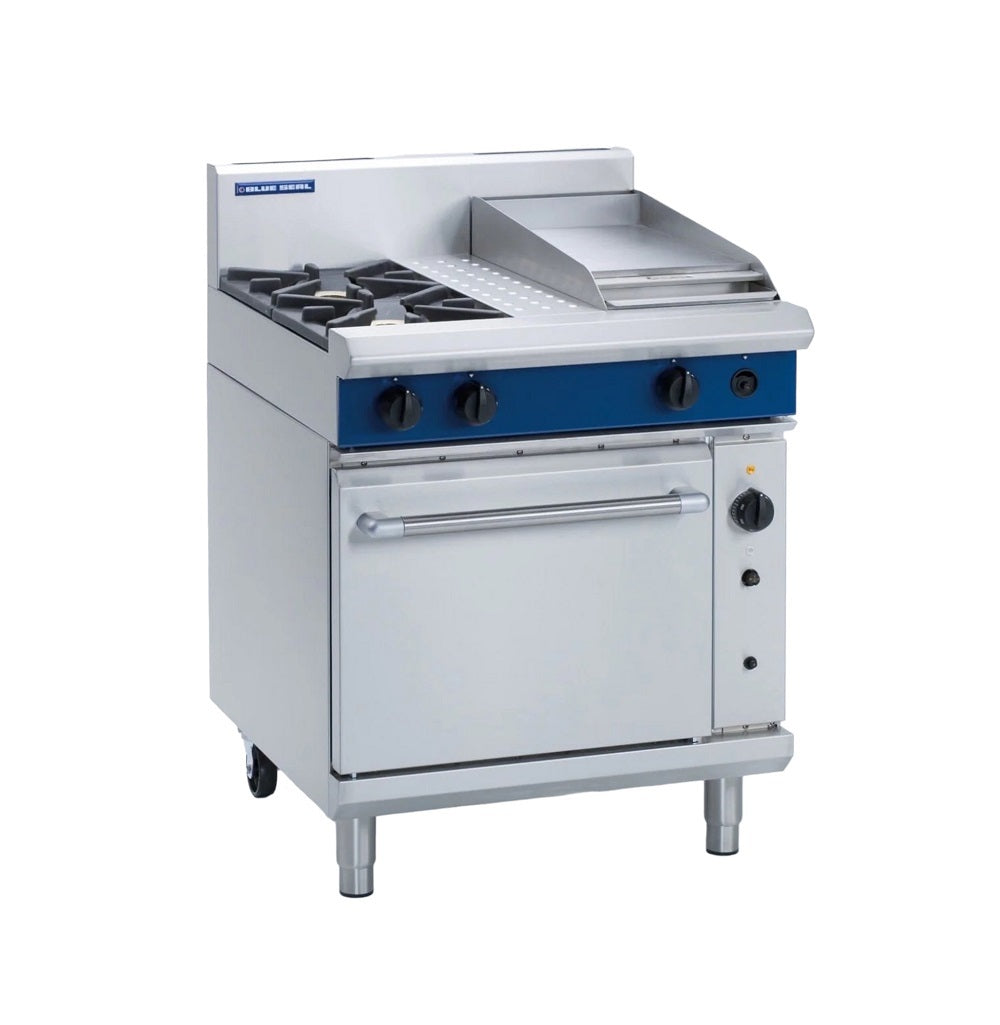

Blue Seal G505C Evolution Series 750mm Gas Range Static Oven

The Blue Seal G505C is a 750mm commercial gas range from the Evolution Series, combining a two-burner cooktop and a 300mm right-hand griddle with an integrated 1/1 GN gas static oven. Delivering a total gas rating of 106 MJ/hr (29.4 kW), it suits cafés, restaurants, hotels, and catering kitchens that need flexible, high-output cooking across a compact footprint.

Built to withstand the demands of commercial kitchen service, the G505C features heavy-duty stainless steel construction throughout, a fully welded and vitreous enamelled oven liner, flame failure protection on all burners, and a drop-down oven door with a cool-touch stainless steel handle. As part of the modular Blue Seal Evolution Series, it integrates readily with other Blue Seal cooking equipment to form a complete professional kitchen suite. Available in Natural Gas or LPG — please specify your preferred gas type when ordering.

Key Benefits

• Two high-output 28 MJ/hr open burners provide rapid heat recovery and precise flame control for boiling, simmering, sautéing, and stockpot work.
• The 300mm right-hand griddle with a dedicated 20 MJ/hr burner adds versatile flat-top cooking without requiring a separate appliance, saving valuable bench space.
• The integrated 1/1 GN static oven with 80–300°C thermostatic control delivers consistent, even heat for roasting, baking, and reheating across standard gastronorm trays.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, protecting kitchen staff and complying with commercial safety requirements.
• Vitreous enamelled oven liner and cast iron pot stands resist staining and absorb spills easily, reducing cleaning time during and after busy service periods.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely and repositioned for cleaning or servicing without heavy lifting.
• Removable cast iron burners and heavy-duty reinforced control knobs are designed for straightforward access, simplifying routine maintenance and replacement.
• The 750mm footprint suits kitchens where space is at a premium while still providing a full-featured cooktop, griddle, and oven in a single unit.
• Modular Evolution Series compatibility allows the G505C to be paired with matching Blue Seal equipment for a cohesive, professional kitchen line-up.

Key Features

• Two-burner cooktop with 300mm right-hand griddle and integrated gas static oven in a 750mm-wide unit
• 2 x 28 MJ/hr open gas burners for high-output hob cooking
• 1 x 20 MJ/hr griddle burner for flat-top cooking
• Total gas rating: 106 MJ/hr (29.4 kW)
• 1/1 GN capacity gas static oven
• 80–300°C thermostatic oven temperature control
• Flame failure protection on all burners
• Heavy-duty stainless steel exterior finish
• Removable heavy-duty cast iron burners with vitreous enamel cast iron pot stands
• Forged brass burner caps for efficient heat distribution and long-term durability
• Heavy-duty reinforced, heat-resistant commercial control knobs
• Drop-down oven door with welded frame construction
• Fully welded and vitreous enamelled oven liner for easy cleaning and durability
• Cool-touch stainless steel oven door handle
• Adjustable feet plus two additional rollers for levelling and repositioning
• Removable spill trays for simplified cleaning
• Griddle positioned on right-hand side as standard
• Available in Natural Gas or LPG configurations
• Dimensions: 750mm W x 812mm D x 915mm H (including splashback: 1085mm H)
• Part of the modular Blue Seal Evolution Series for seamless kitchen integration

Specifications

• Width (mm): 750
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
