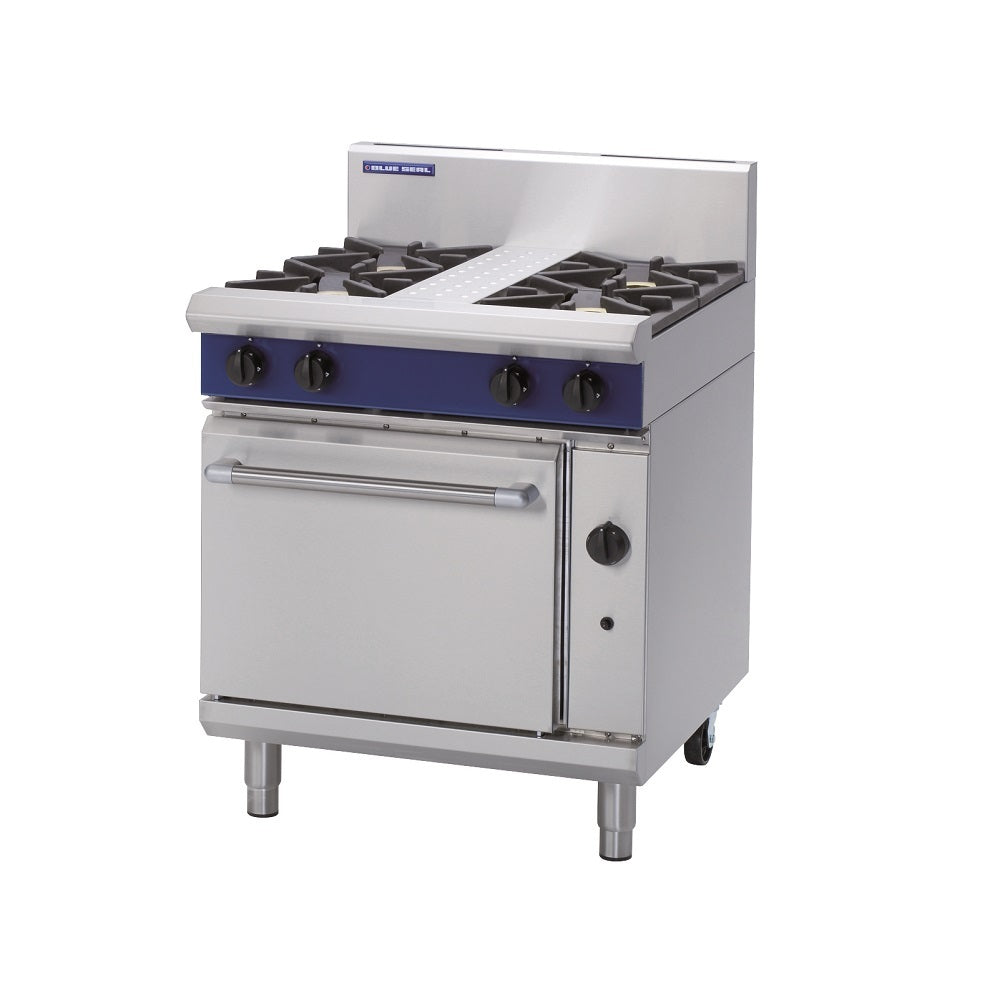

Blue Seal G505D Evolution Series 750mm Gas Range Static Oven

The Blue Seal G505D Evolution Series is a 750mm freestanding commercial gas range combining a four-burner open cooktop with an integrated 1/1 GN gas static oven, purpose-built for restaurants, cafés, hotels, and high-volume catering kitchens. Manufactured in New Zealand from 304 stainless steel, it delivers powerful, consistent cooking performance across both the cooktop and oven cavity, with a thermostatic control range of 80–300°C and a total gas rating of 142 MJ/hr (39.4 kW).

Designed for practical day-to-day commercial use, the G505D features flame failure protection on every burner, a fully welded and vitreous enamelled oven liner with cast iron sole plates for even heat distribution, and a drop-down door with a cool-touch stainless steel handle. Its modular 750mm footprint integrates seamlessly into Blue Seal Evolution Series kitchen suites, while adjustable feet, two additional rollers, and easy-access service panels make installation, repositioning, and routine maintenance straightforward.

Key Benefits

• Four 28 MJ/hr open burners provide rapid, powerful heat output for boiling, simmering, sautéing, frying, and stockpot work across a variety of cookware sizes.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, improving safety during busy service periods.
• The integrated 1/1 GN static oven with cast iron sole plates ensures even, consistent heat distribution for roasting, baking, and reheating without hot spots.
• Vitreous enamel cast iron pot stands and a fully enamelled oven liner resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Thermostatic control from 80–300°C gives cooks precise temperature management across a wide range of oven cooking applications.
• Adjustable feet combined with two additional rollers make levelling simple and allow the unit to be repositioned on the kitchen floor with minimal effort.
• Heavy-duty reinforced control knobs and a drop-down oven door with a welded frame are built to withstand repeated use in demanding commercial environments.
• Available in both natural gas and LPG configurations, giving operators flexibility to suit existing gas supply infrastructure.
• As part of the modular Evolution Series, the G505D pairs with compatible Blue Seal cooking suites for a cohesive, professional kitchen layout.

Key Features

• Four-burner cooktop integrated on a gas range static oven platform, 750mm wide
• 4 x 28 MJ/hr high-output open gas burners
• 1/1 GN capacity integrated gas static oven
• Thermostatic oven control range: 80–300°C
• Total gas rating: 142 MJ/hr (39.4 kW)
• Gas connection: R 3/4 (BSP) male; available in natural gas or LPG
• Flame failure safety protection on all burners
• Removable heavy-duty cast iron burners with vitreous enamel cast iron pot stands
• Cast iron sole plates in the oven cavity for even heat distribution
• Fully welded oven liner with vitreous enamel coating for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced heat-resistant control knobs
• 165mm splashback included
• 2 oven shelves included
• 304 stainless steel construction throughout
• Adjustable feet plus 2 additional rollers for levelling and repositioning
• Freestanding, freestanding installation type
• Dimensions: 750mm W x 812mm D x 1085mm H (including splashback); base unit height 915mm
• Modular design compatible with Blue Seal Evolution Series cooking suites
• Manufactured in New Zealand
• Easy-access design for cleaning, installation, and servicing

Specifications

• Width (mm): 750
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 250
• Packed Width (mm): 795.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.868021000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Cooking Surface Area (mm): 750 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
