Overview

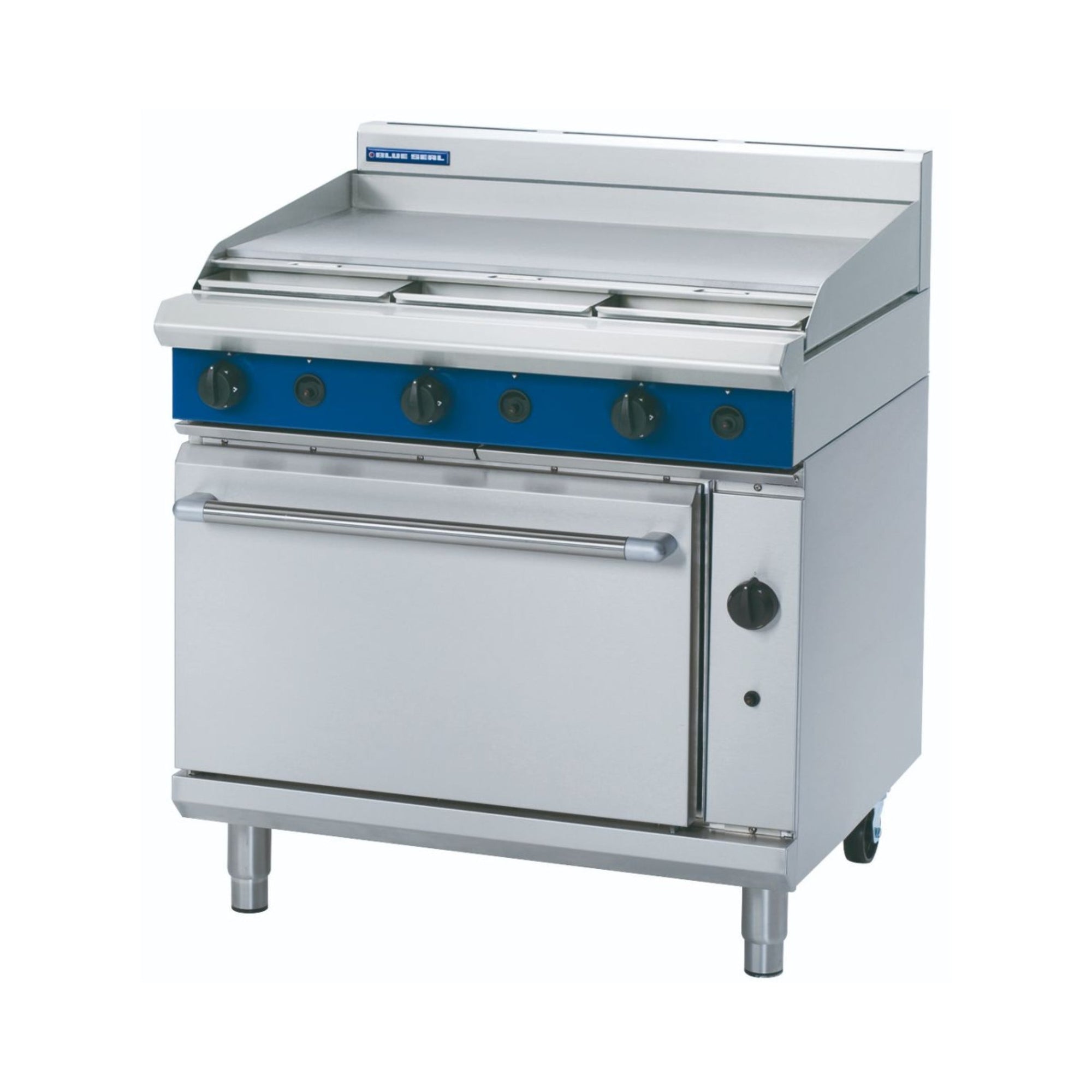

Blue Seal G506A Evolution Series 900mm Gas Griddle Range with Static Oven

The Blue Seal G506A Evolution Series is a 900mm freestanding commercial gas range combining a full-width smooth mild steel griddle plate with an integrated 2/1 GN gas static oven, making it a versatile all-in-one cooking solution for cafés, restaurants, hotels, and high-volume catering operations. Built in New Zealand from heavy-duty 304 stainless steel, the G506A is engineered for durability, hygiene, and ease of maintenance in demanding commercial kitchen environments, and integrates seamlessly into modular Blue Seal Evolution Series kitchen suites.

The cooktop features three 20 MJ/hr griddle burners with a total gas rating of 90 MJ/hr (25 kW), supported by removable heavy-duty cast iron burners and vitreous enamel pot stands for reliable heat output and simplified cleaning. Below, the fully welded and vitreous enamelled static oven cavity accommodates full 2/1 GN gastronorm trays and delivers consistent, even heat distribution across a thermostatic control range of 80–300°C, ideal for roasting, baking, and reheating across a broad menu. The unit is available in both Natural Gas and LPG configurations.

Key Benefits

• Three high-output 20 MJ/hr griddle burners deliver rapid, even heat across the full 900mm cooking surface, supporting fast-paced service for grilling, searing, and toasting.
• The integrated 2/1 GN static oven provides generous capacity for roasting, baking, and reheating, reducing the need for separate oven equipment and freeing up valuable kitchen space.
• Flame failure protection on all burners automatically cuts gas supply if the flame is extinguished, providing a critical safety safeguard during busy service periods.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and routine maintenance, helping kitchens maintain hygiene standards without extended downtime.
• Adjustable feet and two additional rollers allow precise levelling on uneven floors and easy repositioning for cleaning or kitchen reconfiguration.
• The fully welded and vitreous enamelled oven liner resists staining and is straightforward to wipe down, reducing labour time during end-of-service clean-up.
• A cool-touch stainless steel door handle and drop-down door with welded frame allow safe, convenient oven access during service without risk of burns.
• Compatibility with the Blue Seal Evolution Series modular range means the G506A can be paired with other 900mm suite equipment to build a cohesive, space-efficient commercial cooking line.
• Available in both Natural Gas and LPG configurations, the G506A suits a wide range of venue types and gas supply situations across Australia and New Zealand.

Key Features

• 900mm full-width smooth mild steel griddle plate on gas range with integrated static oven
• 2/1 GN capacity gas static oven with fully welded and vitreous enamelled oven liner for even heat distribution
• Three 20 MJ/hr griddle burners; total gas rating 90 MJ/hr (25 kW)
• Thermostatic temperature control from 80°C to 300°C
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Griddle plate thickness: 20mm smooth mild steel
• Griddle surface area: 892 x 530mm; griddle positioned on right-hand side as standard
• Heavy-duty reinforced heat-resistant control knobs
• Drop-down oven door with welded frame
• Cool-touch stainless steel oven door handle
• 165mm stainless steel splashback included; overall height including splashback 1085mm
• Oven base height (excluding splashback): 915mm
• Heavy-duty 304 stainless steel construction throughout
• Adjustable stainless steel feet plus two additional rollers for levelling and mobility
• R 3/4 (BSP) male gas connection
• Available in Natural Gas or LPG; specify at time of order
• Freestanding, freestanding mounting; integrates into Blue Seal Evolution Series modular suites
• 2 oven shelves included
• Easy-access design for cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
