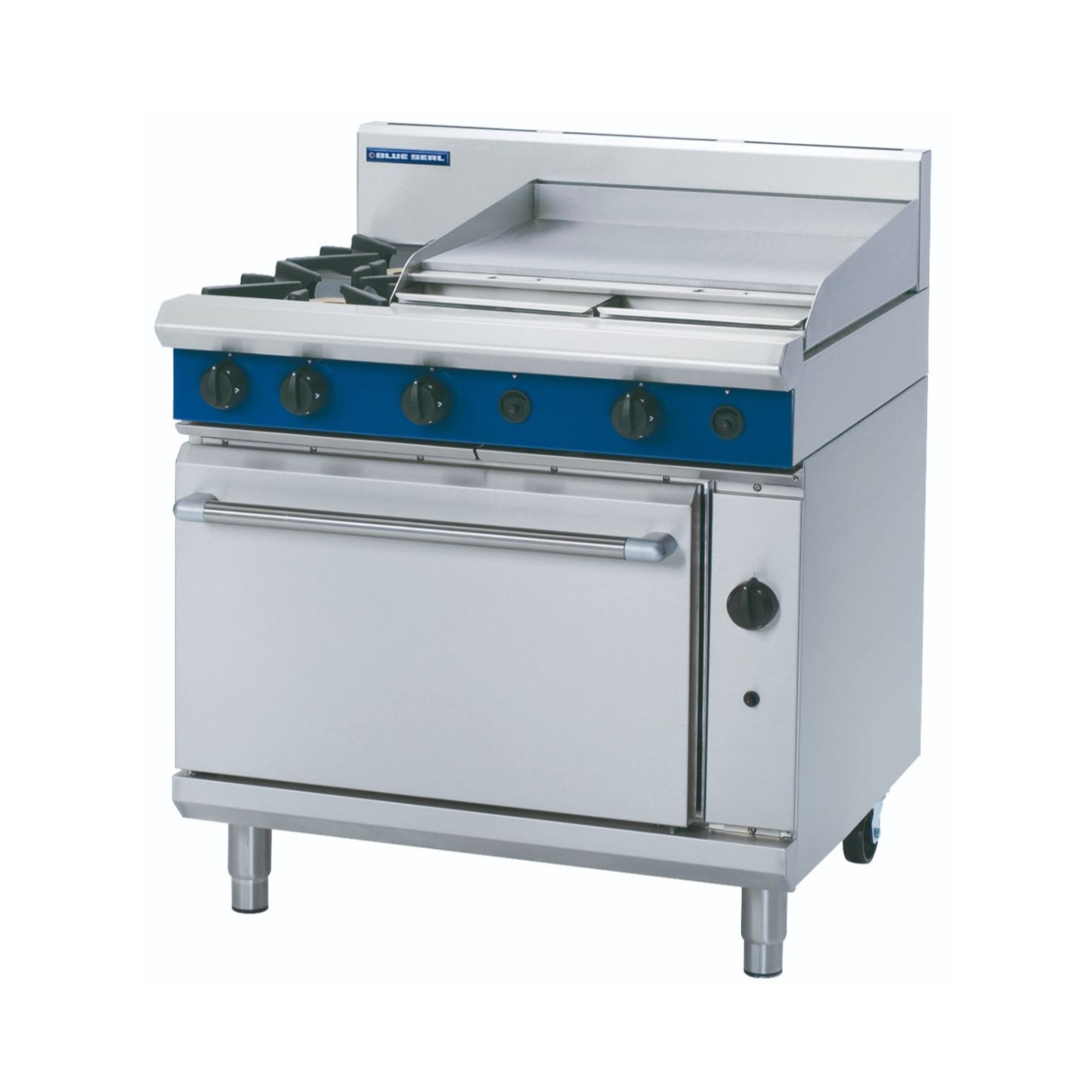

Blue Seal G506B Evolution Series 900mm Gas Range Static Oven with 2 Burner Cooktop and 600mm Griddle

The Blue Seal G506B is a 900mm freestanding gas range from the Evolution Series, combining a two-burner open cooktop, a 600mm smooth mild steel griddle, and a 2/1 GN gas static oven into a single, heavy-duty unit built for the demands of commercial kitchens. Constructed from 304 stainless steel with a fully welded vitreous enamelled oven liner, this range is designed to deliver consistent, reliable performance across high-volume cooking environments.

The cooktop delivers 2 x 28MJ/hr through removable cast iron open burners, while the 600mm griddle is powered by 2 x 20MJ/hr burners, providing a combined total gas rating of 126MJ/hr (35kW). The static oven offers thermostatic control across a range of 80 to 300°C and accommodates full 2/1 GN gastronorm containers, making it equally suited to roasting, baking, and holding. Flame failure protection on all burners, cool-touch door handle, adjustable feet, and two additional rollers round out a design focused on operator safety, ease of use, and straightforward servicing.

Key Benefits

• Versatile cooktop configuration with open burners and a wide 600mm griddle allows multiple cooking methods to run simultaneously, increasing throughput during service.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, reducing risk in busy kitchen environments.
• The 2/1 GN oven capacity accommodates full-size gastronorm trays, enabling efficient batch cooking and reducing the number of cooking cycles needed.
• Precise thermostatic control from 80 to 300°C gives chefs consistent, repeatable results for baking, roasting, and slow cooking.
• Vitreous enamelled oven liner and pot stands resist staining and simplify cleaning, helping maintain hygiene standards with less downtime between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation and routine kitchen reconfiguration.
• Heavy-duty reinforced control knobs and a drop-down oven door with welded frame are built to withstand the rigours of continuous commercial use.
• Available in both natural gas and LPG configurations, providing flexibility to suit existing kitchen infrastructure.

Key Features

• 900mm wide freestanding gas range combining cooktop, griddle, and static oven in one unit
• 2 x 28MJ/hr removable heavy-duty cast iron open burners on cooktop
• 600mm smooth mild steel griddle positioned on the right-hand side as standard
• 2 x 20MJ/hr burners dedicated to the griddle section
• Total gas rating: 126MJ/hr (35kW)
• 2/1 GN gas static oven accommodates full-size gastronorm containers
• Oven thermostatic control range: 80 to 300°C
• Flame failure protection fitted to all burners
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Vitreous enamel pot stands for heat retention and simple maintenance
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs
• 304 stainless steel exterior finish
• 165mm splashback included; overall height including splashback 1085mm
• Adjustable feet plus 2 additional rollers for ease of installation and mobility
• R 3/4 (BSP) male gas connection
• Available in natural gas or LPG configurations
• 2 oven shelves included
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
