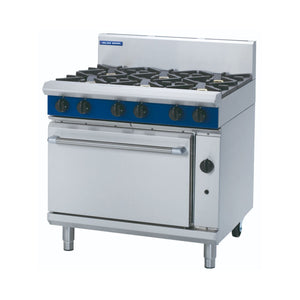

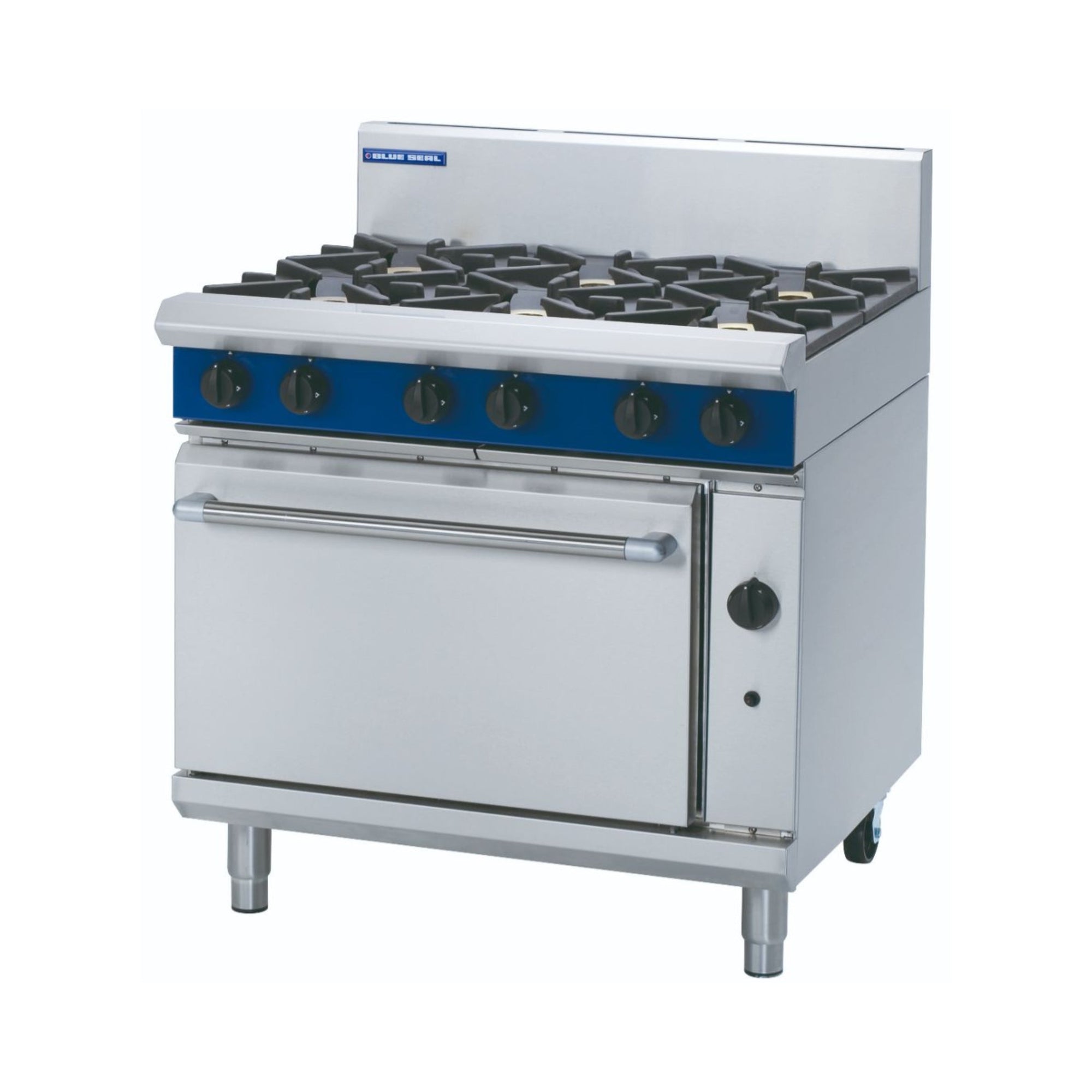

Blue Seal G506D Evolution Series 900mm Gas Range with 6 Burner Cooktop and GN 2/1 Gas Static Oven

The Blue Seal G506D Evolution Series is a heavy-duty 900mm commercial gas range combining a six-burner cooktop with an integrated GN 2/1 gas static oven, built for the rigorous demands of restaurants, cafés, hotels, pubs and high-volume hospitality kitchens. Manufactured in New Zealand from 304 stainless steel, it is engineered for durability, consistent cooking performance and straightforward daily maintenance.

The cooktop delivers six open burners at 28MJ/hr each, providing rapid heat and strong flame control across the full range of cooking tasks from stockpot boiling to delicate simmering. Below, the gas static oven features a 9kW tubular burner beneath a cast iron sole plate, a fully welded vitreous enamel liner and thermostatic temperature control from 80°C to 300°C, making it equally capable for roasting, baking, reheating and finishing. The G506D is available in both Natural Gas and LPG configurations and integrates seamlessly into complete Blue Seal Evolution Series kitchen suites.

Key Benefits

• Six high-output 28MJ/hr open burners deliver fast heat-up and precise flame control, supporting simultaneous multi-task cooking across the full cooktop surface.
• The 9kW tubular oven burner combined with a cast iron sole plate ensures even heat distribution throughout the oven cavity, producing consistent results when roasting or baking at volume.
• Thermostatic oven control spanning 80°C to 300°C allows precise temperature setting, reducing the risk of overcooking and supporting a wide variety of menu items.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, improving safety in busy kitchen environments.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and can be replaced individually, reducing maintenance downtime.
• Adjustable feet and two rear rollers make positioning and levelling straightforward during installation and when reconfiguring kitchen layouts.
• The cool-touch stainless steel oven door handle and drop-down door with welded frame allow safe, easy oven access during service.
• Heavy-duty reinforced control knobs withstand the heat and repeated use typical of a commercial kitchen, maintaining accurate control over extended service periods.
• Modular Evolution Series design allows the G506D to be integrated with other Blue Seal 900mm suite components, enabling a cohesive and flexible kitchen configuration.

Key Features

• 900mm wide freestanding commercial gas range with integrated GN 2/1 gas static oven
• Six open gas burners, each rated at 28MJ/hr (7kW), with removable heavy-duty cast iron construction and forged brass caps
• Vitreous enamel cast iron pot stands, removable for easy cleaning
• Flame failure protection fitted to all six cooktop burners
• 9kW tubular oven burner positioned beneath a cast iron sole plate for uniform heat distribution
• Fully welded vitreous enamel oven liner for durability and easy cleaning
• Thermostatic oven temperature control ranging from 80°C to 300°C
• Four-position adjustable oven racking to accommodate different pan heights and cooking requirements
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel oven door handle for safe access during service
• Heavy-duty reinforced heat-resistant control knobs
• 165mm splashback included
• Adjustable feet plus two rear rollers for straightforward installation and repositioning
• 304 stainless steel construction throughout
• Available in Natural Gas or LPG configurations
• R 3/4 (BSP) male gas connection
• Part of the Blue Seal Evolution Series modular suite, compatible with other 900mm series components
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
