Overview

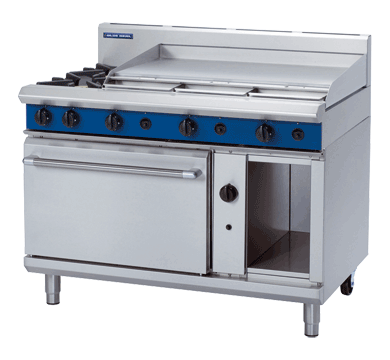

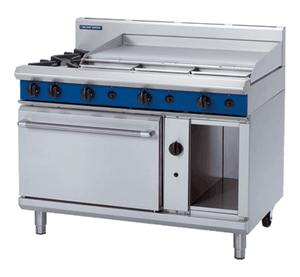

Blue Seal G508A Evolution Series 1200mm Gas Range Static Oven

The Blue Seal G508A Evolution Series is a 1200mm commercial gas range combining a two-burner cooktop with a 900mm thermostatic gas griddle and an integrated 2/1 GN static gas oven, purpose-built for high-volume commercial kitchens. Manufactured in New Zealand from 304 stainless steel, it delivers robust cooking capacity suited to restaurants, cafés, hotels, catering operations, and busy à la carte venues needing reliable, consistent output across multiple cooking methods simultaneously.

The griddle surface is powered by three 20MJ/hr burners with thermostatically controlled heat between 80°C and 300°C, while two 28MJ/hr open burners serve the cooktop. The static oven beneath accommodates full 2/1 GN gastronorm trays and features a fully welded vitreous enamelled liner for even heat distribution and straightforward cleaning. A storage cabinet on the right-hand side adds practical workspace organisation, and the unit is available in both natural gas and LPG configurations.

Key Benefits

• Simultaneous cooktop, griddle, and oven operation greatly increases kitchen output during peak service without requiring multiple standalone appliances.
• Thermostatic control across the griddle (80–300°C) ensures precise, repeatable cooking temperatures for consistent results with delicate proteins, breakfast items, and high-volume grilling alike.
• The thick smooth mild steel griddle plate retains heat effectively, enabling rapid recovery after each batch load and reducing wait times between consecutive orders.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, protecting kitchen staff and complying with commercial safety requirements.
• Adjustable feet combined with two rear rollers make levelling straightforward and allow the unit to be repositioned for cleaning or servicing without specialist equipment.
• Removable cast iron burners, vitreous enamel pot stands, and the enamelled oven liner simplify daily cleaning and reduce total maintenance time in busy kitchen environments.
• The storage cabinet on the right-hand side provides convenient dry storage for trays, utensils, or smallwares, keeping the work area organised during service.
• As part of the modular Blue Seal Evolution Series, the G508A integrates neatly with complementary suite components, supporting flexible kitchen layouts and future expansion.
• Availability in both natural gas and LPG configurations makes the unit suitable for a wide range of commercial sites regardless of existing gas infrastructure.

Key Features

• 1200mm wide freestanding gas range combining cooktop, 900mm griddle, and static oven in a single unit
• Two 28MJ/hr open cooktop burners for high-output stovetop cooking
• Three 20MJ/hr griddle burners providing even heat across the full 900mm griddle surface
• Smooth mild steel griddle plate, 20mm thick, measuring 892 x 530mm cooking surface area
• Thermostatic griddle and oven temperature control ranging from 80°C to 300°C
• Integrated 2/1 GN capacity gas static oven with fully welded and vitreous enamelled oven liner
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel oven door handle for safe access during service
• Flame failure protection fitted to all burners as standard
• Removable heavy-duty cast iron burners and vitreous enamel pot stands for easy cleaning
• Heavy-duty reinforced, heat-resistant control knobs
• Storage cabinet located on the right-hand side of the unit
• 165mm splashback included; overall height including splashback is 1085mm
• Adjustable feet with two additional rear rollers for levelling and repositioning
• Constructed from heavy-duty 304 stainless steel throughout
• Gas connection via R 3/4 (BSP) male fitting
• Available in natural gas or LPG configuration
• Freestanding installation type
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 449
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
