Overview

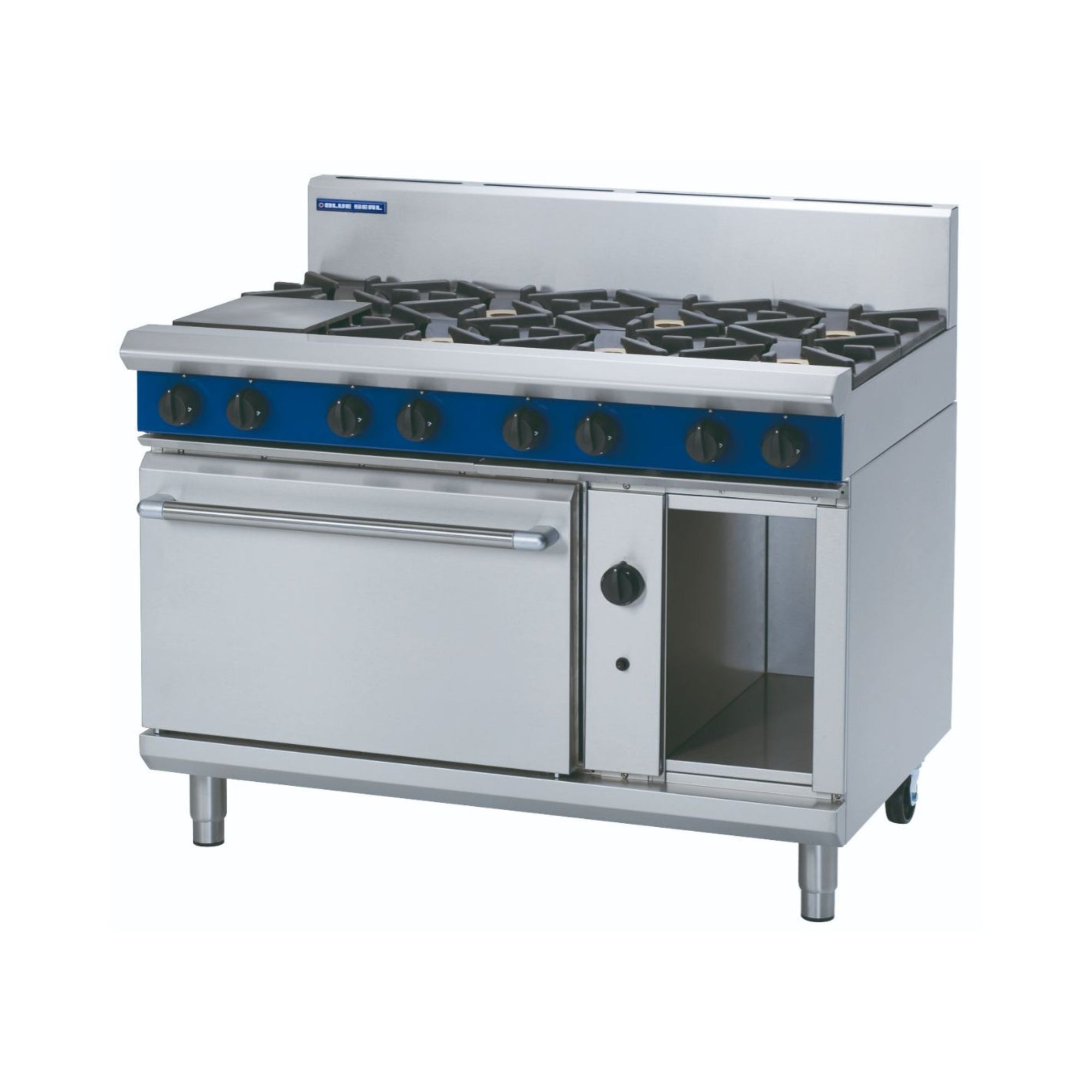

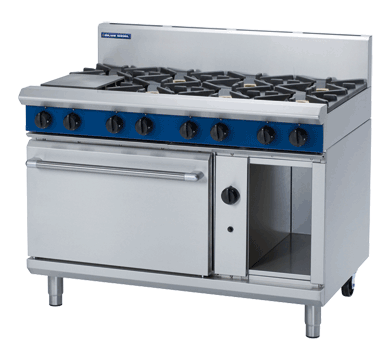

Blue Seal G508D Evolution Series 1200mm Gas Range Static Oven

The Blue Seal G508D Evolution Series is a 1200mm freestanding commercial gas range, engineered in New Zealand, that pairs an eight-burner open cooktop with an integrated 2/1 GN gas static oven. Purpose-built for high-volume restaurant, hotel, catering and hospitality kitchen environments, the unit is constructed throughout from heavy-duty 304 stainless steel and offers Natural Gas or LPG configurations to suit existing kitchen infrastructure without costly gas line modifications.

The cooktop's eight open burners, each rated at 28MJ/hr, deliver rapid and responsive heat suited to boiling, simmering, sautéing, frying, and large-batch stockpot work, while the 2/1 GN static gas oven underneath provides consistent, even heat distribution for roasting, baking, reheating and batch cooking tasks. Practical details including a right-hand side storage cabinet, adjustable feet with two rear rollers, a cool-touch door handle and a drop-down oven door with welded frame make daily operation, cleaning and servicing straightforward.

Key Benefits

• Eight high-output 28MJ/hr open burners provide fast heat recovery and versatile flame control across a full range of cooking tasks simultaneously during peak service.
• The 2/1 GN static gas oven features cast iron sole plates that promote uniform heat distribution throughout the cavity, reducing hot spots and improving roasting and baking results.
• Thermostatic oven control across an 80–300°C range allows precise temperature management to suit a wide variety of menu items and cooking techniques.
• Flame failure protection fitted to every burner automatically cuts the gas supply if a flame is extinguished unexpectedly, enhancing overall kitchen safety.
• Removable cast iron burners, enamelled cast iron pot stands and the vitreous enamelled oven liner simplify cleaning and reduce downtime between service periods.
• The right-hand side storage cabinet keeps essential cookware and trays close at hand, improving workflow and reducing movement across the kitchen floor.
• Adjustable feet with two rear rollers allow straightforward repositioning during installation, cleaning and routine servicing without additional equipment.
• Designed as a modular unit within the Blue Seal Evolution Series, the G508D pairs seamlessly with complementary suite components to build a cohesive, space-efficient commercial kitchen line.
• Availability in both Natural Gas and LPG configurations offers flexibility to match existing kitchen infrastructure without the need for costly gas line modifications.

Key Features

• 1200mm wide freestanding commercial gas range with an integrated static oven
• 8 open gas burners, each rated at 28MJ/hr, across the cooktop
• Integrated 2/1 GN gas static oven
• Thermostatic oven temperature control: 80–300°C
• Removable cast iron burners fitted with forged brass caps
• Cast iron pot stands with vitreous enamel finish for cookware support and easy cleaning
• Fully welded oven liner with vitreous enamel coating for hygiene and durability
• Cast iron sole plates inside the oven for even heat distribution
• Flame failure protection on all burners
• Drop-down oven door with welded frame
• Cool-touch stainless steel oven door handle
• Right-hand side storage cabinet for trays, cookware and kitchen essentials
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced heat-resistant control knobs
• Adjustable feet with 2 rear rollers for mobility and levelling
• 165mm splashback included
• Gas connection: R 3/4 (BSP) male
• Available in Natural Gas or LPG — specify at time of ordering
• Freestanding installation type
• Modular design compatible with Blue Seal Evolution Series kitchen suites
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 449
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 110-270°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 8
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
