Overview

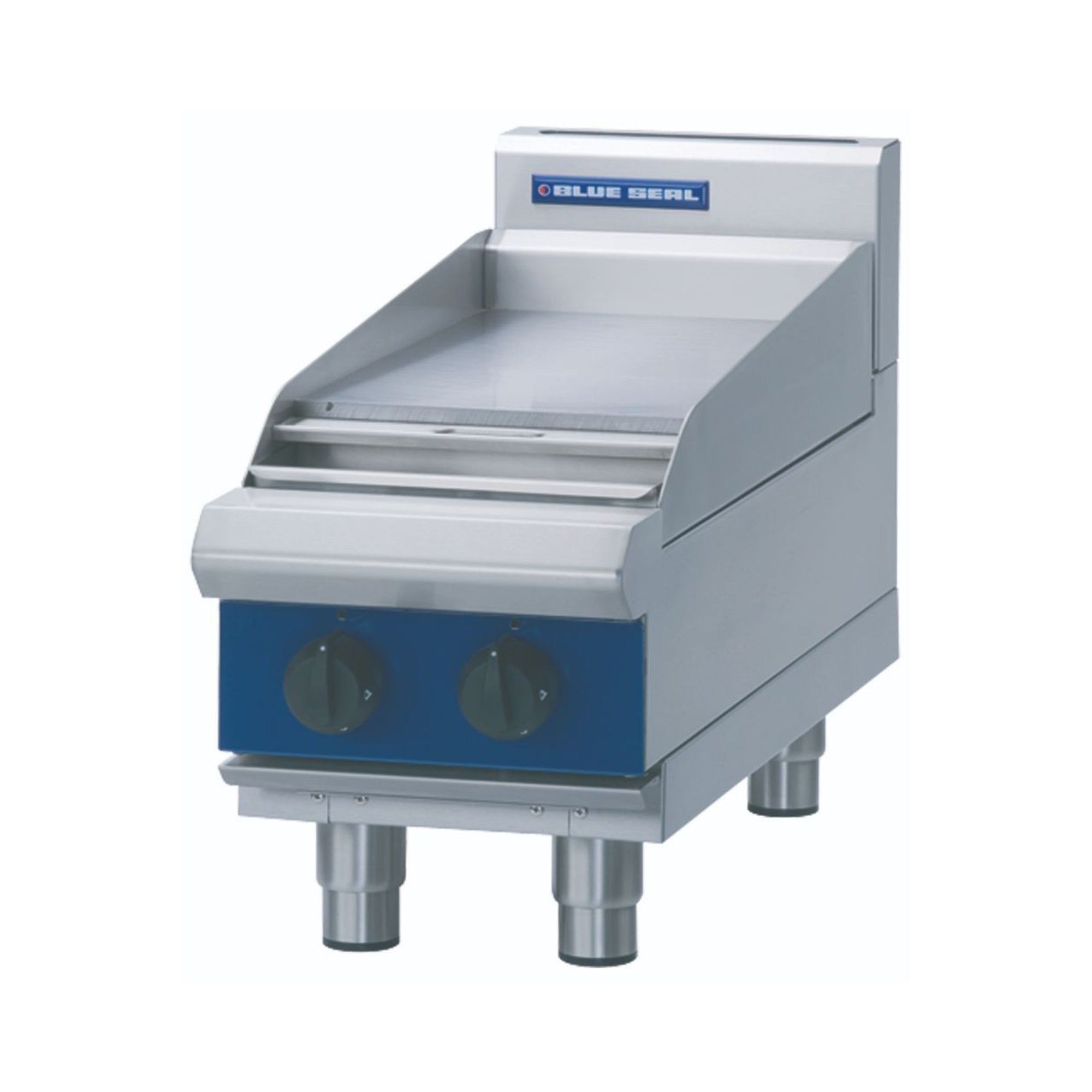

Blue Seal G512C-B Evolution Series 300mm Gas Griddle Cooktop - Bench Model

The Blue Seal G512C-B is a compact commercial gas griddle from the Evolution Series, purpose-built for cafés, takeaway shops, restaurants, food trucks, and any hospitality kitchen where reliable flat-top cooking performance is needed in a space-saving footprint. Manufactured in New Zealand from 304 stainless steel, this 300mm bench model delivers a 20MJ/hr burner output across a smooth mild steel griddle plate, making it well suited to cooking burgers, eggs, bacon, sandwiches, and a full breakfast menu during high-volume service.

Designed with operator convenience in mind, the G512C-B features push-button piezo ignition, flame failure protection, and heavy-duty reinforced control knobs for precise heat adjustment from 90°C to 300°C. Its bench model configuration installs easily onto existing preparation stations, while four stainless steel legs with adjustable feet ensure a stable, level setup. Available in both natural gas and LPG, the unit is straightforward to clean, service, and integrate into a modular Blue Seal Evolution Series lineup.

Key Benefits

• Compact 300mm width makes the most of limited bench space without sacrificing cooking capacity, ideal for smaller or mobile kitchens.
• A 20MJ/hr griddle burner delivers rapid heat-up and responsive temperature control, keeping service moving during peak periods.
• Smooth mild steel griddle plate provides even heat distribution and excellent heat retention for consistent cooking results across the entire surface.
• Push-button piezo ignition allows fast, tool-free lighting, reducing downtime between cooking sessions.
• Flame failure protection on the burner automatically cuts gas if the flame is extinguished, protecting staff and premises.
• Thermostat control across a 90-300°C range gives chefs precise adjustment for everything from gentle warming to high-heat searing.
• Four stainless steel legs with adjustable feet allow the unit to be levelled on uneven surfaces and cleaned underneath easily.
• Heavy-duty reinforced control knobs resist daily wear in demanding commercial environments, minimising the need for replacement.
• Compatible with the broader Blue Seal Evolution Series modular range, enabling flexible kitchen configurations as needs change.

Key Features

• 300mm smooth mild steel griddle plate in a bench-mounted configuration
• 1 x 20MJ/hr (5.5kW) gas griddle burner
• Griddle plate thickness: 20mm
• Cooking surface area: 295mm x 530mm
• Thermostat temperature control ranging from 90°C to 300°C
• Push-button piezo ignition for quick, reliable lighting
• Flame failure protection on all burners for enhanced safety
• Heavy-duty reinforced control knobs with clear, durable markings
• 165mm splashback included
• Constructed from 304 stainless steel throughout
• Four stainless steel bench legs with adjustable feet for levelling
• Gas connection: R 1/2 (BSP) male
• Compatible with natural gas and LPG (specify at time of order)
• Freestanding, bench model installation with no undershelf
• Part of the modular Blue Seal Evolution Series for flexible kitchen configuration
• Designed for straightforward cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 300
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 1/2 (BSP) male
• Shipping Weight: 70
• Packed Width (mm): 870.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 350.0
• Shipping Cubic: 0.202493000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
