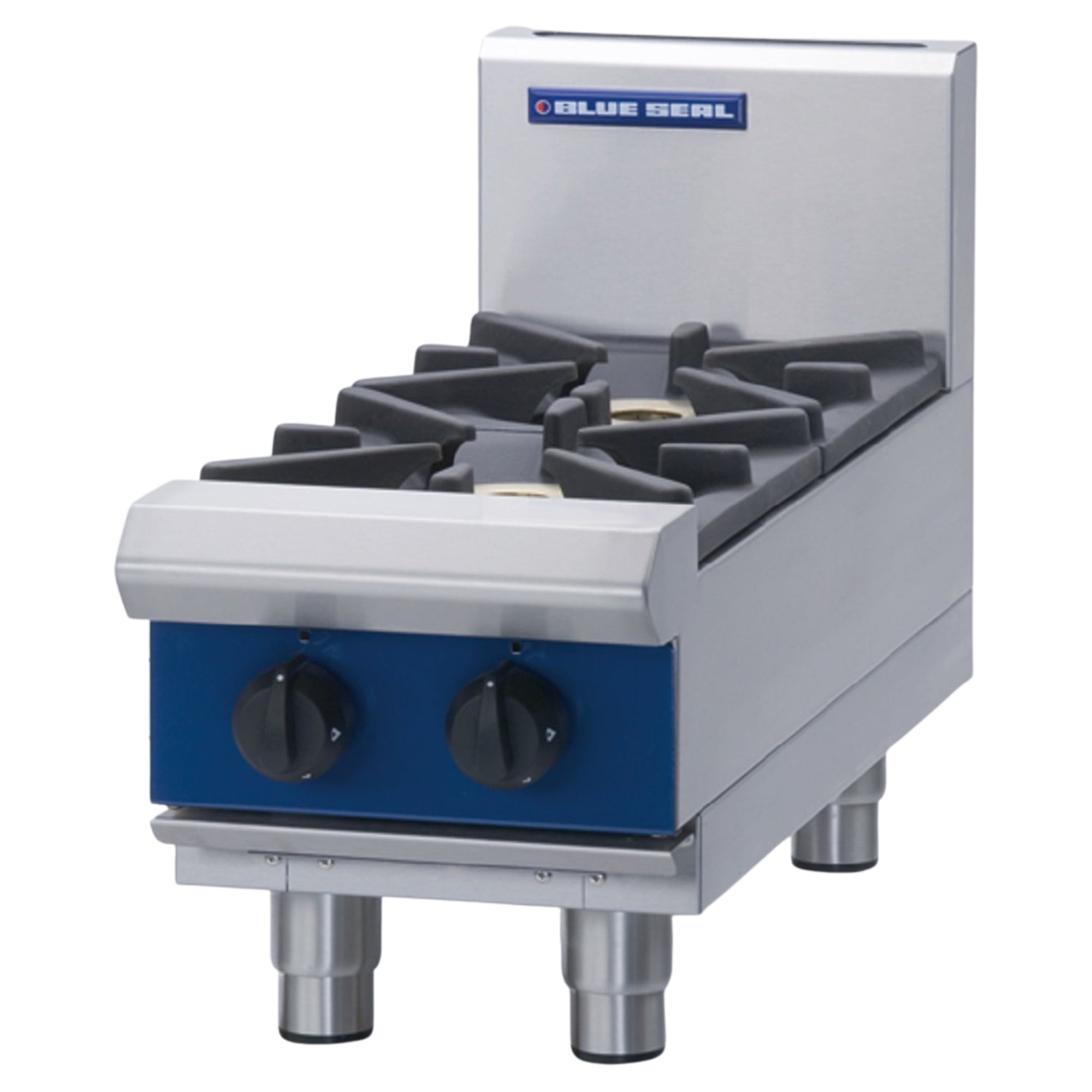

Blue Seal G512D-B Evolution Series 300mm Gas Cooktop - Bench Model

The Blue Seal G512D-B Evolution Series 300mm Gas Cooktop is a compact, high-output bench model engineered for demanding commercial kitchen environments. Producing 2 x 28MJ/hr (7kW) through open gas burners featuring cast iron construction and forged brass caps, it delivers rapid heat response and consistent flame spread across the full heat spectrum, from aggressive boiling and stockpot work down to precise low-heat simmering. Suitable for Natural Gas or LPG, it serves cafes, restaurants, food trucks, bars, and modular cooking suites where space efficiency and reliable performance are essential.

Manufactured in New Zealand from 304 stainless steel, the G512D-B is built to withstand the daily demands of professional kitchen service. Its bench model configuration allows flexible placement on workbenches, chef bases, or within a modular Blue Seal Evolution Series cooking suite. Flame failure protection on all burners, reinforced heat-resistant control knobs with markings that will not fade and robustly constructed shaft sleeves, removable stainless steel spill trays, and adjustable stainless steel feet with two additional rollers make this cooktop straightforward to operate, clean, and service.

Key Benefits

• High output of 56MJ total (2 x 28MJ/hr) delivers fast heat-up times for boiling, sautéing, and stockpot cooking during busy service periods.
• Flame failure protection on every burner shuts off gas automatically if a flame extinguishes, improving safety for kitchen staff.
• Thicker vitreous enamel pot stands with extended finger supports allow smaller pots and pans to be slid across the cooking surface without risk of tipping.
• Compact 300mm width makes efficient use of bench space, ideal for smaller kitchens or kitchens where every centimetre of run matters.
• Removable cast iron burners, spill trays, and easy-access design reduce cleaning time and support good kitchen hygiene standards.
• Adjustable stainless steel feet combined with two additional rollers allow precise levelling and easy repositioning during kitchen reconfiguration or cleaning.
• Fully modular Evolution Series compatibility allows the unit to integrate seamlessly with other Blue Seal cooking equipment, enabling a cohesive cooking suite.
• Non-clogging burner design with forged brass caps maintains consistent flame spread over time, reducing maintenance interventions.
• Available in Natural Gas or LPG configurations, providing flexibility to suit the gas supply available at any site.

Key Features

• 2 x 28MJ/hr (7kW) advanced open gas burners with a combined total output of 56MJ
• Cast iron burners with forged brass caps for consistent, even flame spread and long-term durability
• Non-clogging burner design for sustained optimum performance
• Flame failure protection fitted to all burners as standard
• Thicker heavy-duty vitreous enamel cast iron pot stands (trivets) with extended finger supports for small pan stability
• Removable heavy-duty cast iron burners for straightforward cleaning and servicing
• Removable stainless steel spill trays for easy clean-up
• Heavy-duty reinforced heat-resistant control knobs featuring non-fade markings and strengthened, robust shaft sleeves
• Variable manual knob control across the full heat range from high output to low simmer
• 304 stainless steel construction throughout
• Four stainless steel bench legs with adjustable feet for precise levelling
• Two additional rollers for easy repositioning
• 165mm rear splashback included
• Bench model configuration - no undershelf - suits placement on workbenches, chef bases, or modular suites
• R 1/2 (BSP) male gas connection
• Available in Natural Gas or LPG - specify gas type at time of ordering
• Optional cast iron simmer plates available
• Compatible with griddle plates in five width options (300mm, 450mm, 600mm, 900mm, and 1200mm), available in both smooth and ribbed machine-finished mild steel
• Fully modular Blue Seal Evolution Series design for integration with other Blue Seal cooking equipment
• Freestanding installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 300
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 1/2 (BSP) male
• Shipping Weight: 70
• Packed Width (mm): 870.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 350.0
• Shipping Cubic: 0.202493000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Cooking Surface Area (mm): 300 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
