Overview

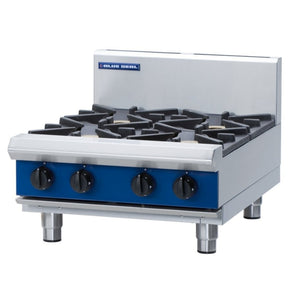

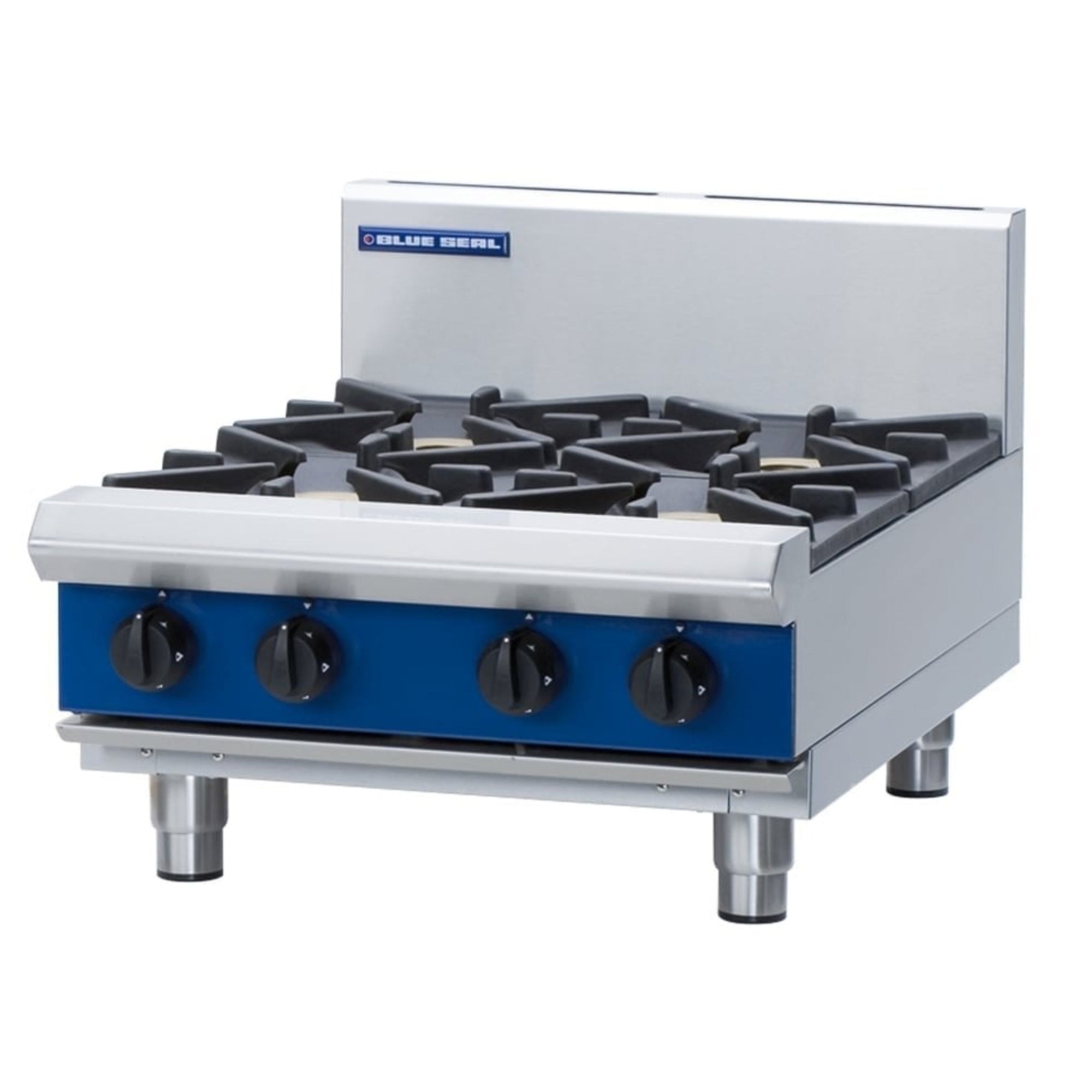

Blue Seal G514D-B Evolution Series 600mm Gas Cooktop – Bench Model

The Blue Seal G514D-B is a 600mm four-burner gas cooktop bench model from the Evolution Series, manufactured in New Zealand from 304 stainless steel to deliver long-term reliability in high-volume commercial kitchens. Each of the four open burners produces 28MJ/hr, combining for a total output of 112MJ/hr (31kW) that provides rapid heat response and precise flame control suited to boiling, simmering, sautéing, and stockpot cooking across busy service periods.

Designed for flexible bench-top installation, the G514D-B suits stand-alone workbenches, refrigerated chef bases, or fully modular Blue Seal Evolution Series cooking suites. Practical details including removable cast iron burners, pot stands with extended finger supports, removable spill trays, and easy-access components make routine cleaning and servicing straightforward, while two rear rollers and a set of four adjustable stainless steel feet allow easy repositioning and precise levelling on the kitchen floor.

Key Benefits

• Four 28MJ/hr open burners deliver a combined 112MJ/hr output, ensuring fast heat-up and powerful cooking performance during peak service.
• Flame failure protection on every burner automatically cuts gas if a flame is extinguished, improving safety throughout the kitchen.
• Vitreous enamel cast iron pot stands featuring extended finger supports keep smaller pots and pans stable, reducing the risk of tipping during busy service.
• Removable cast iron burners and spill trays simplify cleaning and maintenance, helping kitchens meet hygiene standards with minimal downtime.
• A stainless steel leg assembly with independently adjustable feet on each corner, plus two rear rollers, allows precise levelling and easy repositioning without heavy lifting.
• Compatible with the full Blue Seal Evolution Series modular range, enabling seamless integration into a complete commercial cooking suite.
• Available in natural gas or LPG, giving operators the flexibility to match their existing gas supply infrastructure.
• Heavy-duty reinforced, heat-resistant control knobs withstand constant daily use and provide reliable variable power control over each burner.

Key Features

• 4 x 28MJ/hr open gas burners with a combined total rating of 112MJ/hr (31kW)
• Flame failure protection on all four burners
• Removable heavy-duty cast iron burners fitted with forged brass caps
• Vitreous enamel cast iron pot stands with extended finger supports for stable, flexible pot placement
• Removable stainless steel spill trays for easy cleaning
• 304 stainless steel construction throughout
• 165mm rear splashback included
• Heavy-duty reinforced, heat-resistant manual control knobs with variable power control
• Four adjustable stainless steel feet paired with two rear rollers for levelling and repositioning
• Bench model configuration – suitable for workbenches, chef bases, or modular suite integration
• Fully modular – integrates with the Blue Seal Evolution Series cooking suite range
• Optional cast iron simmer plates available
• Available in natural gas or LPG (specify at time of ordering)
• Gas connection: R 3/4 (BSP) male
• Easy-clean, easy-install, and easy-service design
• Made in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Cooking Surface Area (mm): 600 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
