Overview

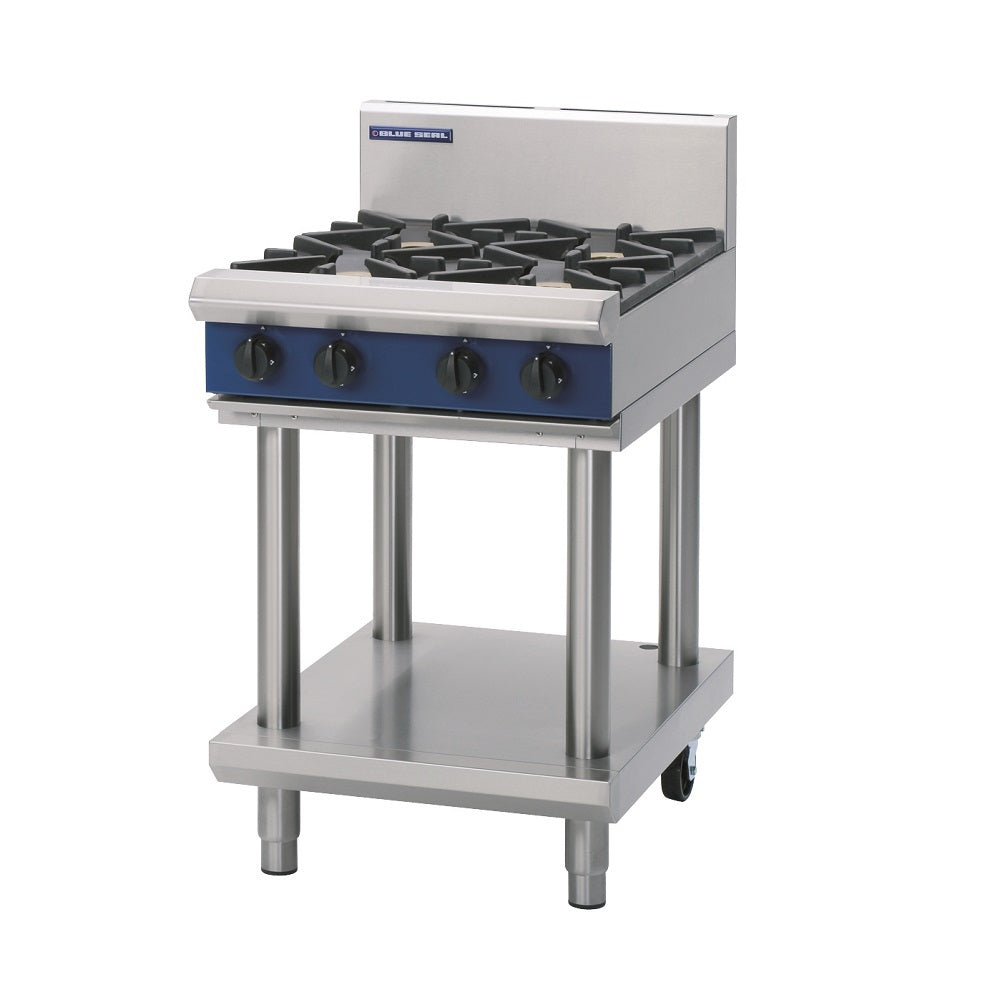

Blue Seal G514D-LS Evolution Series 600mm Gas Cooktop on Leg Stand

The Blue Seal G514D-LS is a 600mm commercial gas cooktop mounted on a stainless steel leg stand, forming part of the modular Evolution Series engineered for high-volume professional kitchens. Four open burners each rated at 28MJ/hr combine for a total output of 112MJ, delivering rapid heat response and precise flame control across boiling, simmering, sautéing, and stockpot applications. Built from 304 stainless steel and manufactured in New Zealand, the unit is designed to endure continuous commercial service in cafés, restaurants, hotels, pubs, and catering operations.

The open leg stand keeps the cooktop freestanding while allowing unobstructed access beneath the unit for floor cleaning, supporting good kitchen hygiene standards. Its compact 600mm footprint conserves valuable kitchen floor space without compromising cooking capacity, and the suite-matching design integrates seamlessly with other Evolution Series equipment to form a cohesive modular cooking line. Available in Natural Gas and LPG configurations, the G514D-LS brings together straightforward installation, low-maintenance serviceability, and robust long-term reliability in one practical package.

Key Benefits

• Four 28MJ/hr open burners deliver strong, responsive heat for fast service during peak periods
• Flame failure protection on every burner automatically cuts gas flow if a flame extinguishes, improving kitchen safety
• Open leg stand base allows easy sweeping and mopping beneath the unit, supporting hygiene compliance
• Pot stands manufactured from heavy-duty vitreous enamel cast iron feature extended finger supports, allowing cooks to slide smaller pots and pans across the cooktop safely and without tipping
• Adjustable feet and two rear rollers make levelling straightforward and allow the unit to be repositioned without lifting
• Removable cast iron burners and spill trays simplify daily cleaning and routine servicing, reducing downtime
• Modular Evolution Series compatibility enables the cooktop to be paired with matching suite equipment for a uniform, professional kitchen line
• Dual gas type availability in Natural Gas or LPG provides flexibility for different venue setups and gas supply configurations

Key Features

• 4 x open gas burners, each rated at 28MJ/hr (112MJ total output)
• Flame failure protection standard on all four burners
• Removable heavy-duty cast iron burners topped with precision-cast brass caps
• Pot stands in heavy-duty vitreous enamel cast iron with extended finger supports for safe movement of smaller cookware
• Heavy-duty 304 stainless steel construction throughout
• Reinforced heat-resistant commercial control knobs for variable power control
• Stainless steel leg stand with open base for easy under-unit cleaning and flexible storage access
• Removable stainless steel spill trays for straightforward cleaning
• Adjustable stainless steel feet plus 2 rear rollers for easy levelling and repositioning
• 165mm splashback included
• Suite-matching undershelf included
• Freestanding, modular installation compatible with Blue Seal Evolution Series
• R 3/4 (BSP) male gas connection
• Available in Natural Gas or LPG configurations
• Manufactured in New Zealand
• Cooking surface area 600 x 480mm
• Optional cast iron simmer plates available

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Cooking Surface Area (mm): 600 x 480
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
