Overview

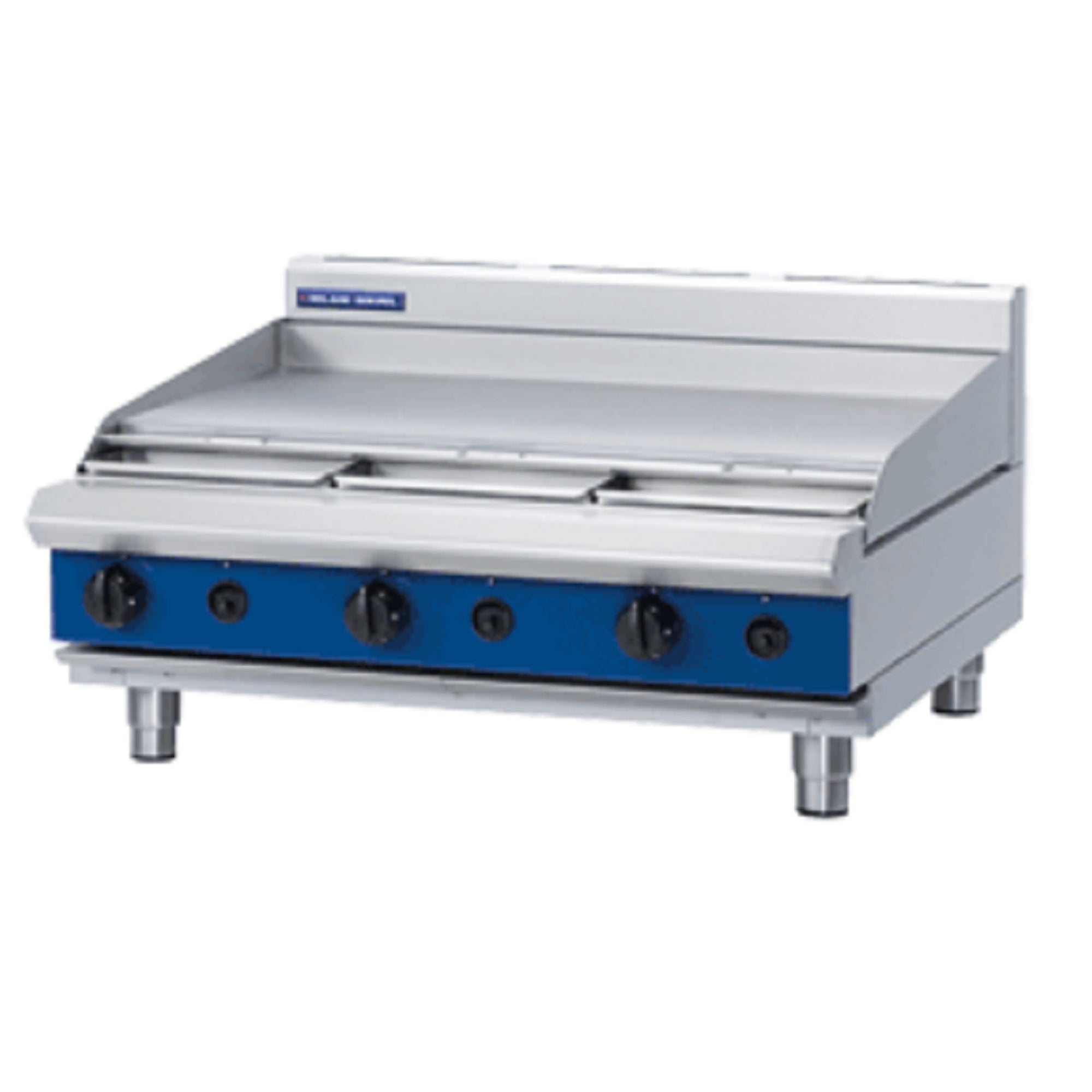

Blue Seal G516A-B Evolution Series 900mm Gas Griddle Cooktop - Bench Model

The Blue Seal G516A-B Evolution Series is a 900mm commercial gas griddle cooktop in bench-mount configuration, purpose-built for high-output cooking in restaurants, cafés, pubs, takeaways, and busy hospitality kitchens. Powered by three 20MJ/hr gas burners delivering a combined 60MJ/hr (16.6kW), the unit features a smooth, machined mild steel griddle plate 20mm thick that provides even heat distribution and excellent heat retention across a generous 892 x 530mm cooking surface, handling everything from burgers and steaks to eggs, seafood, and full breakfast menus.

Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, the G516A-B is engineered to withstand the daily demands of commercial kitchen environments. The bench model design offers flexible installation on existing workbenches, optional equipment stands, or refrigeration bases, and integrates neatly into modular Blue Seal Evolution Series kitchen layouts. Push-button piezo ignition, flame failure protection on every burner, and removable cast iron and vitreous enamel components make this unit as straightforward to operate and maintain as it is reliable in service. Available in both Natural Gas and LPG configurations.

Key Benefits

• Three high-output 20MJ/hr burners deliver rapid heat-up and fast recovery during peak service, keeping cooking times consistent under heavy demand.
• The 20mm smooth machined mild steel griddle plate retains heat effectively across the full 892 x 530mm surface, reducing hot and cold spots for more uniform cooking results.
• Push-button piezo ignition allows fast, tool-free start-up, saving time at the beginning of service.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, enhancing safety in busy kitchen environments.
• Removable heavy-duty cast iron burners and vitreous enamel pot stands simplify cleaning and maintenance, reducing downtime between services.
• Bench model configuration offers installation flexibility, including placement on existing benches, optional stands, or refrigeration bases, supporting modular kitchen planning.
• Adjustable stainless steel feet allow levelling on uneven floors, while rear rollers assist repositioning during cleaning or kitchen reconfiguration.
• Heavy-duty reinforced control knobs with clear, non-fade markings provide precise heat adjustment from high to simmer with long-term resistance to wear.
• Available in both Natural Gas and LPG, making the unit suitable for a wide range of commercial kitchen gas supply setups.

Key Features

• 900mm bench-model commercial gas griddle cooktop in the Blue Seal Evolution Series
• Three 20MJ/hr gas griddle burners with a combined output of 60MJ/hr (16.6kW)
• 20mm thick smooth mild steel griddle plate with a machined cooking surface
• Cooking surface area of 892 x 530mm
• Push-button piezo ignition for quick, reliable start-up
• Flame failure protection fitted to all burners as a standard safety feature
• Removable heavy-duty cast iron burners for easy access during cleaning and servicing
• Vitreous enamel pot stands with extended finger supports to stabilise smaller pans and prevent tip-overs
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• Four stainless steel bench legs with adjustable feet for levelling
• Two additional rear rollers for ease of movement during cleaning or repositioning
• 165mm splashback included (overall height with splashback: 485mm; griddle unit height: 315mm)
• Heavy-duty 304 stainless steel construction throughout
• R 3/4 (BSP) male gas connection
• Compatible with Natural Gas or LPG (specify at time of ordering)
• Freestanding bench-mount installation type
• Modular design compatible with the Blue Seal Evolution Series range
• Manufactured in New Zealand
• Designed for straightforward cleaning, installation, and field servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 129
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
