Overview

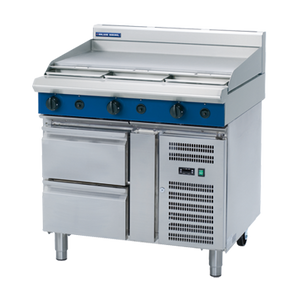

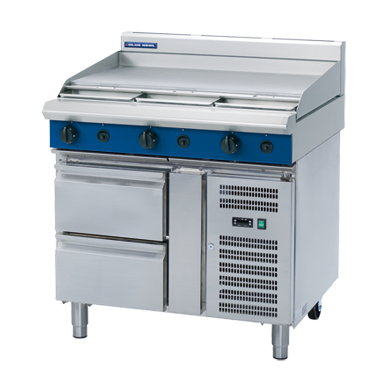

Blue Seal G516A-RB Evolution Series 900mm Gas Cooktop with Refrigerated Base

The Blue Seal G516A-RB Evolution Series combines a 900mm gas griddle cooktop with a refrigerated base unit, delivering a compact, high-output cooking and cold-storage solution purpose-built for busy commercial kitchens. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, this freestanding unit provides six burners across the griddle deck alongside a two-drawer refrigerated base, consolidating prep, cooking, and ingredient storage into a single 900mm footprint.

The griddle section features three 20MJ/hr burners with push-button piezo ignition and flame failure protection on every burner, while the refrigerated base operates on a ventilated R134a refrigeration system with automatic defrost and digital electronic thermostat control. Available in both Natural Gas and LPG configurations, the G516A-RB is designed for straightforward installation, easy daily cleaning, and reliable service performance across demanding kitchen environments.

Key Benefits

• Combines a full 900mm gas griddle with refrigerated ingredient storage in one unit, saving valuable kitchen floor space.
• Flame failure protection on all burners automatically cuts gas supply if a flame extinguishes, improving safety during busy service.
• Push-button piezo ignition on the griddle allows fast, reliable burner lighting without a separate lighter or match.
• Automatic defrost and automatic evaporation of defrost water reduce daily maintenance demands on kitchen staff.
• Digital electronic thermostat on the refrigerated base provides precise temperature management between -2°C and +8°C to keep ingredients safely chilled through service.
• Ventilated, tropical-rated refrigeration ensures consistent cooling performance even in hot commercial kitchen environments.
• Adjustable feet and two additional rollers allow easy repositioning and levelling during installation or cleaning.
• Removable cast iron burners and vitreous enamel pot stands simplify cleaning and routine maintenance.
• Available in Natural Gas or LPG, providing flexibility to suit the gas supply at any commercial site.

Key Features

• 900mm gas griddle cooktop mounted on an integrated refrigerated base unit
• Three 20MJ/hr griddle burners with a combined gas rating of 60MJ/hr (16.6kW)
• Smooth mild steel griddle plate, 20mm thick, with a cooking surface area of 892 x 530mm
• Push-button piezo ignition on all griddle burners
• Flame failure protection on every burner
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Heavy-duty reinforced control knobs
• 165mm splashback included (overall height including splashback: 1085mm; cooktop-only height: 915mm)
• Refrigerated base with two drawers and digital electronic thermostat control
• Temperature range of -2°C to +8°C for the refrigerated base
• Ventilated R134a refrigeration system, tropical rated
• Automatic defrost with automatic evaporation of defrost water
• 3-pin 10A plug cordset fitted for refrigerated base power supply
• Heavy-duty 304 stainless steel construction throughout
• Adjustable feet plus two additional rollers for ease of movement and levelling
• Freestanding installation type with gas connection R 3/4 (BSP) male
• Available in Natural Gas or LPG configurations
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Refrigerated Base
• Door Type: Drawer
• Splash Back: Yes (165mm)
• No. of Doors: 2
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Ventilated | R134a
• Cooling Type: Ventilated | Tropical Rated
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Display Type: Digital Electronic
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
