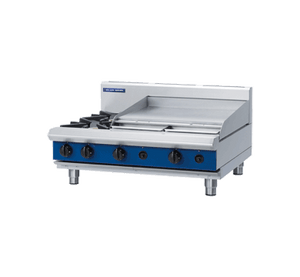

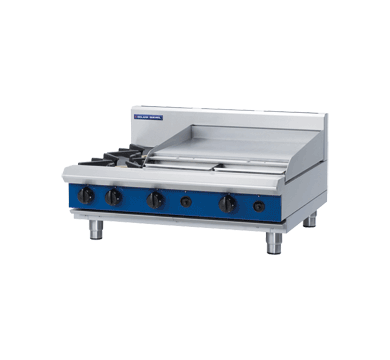

Blue Seal G516B-B Evolution Series 900mm Gas Cooktop with 600mm Griddle - Bench Model

The Blue Seal G516B-B Evolution Series is a 900mm commercial gas cooktop in a bench-mounted configuration, combining two 28MJ/hr open burners with a 600mm smooth mild steel griddle section powered by two 20MJ/hr griddle burners. Manufactured in New Zealand from 304 stainless steel, the unit delivers a total gas rating of 96MJ/hr (26.6kW) and is engineered to keep pace with the demands of busy restaurant, café, hotel, and institutional kitchen environments.

The open burner side features removable heavy-duty cast iron burners topped with forged brass caps, paired with vitreous enamel pot stands incorporating extended finger supports that provide stable, even heat for boiling, simmering, sautéing, and stockpot work. The 600mm griddle plate sits on the right-hand side as standard and is well suited to breakfast menus, burgers, steaks, eggs, and bacon. As part of the modular Evolution Series, the G516B-B integrates cleanly into complete commercial kitchen suites or sits on a workbench, refrigerated chef base, or equivalent support platform.

Key Benefits

• High output of 28MJ/hr per open burner accelerates boiling and sautéing tasks during peak service, reducing wait times at the pass.
• Flame failure protection on every burner automatically cuts gas if the flame is extinguished, improving kitchen safety without relying on manual checks.
• Push-button piezo ignition on the griddle section allows fast, reliable lighting without matches or a separate igniter, keeping prep time short.
• Extended finger supports on the enamelled pot stands reduce the risk of smaller pans tipping, improving safety and stability when multitasking across burners.
• A set of four adjustable stainless steel bench legs combined with two additional rollers makes levelling straightforward during installation and allows repositioning without fully dismantling the unit.
• The cast iron burner assemblies and their enamel-coated pot stands are fully removable, simplifying deep cleaning and routine maintenance to support kitchen hygiene standards.
• Heavy-duty reinforced control knobs with non-fade markings enable precise heat adjustment from high to low simmer, minimising knob replacement over the unit's service life.
• Compatible with Natural Gas and LPG, providing flexibility for sites with either gas supply without requiring different equipment.
• Modular Evolution Series design allows the G516B-B to pair with other 900mm series units, enabling a cohesive and space-efficient cooking suite layout.

Key Features

• Two-section layout: 2 x open burner cooktop on the left combined with a 600mm griddle plate on the right as standard
• 2 x 28MJ/hr heavy-duty cast iron open burners; each burner is fitted with a forged brass cap for consistent flame spread and a non-clogging design
• 2 x 20MJ/hr gas griddle burners powering the 600mm griddle section
• Total gas rating: 96MJ/hr (26.6kW)
• 600mm smooth mild steel griddle plate, 20mm thick, with machine-finished cooking surface
• Griddle cooking surface area: 595 x 530mm
• Thermostat temperature control: 90-300°C
• Push-button piezo ignition on the griddle section
• Flame failure protection fitted on all burners
• Burner assemblies and enamelled pot stands are fully removable; pot stands feature extended finger supports
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings
• 165mm rear splashback included
• Four adjustable stainless steel bench legs plus 2 additional rollers for levelling and repositioning
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Bench model configuration - no undershelf; suitable for placement on workbenches, chef bases, or modular suites
• R 3/4 (BSP) male gas connection
• Available in Natural Gas or LPG - gas type must be specified at time of ordering
• Freestanding / bench-mount installation type
• Manufactured in New Zealand
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 129
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
