Overview

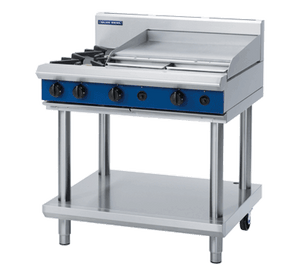

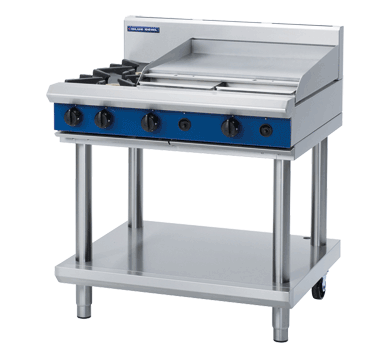

Blue Seal G516B-LS Evolution Series 900mm Gas Cooktop with 600mm Griddle – Leg Stand

The Blue Seal G516B-LS Evolution Series combines two high-output 28MJ/hr open burners with a 600mm smooth mild steel griddle powered by two 20MJ/hr burners, all mounted on a freestanding leg stand. Manufactured in New Zealand from 304 stainless steel, this 900mm unit delivers a total gas rating of 96MJ/hr (26.6kW), making it a serious workhorse for high-volume commercial kitchens that need both open-flame and griddle cooking on a single platform.

Designed for straightforward operation and lasting durability, the G516B-LS features cast iron burners with forged brass caps for consistent flame spread, vitreous enamel pot stands with extended finger supports for small-pan stability, and push-button piezo ignition on the griddle. Flame failure protection across all burners provides an essential safety layer during peak service, while adjustable feet, two integrated rollers, and a removable component design keep installation, repositioning, and daily cleaning practical for busy kitchen teams.

Key Benefits

• High total heat output of 96MJ/hr (26.6kW) across all four burners lets kitchen teams move through large volumes of service quickly without heat recovery delays.
• Two distinct cooking zones on a single 900mm footprint – open burners for sauce work and searing, griddle for proteins and eggs – reduce the need for additional equipment and free up valuable bench space.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, protecting staff and reducing gas wastage during busy, distraction-heavy service periods.
• Push-button piezo ignition on the griddle means fast, reliable startup without a separate lighter, keeping prep time to a minimum.
• Extended vitreous enamel pot stand fingers provide added stability when sliding smaller pans across the cooktop surface, reducing the risk of tip-overs.
• Adjustable feet combined with two additional rollers make levelling straightforward on uneven floors and allow the unit to be repositioned easily for cleaning or kitchen reconfiguration.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and allow individual components to be replaced without retiring the whole unit, lowering long-term maintenance costs.
• Heavy-duty reinforced control knobs with clear, non-fade markings allow precise heat adjustment from high to simmer and withstand constant use without requiring frequent replacement.
• Available in both natural gas and LPG configurations, giving operators flexibility to match their existing gas supply without modifications.

Key Features

• 2 x 28MJ/hr open burners with cast iron construction and forged brass caps for consistent, even flame spread
• 2 x 20MJ/hr griddle burners providing dedicated, controlled heat across the full griddle surface
• Total gas rating: 96MJ/hr (26.6kW)
• 600mm smooth mild steel griddle plate, 20mm thick, positioned on the right-hand side as standard
• Griddle cooking surface area: 595 x 530mm
• Push-button piezo ignition on the griddle burners
• Flame failure protection fitted to all four burners
• Removable heavy-duty cast iron burners for easy maintenance and replacement
• Vitreous enamel pot stands with extended finger supports to stabilise smaller cookware
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings
• Thermostat temperature control with a range of 90–300°C
• 304 stainless steel construction throughout for corrosion resistance and durability
• Freestanding leg stand configuration with adjustable feet and 2 integrated rollers for mobility and levelling
• 165mm splashback included; overall height including splashback is 1085mm
• Suite-matching undershelf included
• R 3/4 (BSP) male gas connection, compatible with natural gas or LPG
• Freestanding, free-standing installation type
• Manufactured in New Zealand
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
